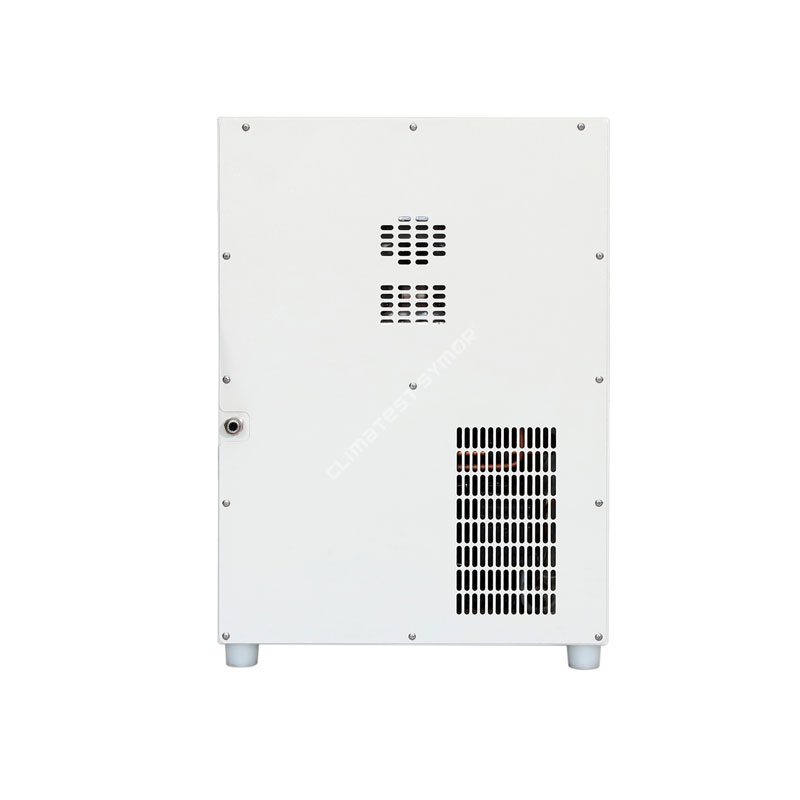

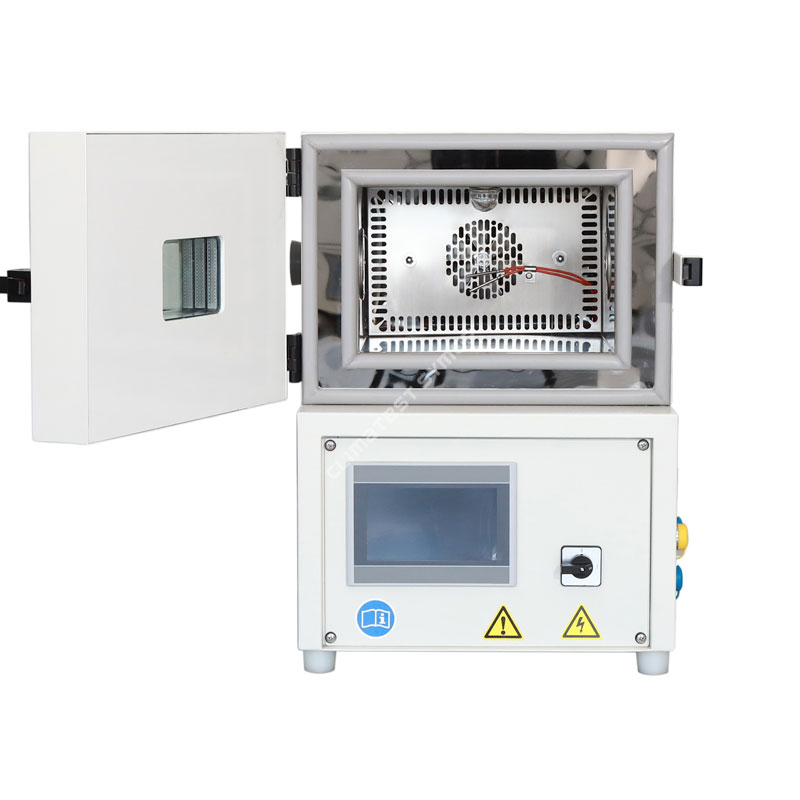

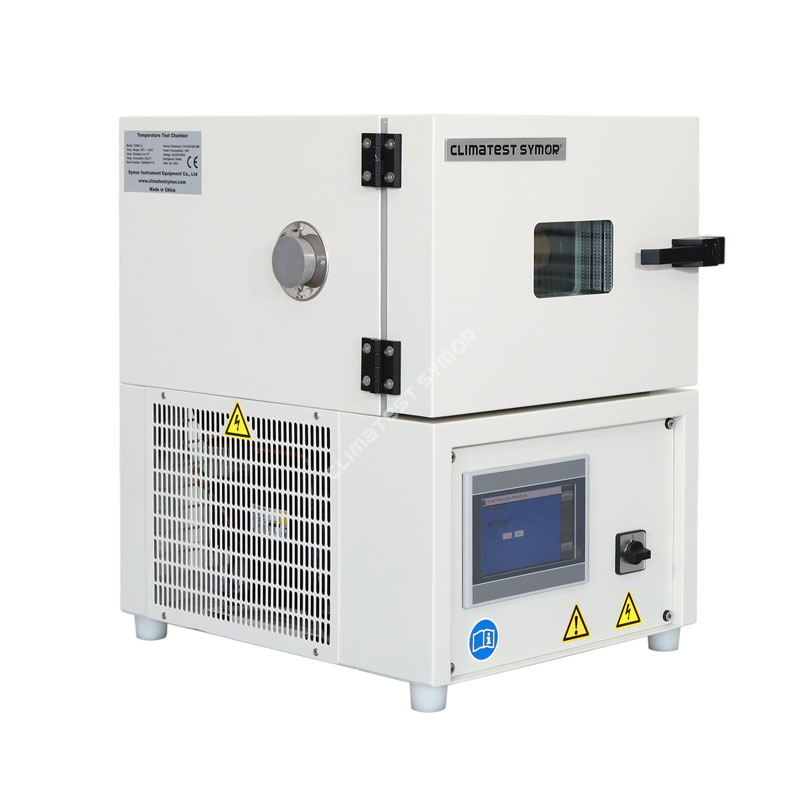

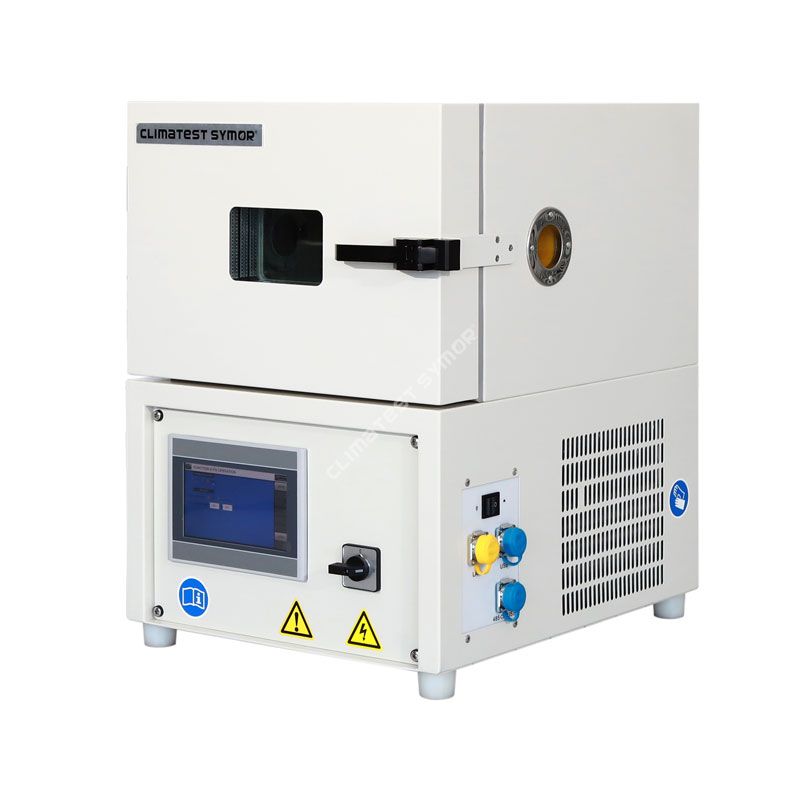

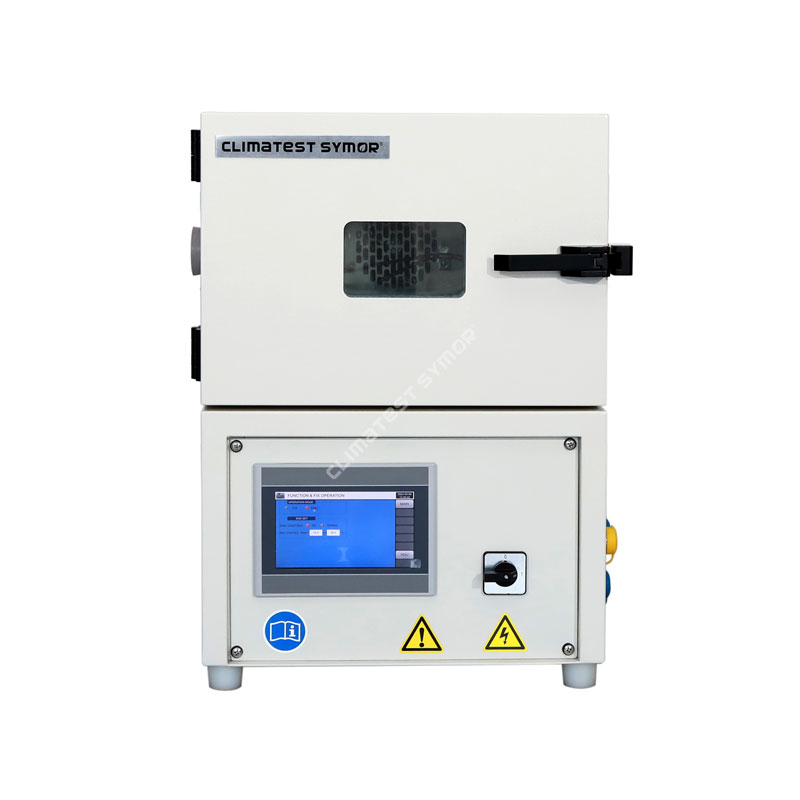

A temperature-controlled chamber, also called a benchtop thermal cycling chamber, or benchtop temperature test chamber, is designed to simulate full ranges of temperature conditions. The small footprint makes it optimal for testing small components and products on a benchtop in a laboratory. The temperature-controlled chamber provides accurate temperature control with PID function, and customers can perform temperature tests with a range of -40°C~+130°C.
Model: TGDW-22
Capacity: 22L
Shelf: 1pc
Color: Off-white
Interior dimension: 320×250×250 mm
Exterior dimension: 520×560×730 mm
Description
Climatest Symor® temperature controlled chamber comes in different sizes and temperatures, the chamber can evaluate physical changes of products under extreme temperature cycling environmental conditions, the temperature controlled chamber provides an ideal testing solution for small components, and available in sizes of 12L, 22L, and 36L.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 300×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤±1.0°C | ||
| Temperature Uniformity | ≤1.5°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤45 minutes (unload) | ||
| Interior Material | SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool/polyurethane foam | ||
| Controller | 7” Programmable touch screen controller | ||
| Circulation System | Low-noise, high-temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressors, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
·Independent temperature protector: An independent shutdown and alarm for thermal protection purpose.
·Refrigeration system: Over-heat, over-current and over-pressure protection of compressor.
·Test chamber: Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.
·Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.
Programmable controller
·7-inch programmable touch screen controller
·Set temperature point under fix value mode or programs mode
·Temperature set point and realtime temperature profile display
·Test data can be downloaded through RS485 interface
Features
·Working zone is made of SUS#304 brushed stainless steel
·Superipr door sealing made by reinforced silicone rubber, high temperature and aging resistant
·Uniform air circulation system inside working zone
·Original imported France "Tecumseh" refrigeration compressors
·25mm diameter lead hole locates at the right side
Benefits
·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited-space laboratory
·Over-temperature protection
·Programmable LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history curve display
·RS485 computer interface for data download
Application
As reliability testing equipment, the temperature controlled chamber simulates different temperatures to test materials’ performance against extreme climatic conditions. The benchtop thermal chamber applies to the below industries:
▸Electronic& Semiconductor Industry:
The inherent reliability of electronic components depends on the reliability design scheme. During the manufacturing process, due to fluctuations in human factors or raw materials, process parameters, and equipment conditions, the final product cannot all achieve the expected reliability. In each batch of finished products, there are always hidden defects, which manifest as early failure under certain stress conditions. The temperature controlled chamber is one of the screening equipments in early quality control process.
▸Automobile Industry:
In automobile industry, benchtop environmental chamber is the must-have environment testing equipments, products are like experiencing a "torture" through environmental testing, autoparts are tested rigorously, problems are noticed and initial product design plans are repeatedly revised to improve quality.
What temperature and humidity tests should be done on autoparts?
1) High temperature test
2) Low temperature test
3) Damp heat test
▸Plastics Manufacturing Industry:
Plastic products are affected by extreme temperature and damp environment. In addition, due to uncertain factors in the molding process, and the influence of environmental conditions after assembly, the fixed position of the insert nut inside the plastic enclosure will appear natural cracking and rupture phenomenon, these problems can not appear in short time, but it is accumulated to a certain extent, resulting in the function failures, hidden dangers, it brings bad use experience to users, to improve quality and competitiveness, manufacturers now pay more attention to the reliability testing of their products.
The temperature-controlled chambers help manufacturers quickly detect defects in plastic casings, collect reference data for them during the R&D stage, which improve production efficiency, and save costs.
In addition, temperature-controlled test chambers are used in communications, medicine, military, packaging, and other industries. The testing requirements are carried out by simulating natural and accelerated environments. The temperature-controlled test chamber is a commonly used machine for reliability testing. It can effectively detect the product's Performance changes under different environments and play a vital role in product development.
Do you have the problem of limit space in your laboratory?
Climatest Symor® temperature controlled chamber conducts high low temperature tests for small samples in the R&D stage, a temperature range of -40℃ to +150℃ makes it possible to test samples’ resistance against extreme temperature changes. The mini thermal chamber is designed to provide a compact unit for testing small products, the operation is environmental and quiet, temperature controlled chamber is the best seller in laboratories and research institutes.
Fix value setting and program setting
▸Fix value setting: 85°C
▸Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
What are advantages of Climatest Symor® temperature controlled chamber?
▸With independent intellectual property rights and design patents of climatic test chamber core technology.
▸The controller is easy-to-operate LCD programmable.
▸Accurate temperature control and uniformity.
▸The refrigeration system uses France original imported compressors.
▸Lighting system adopts high-temperature-aging resistant light beads, muti-layers of tempered glass on viewing window.
▸Equipped with multi-safety protection devices.
Packing
1: Wrap thin film onto the benchtop temperature chamber for waterproof and dustproof use.
2: Bind bubble foam on the temperature test chamber tightly, and then cover the machine with a big plastic bag.
3: Put the temperature test chamber into a reinforced plywood case with a pallet at the bottom.
This package is firm enough to withstand bumpy sea and railway transportation, and the product can be delivered to customers smoothly.
Shipment
The temperature controlled chamber is not suitable for air shipment, because there is refrigerant and compressor inside, currently the common shipment methods are as follow:
▸To Europe: By sea, China-EU railway
▸To North America/South America: By sea, Matson Clipper is limited to United States
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea
Climatest Symor® arranges booking service before shipment, and cooperate with customers under different incoterms, such as CIF/FOB//EXW/DAP; Climatest Symor® also provides door to door service (incoterm: DDP), that means we handle all export and import procedures, customers just need to sign for receipt.
Commonly asked Questions and Answers
Q: What is the warranty and support offered?
A: We provide one-year warranty and lifetime free technical support. Benchtop temperature-controlled chambers work stably and reliably and is not prone to failure except for human damage. If any part fails, we will ship it to you via FedEx/DHL within 24 hours, and we will also provide you with an installation video, as long as you can use a screwdriver, you can handle it.
Q: What are the power supply requirements?
A: The standard power supply of benchtop temperature-controlled chambers is 220V/230V, 50HZ, if you have other requirements, pls check with our sales staff. (sales@climatestsymor.com)
Q: How noisy is the chamber when it's working？
A: 65dB
Q: What is the delivery time?
A: 7 working days, we have stock for the standard benchtop temperature chambers.
Q: Are there any comments or recommendations from other users?
A: Yes, we have customers in European, USA and Southest Asia countries with good feedbacks.
