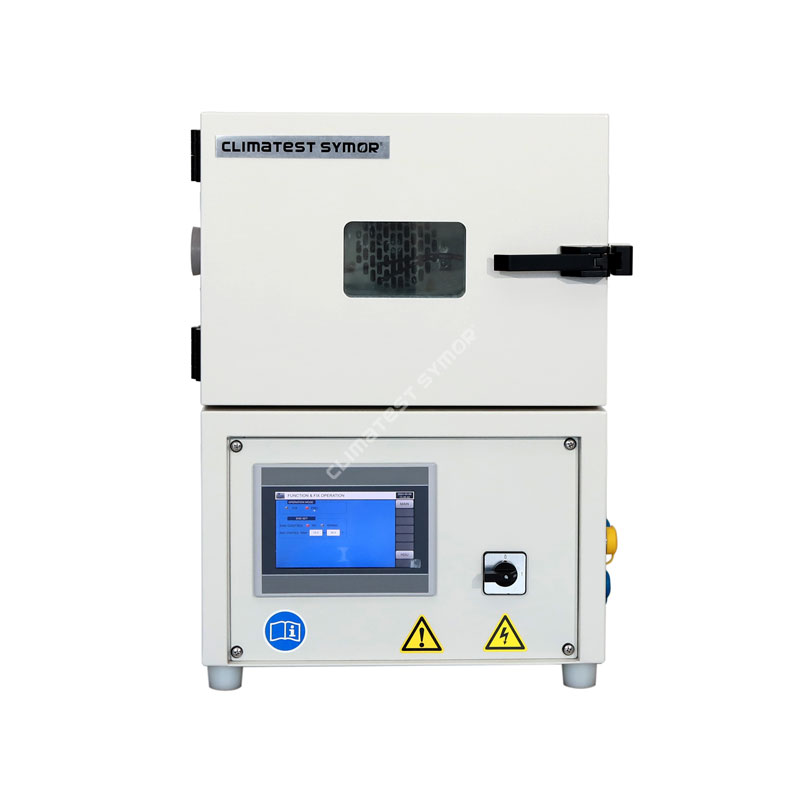

Climatest Symor® is a professional benchtop temperature chamber manufacturer in China. The benchtop temperature chamber works for the smaller specimens in a limited-space laboratory, and it offers the ideal conditions to test the resistance of specimens against high-low temperature changes and provides an optimal testing solution with a compact volume of 12L, 22L, and 36L. It combines the advantages of high durability with excellent working performance. The benchtop temperature chamber has become the best seller in laboratories and research institutes.
Model: TGDW-22
Capacity: 22L
Shelf: 1pc
Color: Off-white
Interior dimension: 320×250×250 mm
Exterior dimension: 520×560×730 mm
Description
Climatest Symor® is an outstanding benchtop temperature chamber manufacturer and supplier in China. This temperature test chamber is small enough to be placed on the table, and provides accurate, precise PID control of temperature values, with easy installation and convenient operation, and the user can perform temperature tests with a range of -40°C~+130°C.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 320×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤±1.0°C | ||
| Temperature Uniformity | ≤1.5°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤45 minutes (unload) | ||
| Interior Material | Anti-corrosion SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool / polyurethane foam | ||
| Controller | 7” Programmable touchscreen controller | ||
| Circulation System | Low-noise, high temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressor, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
· Independent temperature limiter
· Over-heat, over-current and over-pressure protection of compressor.
· Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.
· Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage, and overload protection
Key Features
▸Compact Design:
. Small Footprint: Designed to fit on laboratory benches, desks, or workstations.
. Portable: Lightweight and easy to move within the facility.
▸Temperature Control:
. Wide Temperature Range: Capable of maintaining temperatures from -40°C to 150°C
. Precision: High accuracy in maintaining set temperature conditions.
▸User-Friendly Interface:
. Digital Displays: Easy-to-read displays for monitoring temperature and other parameters.
. Programmable Controls: Intuitive controls for setting and adjusting temperature cycles and profiles.
▸Rapid Temperature Cycling:
. Fast Response Time: Ability to quickly reach and maintain desired temperatures, facilitating rapid thermal cycling tests.
▸Safety Features:
. Alarms and Alerts: Built-in alarms to notify users of temperature deviations.
. Overheat Protection: Mechanisms to prevent overheating and ensure sample safety
Benefits
·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited-space laboratory
·Over-temperature protection
·Programmable touchsceen LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history curve display
·RS485 computer interface for data download
Application
Climatest Symor® is a benchtop temperature chamber manufacturer. As a reliability test equipment for quality control engineering, this mini temp. chamber simulates high temperature, low temperature, temperature alternating conditions to test various products and materials’ performance to withstand extreme climate conditions, The small temperature chamber applies to below industries:
▸Electronic & Semiconductor Industry:
The benchtop temperature chamber can evaluate damages to insulation materials, sticking of contacts, performance changes, and adverse reactions of electronic components. Moreover, if semiconductor devices, such as integrated circuits, liquid crystals, and silicon wafers, are stored in a high humidity environment for a long time, the pads and chip pin surfaces easily oxidize and cause failures such as poor contact.
▸Plastics Industry:
Plastic enclosures and containers are everywhere in our usual life, including in household appliances, instrumentation, construction equipment, the automobile industry, daily hardware, and more, and to improve quality and competitiveness, manufacturers now pay more attention to the reliability testing of their plastic products.
Benchtop temperature chamber simulates high and low temperatures to help manufacturers detect defects in their plastic enclosures in a short time, and the chamber provides them with referential data collection during the R&D stage, greatly improving production efficiency and saving cost.
▸Automobile Industry:
Climatest Symor® is a benchtop temperature chamber supplier. In the automobile industry, products are like going through "torture" through environmental testing. The benchtop environmental chamber works to test automobile parts, find problems, repeatedly modify the initial product design scheme, constantly improve the product, and maximize the adaptation to the working environment in the life cycle.
Benchtop temperature chamber works in the Communication, Pharmaceutical, Military, and Packaging industries, with different testing requirements to provide reliable environment testing, it can efficiently detect performance changes in products in various environments, and play a vital role in the R&D stage.
How to set fix value and programs?
▸ Fix value setting: 85°C
▸ Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
Small specimens tested in benchtop temperature test chamber
Climatest Symor® benchtop temperature test chamber can conduct high-low temperature tests for small samples in the R&D stage. A temperature range of -70℃ to +180℃ makes it possible to test the resistance of samples against extreme temperature changes. Benchtop temperature test chambers provide a compact unit for testing small components to meet testing requirements, and the operation is environmental and quiet, and the benchtop thermal chamber is the best seller in laboratories with limited space.
What benefits can you get from the Climatest Symor® benchtop temperature chambers?
Benchtop temperature cycling chambers offer many advantages that make them an important tool for a variety of tests and research.
▸Better Quality Control: Maintaining precise temperature conditions ensures consistent quality control processes, essential for manufacturing industries to maintain product standards.
▸Enhanced Research Capabilities: Researchers can conduct detailed and accurate experiments, manipulating temperature with high precision to study specific effects on samples.
▸Increased Efficiency: Precise control reduces the time required to reach and stabilize at target temperatures, speeding up testing and research processes.
▸Cost-Effectiveness: Customers can get these small temp chamber at competitive prices, and make significant progress in their research. The test chamber is affordable and enables small labs and businesses to conduct advanced testing. It also consumes less energy and requires less maintenance, resulting in lower operating expenses.
Calibration
Each Climatest Symor® benchtop thermal chamber comes with a calibration certificate calibrated by SGS, an ISO17025 accredited laboratory. We strictly control the performance and quality of our desktop temperature test chambers. Our quality control tracks the entire process from production to commissioning. At the same time, we require the SGS laboratory to calibrate again before shipment to ensure that customers are satisfied with the machine and that it can be put into use immediately after receipt.
Packing
First: Wrap thin film onto the temperature test chamber for waterproof and dustproof use.
Second: Bind bubble foam on the temperature test chamber tightly, and then cover the machine with a big plastic bag.
Third: Put the temperature test chamber into a reinforced plywood case with a pallet at the bottom.
This package is firm enough to withstand bumpy sea and railway transportation, and the product can be delivered to customers smoothly.
Shipping
Benchtop temperature chambers are not suitable for air transport because they contain refrigerant and compressors. Here are the most common shipping methods:
▸To Europe: By sea, China-EU railway, China-EU truck
▸To North America/South America: By sea, Matson
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea
Climatest Symor® arranges booking, and cooperates with customers under different incoterms, such as CIF/FOB//EXW/DAP; Climatest Symor® also provides door-to-door service (incoterm: DDP), which means we handle all export and import procedures, customers just need to sign for receipt.
Commonly Asked Questions and Answers
Q: What are the power supply of the chamber?
A: The standard power supply is 220V/230V, 50HZ. If you have other requirements, please email our sales staff.
Q: What is the general delivery time?
A: The production cycle is seven working days.
Q: Does the chamber include humidity control?
A: No, if you need humidity control, pls contact our sales staff for temperature and humidity test chamber.
Q: What is the cost of a benchtop temperature test chamber?
A: Costs differ depending on the parameters, volumes, and destinations, pls contact our sales staff for a formal quotation by emailing sales@climatechambers.com.
