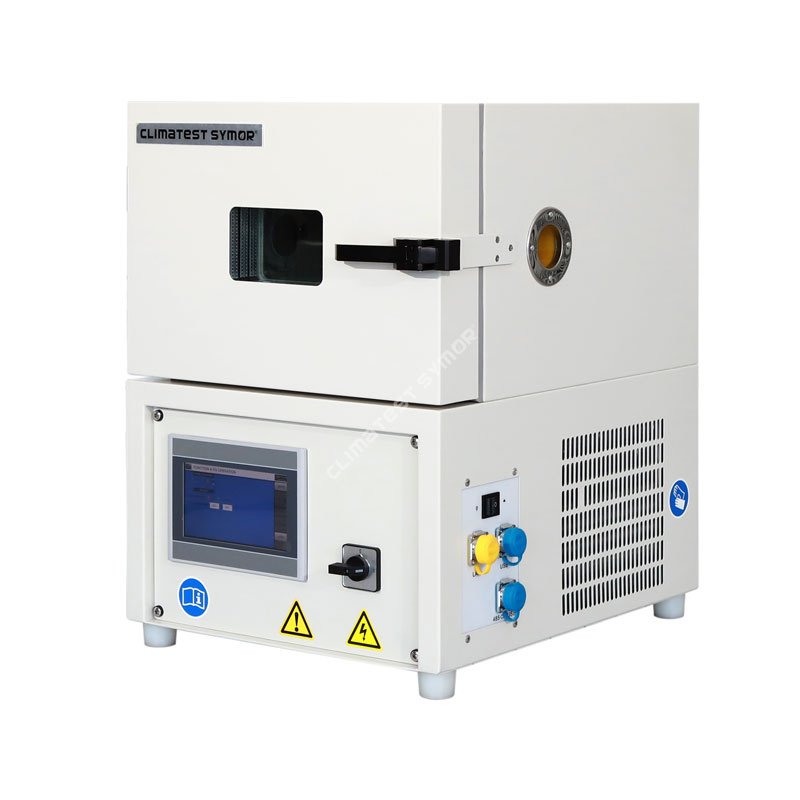

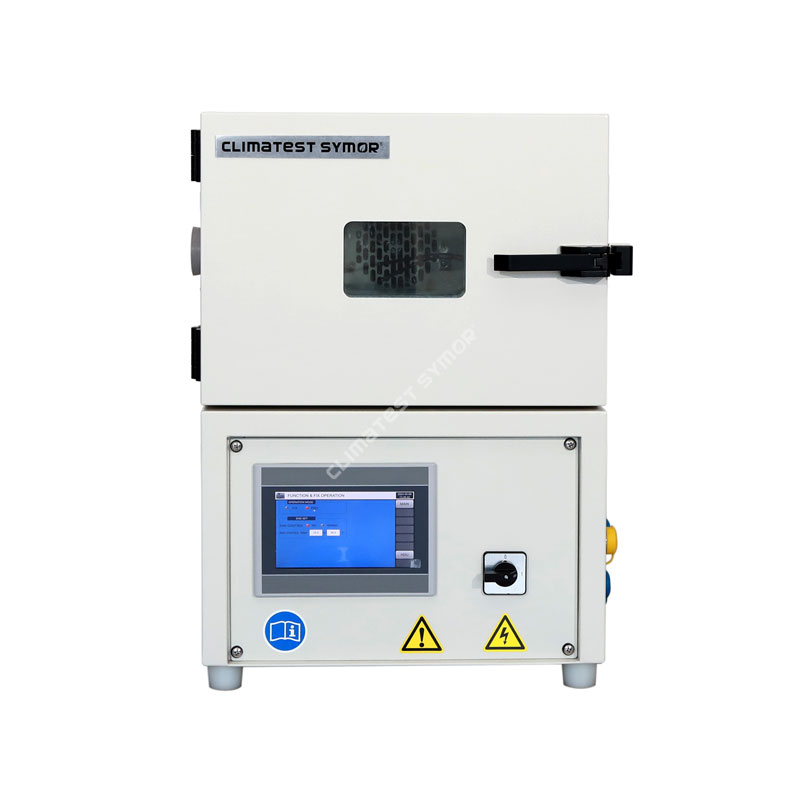

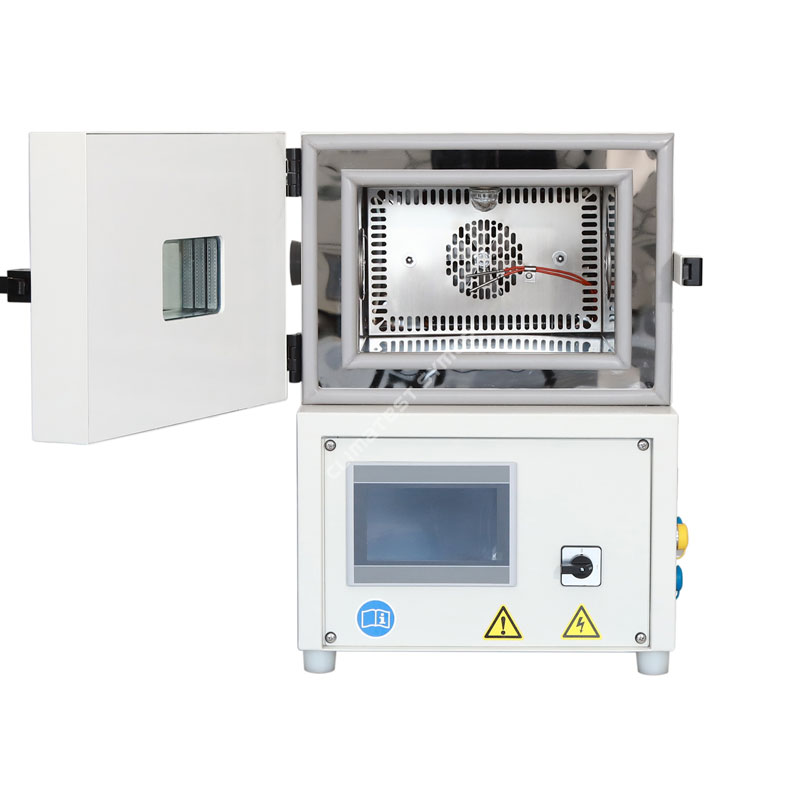

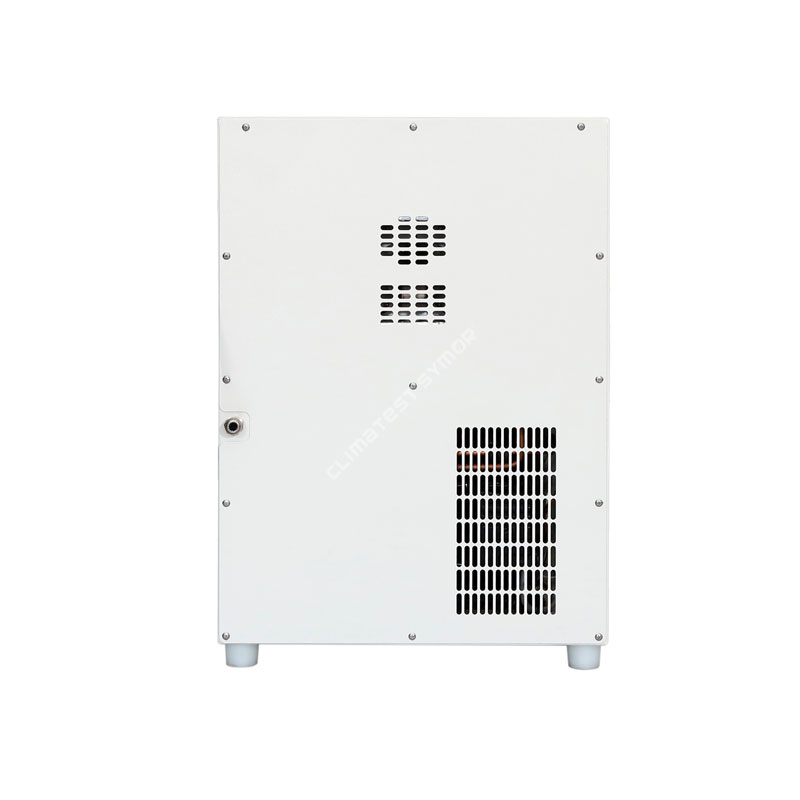

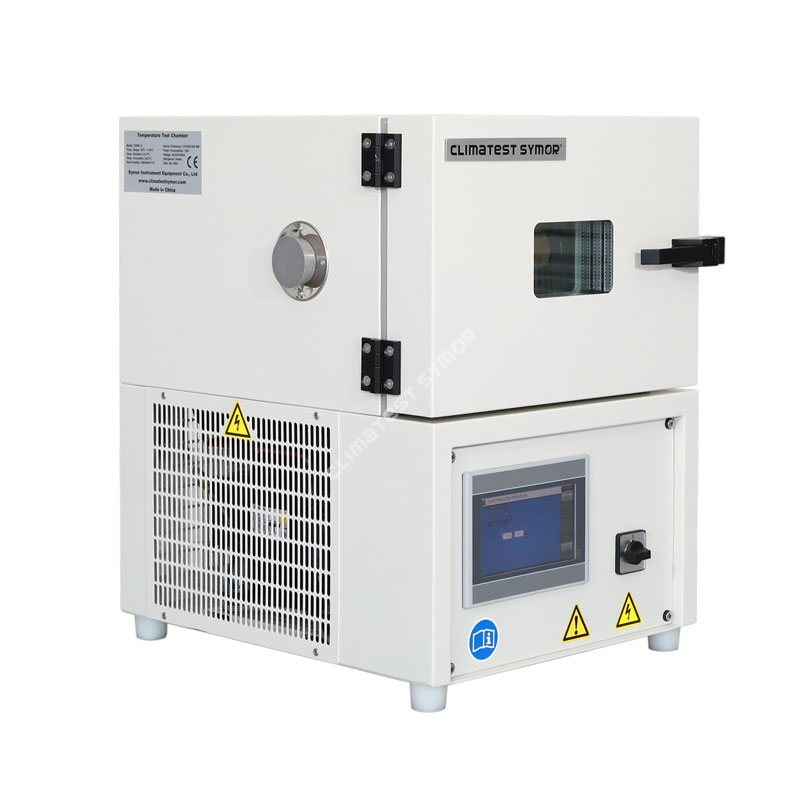

Small Temperature Chamber

Climatest Symor® small temperature chamber is a benchtop type for smaller specimens in a limited-space laboratory. The small temperature chamber offers the ideal conditions to test the resistance of specimens against extreme temperatures, and it provides an optimal testing solution with a compact volume of 12L, 22L, and 36L. The small temperature chamber has become the best seller in laboratories and research institutes.

Model: TGDW-12
Capacity: 12L
Shelf: 1pc
Color: Off-white
Interior dimension: 310×230×200 mm
Exterior dimension: 500×540×650 mm

Send Inquiry

Product Description

Description

Climatest Symor® small temperature chamber, often called a benchtop or compact temperature chamber, simulates various temperature conditions for testing purposes and is designed to fit on a benchtop or small work area, making it suitable for labs with limited space.


Specification

Model TGDW-12 TGDW-22 TGDW-36
Interior Dimension(W*D*H) 310×230×200 mm 320×250×250 mm 400×300×300 mm
Exterior Dimension(W*D*H) 500×540×650 mm 520×560×730 mm 640×730×970 mm
Temperature Range Model A :-20°C~+130°C    Model B: -40°C~+130°C
Temperature Fluctuation ≤±0.5°C
Temperature Bias ≤±1.0°C
Temperature Uniformity ≤1.5°C
Heating Rate +25℃~+130℃≤30 minutes (unload)
Cooling Rate +25℃~-40℃≤45 minutes (unload)
Interior Material SUS#304 brushed stainless steel
Exterior Material Reinforced Steel plate with electrostatic spraying
Insulation Superfine fiberglass wool/polyurethane foam
Controller 7” Programmable touchscreen controller
Circulation System Low-noise, high temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan
Heating System NiCr heater, independent system
Refrigeration System France "TECUMSEH" Refrigeration Compressors, air cooling
Power Supply AC110V/220V/AC230V·50HZ/60HZ

Safety protection:

· Independent temperature limiter

· Over-heat, over-current and over-pressure protection of compressor.

· Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.

· Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage, and overload protection


Features

▸Compact Size: Small footprint designed to fit on desktops or benchtops.

▸Temperature Range: Simulate temperatures ranging from -40°C to 150°C (-40°F to 302°F).

▸Programmable Controls: Programmable controls to set specific temperature profiles and test cycles.

▸Fast Temperature Change Rates: Capable of rapid temperature changes to simulate different environmental conditions.

▸Uniform Temperature Distribution: Ensures consistent temperature throughout the chamber for accurate testing results.


Benefits

·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited space laboratory
·Over-temperature limiter


·Programmable LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history profile display
·RS2485 computer interface for data download


Application

▸Electronics Testing:

. Component Testing: Stress testing of electronic components, such as semiconductors, circuit boards, and sensors, under various temperature conditions.

. Reliability Testing: Assessing the reliability and performance of electronic devices when exposed to temperature extremes.


▸Materials Testing:

. Thermal Expansion: Studying the thermal expansion and contraction properties of materials.

. Durability Testing: Evaluating the durability of materials and products under repeated temperature cycling.

▸Automotive Industry:

. Component Testing: Testing automotive components, such as sensors, and electronic components under extreme temperature conditions.

. Quality Control: Ensuring automotive parts meet industry standards for temperature tolerance.


▸Academic and Educational Use:

. Laboratory Experiments: Providing hands-on experience for students in controlling and monitoring temperature conditions for various experiments.

. Research Projects: Supporting academic research projects that require precise temperature control.


How to set fix value and programs?

▸Fix value setting: 85°C

▸Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.

What benefits will you get from a small temperature chamber?

▸Space Efficiency: Takes up less room than larger chambers, freeing up valuable workspace.

▸Portability: Lightweight allows for easy relocation to different sites.

▸Cost-Effectiveness: Consumes less energy and requires less maintenance, leading to lower operational expenses.

▸Precision and Control: Provides precise control over temperature ranges, ensuring reliable and consistent testing conditions.

▸User-Friendly Design: Simple controls and displays make it easy to set up and operate.


Calibration

Every Climatest Symor® small temperature chamber is equipped with a calibration certificate, calibrated by SGS, the ISO17025 certified lab. We strictly controls the performance and quality of the benchtop temperature test chambers. Our QC follows up the whole process from production to commissioning. At the same time, we invite SGS lab to calibrate again before shipping, this ensures our customers are satisfied after receiving the machine and can be put into use immediately.

The temperature uniformity is controlled within 1.5°C, bias is controlled within ±1.0°C, and the machine performs very well with low maintenance and operation costs.


Package of small temperature chambers

1. Wrap thin film onto the whole chamber for waterproof and dustproof purpose.

2. Bind bubble foam on temperature test chamber tightly, and then cover the machine with a big plastic bag.

3. Put it into a reinforced polywood case with pallet.

This package is firm enough to withstand bumpy sea and railway transportation, and ensure the product is delivered to customers smoothly.


Frequently Asked Questions and Answers

Q: How much does a small temperature chamber cost?

A: If you are interested in these benchtop chambers, and want to know the prices, please reach us via email at sales@climatechambers.com to get a formal quotation.


Q: What is the noise level during operation?

A: 65 dB.


Q: What is the warranty period, and what does it cover?

A: One year with lifetime free technical support, any issues within warranty period, we will settle it for free.


Q: What is the lead time for delivery?

A: 7 days for standard models, and pls check with us for customized models.


Q: How much does the chamber cost, and are there additional costs?

A: Prices differ depending on the parameters, volumes, and shipping address, pls contact our sales staff for a formal quotation by emailing sales@climatechambers.com.
