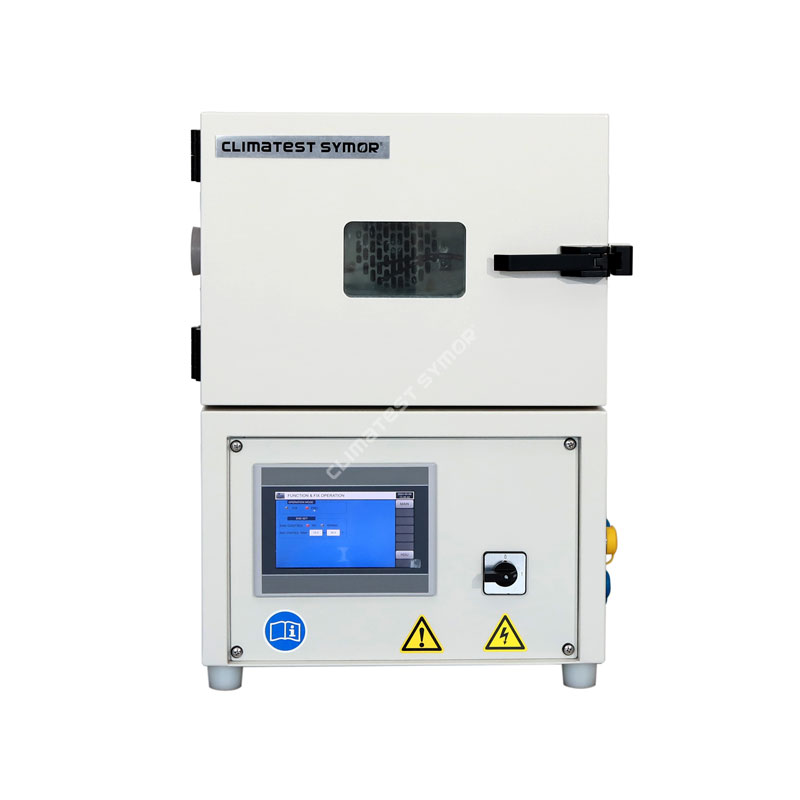

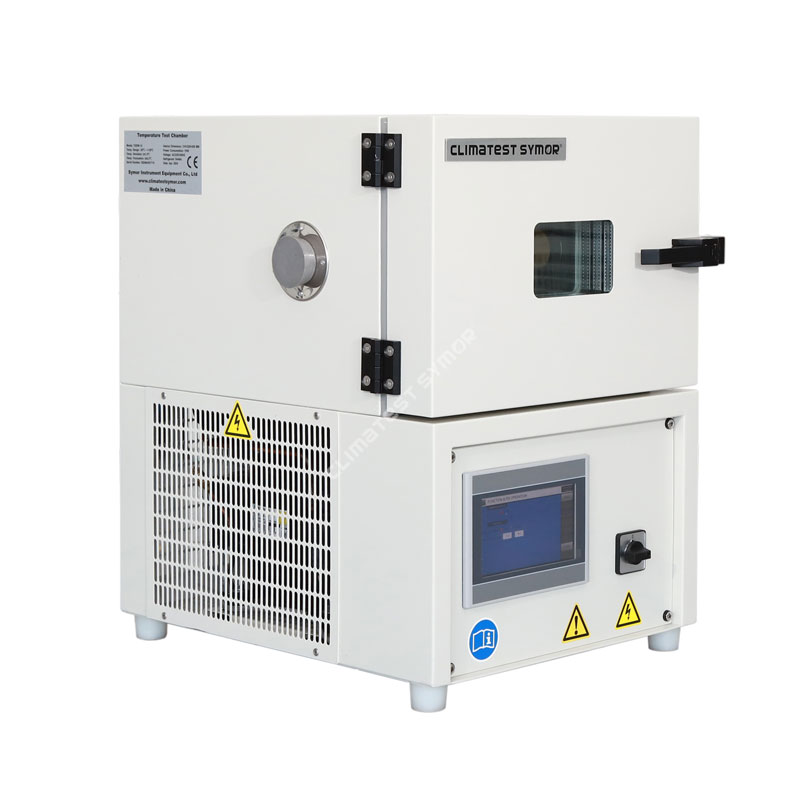

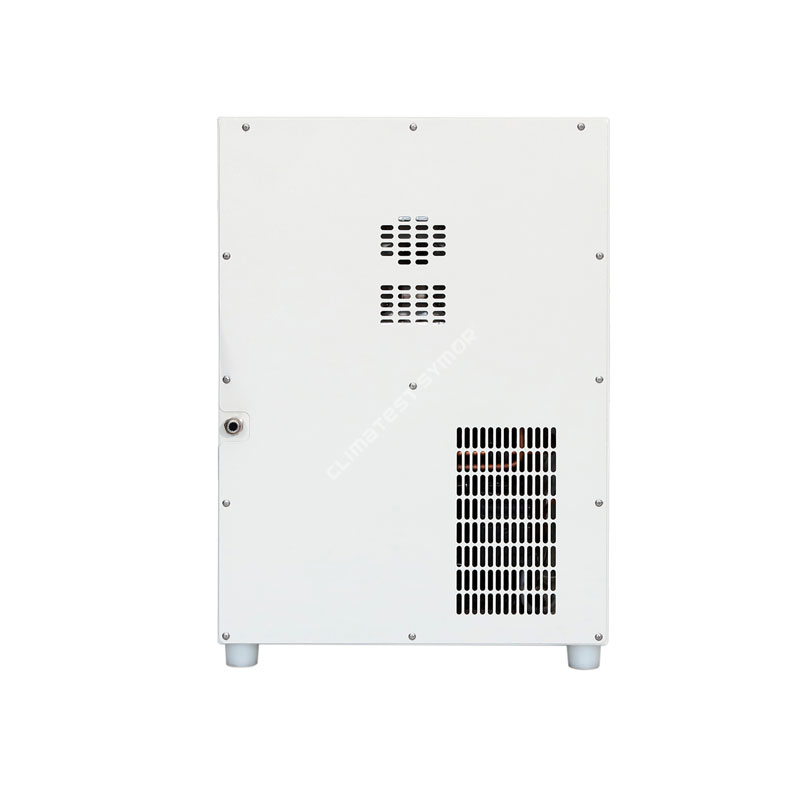

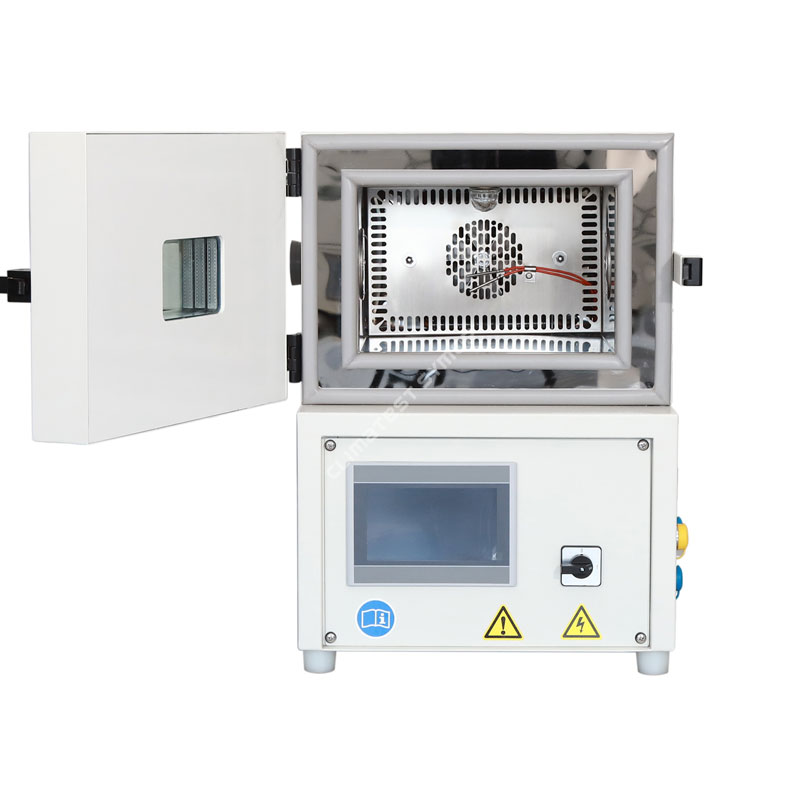

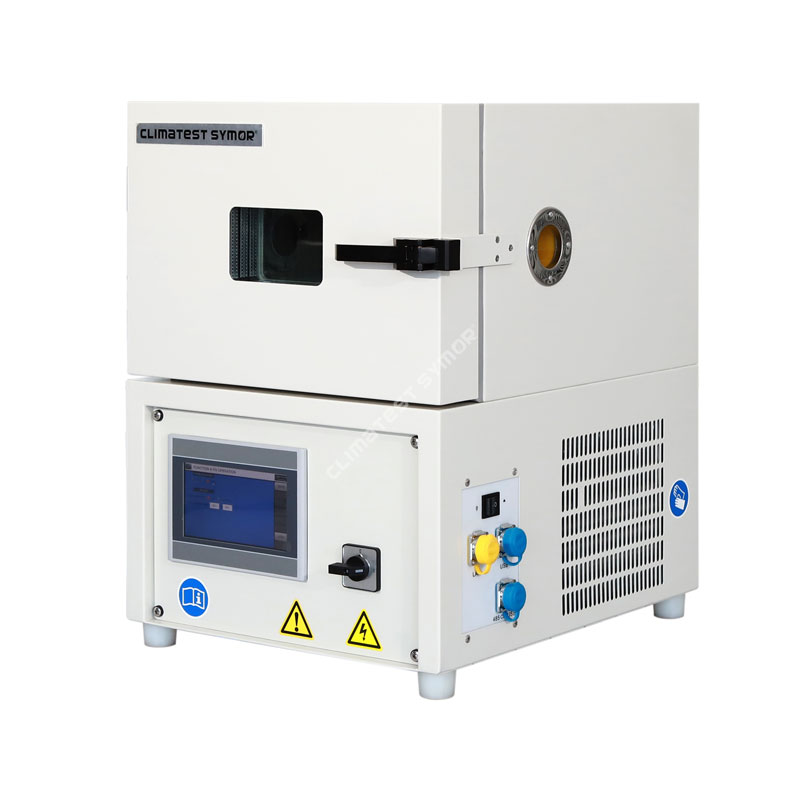

Climatest Symor® benchtop temperature chamber works as a desktop type for the mini specimens in a small laboratory. The benchtop temperature test chamber provides the ideal conditions to test the resistance of specimens against extreme temperatures, and it also provides an optimal testing solution with capacity of 12L, 22L, and 36L. Because of its high durability and super-good working performance, this benchtop temperature test chamber has become the best seller in laboratories and research institutes.
Model: TGDW-12
Capacity: 12L
Shelf: 1pc
Color: Off-white
Interior dimension: 310×230×200 mm
Exterior dimension: 500×540×650 mm
Description
Climatest Symor® is the benchtop temperature chamber manufacturer and supplier in China, the test chamber is a compact, tabletop-sized environmental chamber, designed for conducting temperature-related reliability tests in laboratories, it is small enough to be placed on the benchtop, and it provides accurate, precise PID control of temperature levels, with easy installation and convenient operation, the user can perform temperature tests with a range of -40°C~+130°C.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 320×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤±1.0°C | ||
| Temperature Uniformity | ≤±2.0°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤40 minutes (unload) | ||
| Interior Material | SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool/polyurethane foam | ||
| Controller | 7” Programmable touchscreen controller | ||
| Circulation System | Low-noise, high temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressor, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
· Independent temperature limiter
· Over-heat, over-current and over-pressure protection of compressor.
· Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.
· Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage, and overload protection
Programmable controller
▸ 7-inch programmable touchscreen controller
▸ Fixed value mode or program mode
▸ Real-time temperature profile display
▸ Test data can be downloaded through the RS485 interface
Features
▸Portable Design:
. Small Footprint: Designed to fit on laboratory benches, desks, or workstations.
. Small size: Lightweight and easy to move within the facility.
▸Temperature Control:
. Wide Temperature Range: Capable of maintaining temperatures from -40°C to 150°C
. Precision: High accuracy in maintaining set temperature conditions.
▸User-Friendly Interface:
. Digital Displays: Easy-to-read displays for monitoring temperature and other parameters.
. Programmable Controls: Intuitive controls for setting and adjusting temperature cycles and profiles.
▸Rapid Temperature Cycling:
. Fast Response Time: Ability to quickly reach and maintain desired temperatures, facilitating rapid thermal cycling tests.
▸Safety Features:
. Alarms and Alerts: Built-in alarms to notify users of temperature deviations.
. Overheat Protection: Mechanisms to prevent overheating and ensure sample safety
Benefits
·Easy installation
·Precise temperature control in a small chamber
·Desktop type designed for the limited-space laboratory
·Over-temperature limiter
·Programmable LCD controller
·Record history data
·Temperature & humidity real-time and history profile display
·RS485 computer interface for data download
Application
As a reliability test equipment for quality control engineering, the benchtop temperature chamber simulates high temperature, low temperature, and temperature alternating environments to test various products and materials’ performance to withstand continuous harsh climate conditions, the benchtop temperature chamber applies to industries:
▸Electronic& Semiconductor Industry:
The benchtop temperature chamber can evaluate damages to insulation materials, sticking of contacts, performance changes, and adverse reactions of electronic components. Moreover, if semiconductor devices, such as integrated circuits, liquid crystals, and silicon wafers, are stored in a high-humidity environment for a long time, the pads and chip pin surfaces easily oxidize and cause failures such as poor contact.
▸Plastics Industry:
Plastic enclosures and containers are everywhere in normal life, including household appliances, instrumentation, construction equipment, the automobile industry, daily hardware, and more. Plastic products have increased rapidly in recent years, and to improve quality and competitiveness, manufacturers now pay more attention to the reliability testing of their plastic products.
Benchtop temperature chamber simulates high and low-temperature environments to help manufacturers detect defects in their plastic enclosure in a short time, and it provides them with useful data collection during the R&D stage, greatly improving production efficiency and saving cost.
▸Automobile Industry:
In the automobile industry, a benchtop temperature test chamber is one of the most crucial environment testing equipment, products are like going through a "torture" through environmental testing, automobile parts are tested, problems are explored and initial product design plans are repeatedly revised, to continuously improve products, to achieve maximum adaptation to the working environment during the entire life cycle.
The benchtop temperature chamber is used in the Communication, Pharmaceutical, Military, and Packaging industries, and with different testing requirements, it can efficiently detect the performance changes of products in various environments and plays a vital role in the product research and development stage.
How to set fix value and programs?
▸ Fix value setting: 85°C
▸ Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
Small specimens for TEMPERATURE reliability tests
Climatest Symor® benchtop temperature chamber price is very competitive, this chamber can conduct high low-temperature tests for small samples in the R&D stage, and a temperature range of -70℃ to +180℃ makes it possible to test the resistance of samples against extreme temperature changes. Benchtop temperature test chamber is designed with a compact unit to test small components and to meet various testing needs, the operation is environmental and quiet, benchtop temperature chamber is the best seller in laboratories with limited space.
What are the advantages of Climatest Symor® benchtop temperature chambers?
Benchtop temperature chambers offer many advantages that make them an important tool for various tests and research.
▸Cost-Effectiveness: Customers can get these mini temp chambers at competitive prices and make significant progress in their research. The test chamber is affordable and enables small labs and businesses to conduct advanced testing. It also consumes less energy and requires less maintenance, resulting in lower operating expenses.
▸Precision and control: Provides precise control over a wide range of temperatures, which helps customers collect more accurate data and improve experimental efficiency.
▸Reliable performance: Stable and repeatable test conditions are critical for product testing, which helps reproduce experiments and validate scientific research results.
▸Better quality control: With many customers demanding strict compliance with regulatory standards, the laboratory ensures consistent quality control processes and enhances their research capabilities.
Calibration
Each Climatest Symor® benchtop temperature chamber comes with a calibration certificate calibrated by SGS, an ISO17025 accredited laboratory. We strictly control the performance and quality of our desktop temperature test chambers. Our quality control tracks the entire process from production to commissioning. At the same time, we require the SGS laboratory to calibrate again before shipment to ensure that customers are satisfied with the machine and that it can be put into use immediately after receipt.
Packing
1: Wrap a film on the temperature test chamber to make it waterproof and dustproof.
2: Tie the bubble foam tightly to the temperature test chamber, and then cover the machine with a large plastic bag.
3: Place the temperature test box into a reinforced plywood box with a tray at the bottom.
This packaging is strong enough to withstand bumpy sea and rail transportation, and the products can be delivered to customers smoothly.
Shipping
Benchtop temperature chambers are not suitable for air transport, because they contain refrigerant and compressors. Here are the most common shipping methods:
▸To Europe: By sea, China-EU railway, China-EU truck
▸To North America/South America: By sea, Matson
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea
Climatest Symor® arranges booking, and cooperates with customers under different incoterms, such as CIF/FOB//EXW/DAP; Climatest Symor® also provides door-to-door service (incoterm: DDP), which means we handle all export and import procedures, customers just need to sign for receipt.
Commonly Asked Questions and Answers
Q: How to maintain the temperature test chamber benchtop?
A: The chamber is low maintenance, regular maintenance includes cleaning the working area after each test, and turning off the power if left idle for an extended period of time, see our user manual for details.
Q: How noisy is the chamber during operation?
A: 65dB.
Q: What is the general delivery time?
A: The production cycle is seven working days.
Q: What type of control system does the chamber use?
A: A user-friendly control system with an intuitive interface can enhance usability. Features to look for include programmable settings, touchscreens, and data logging.
