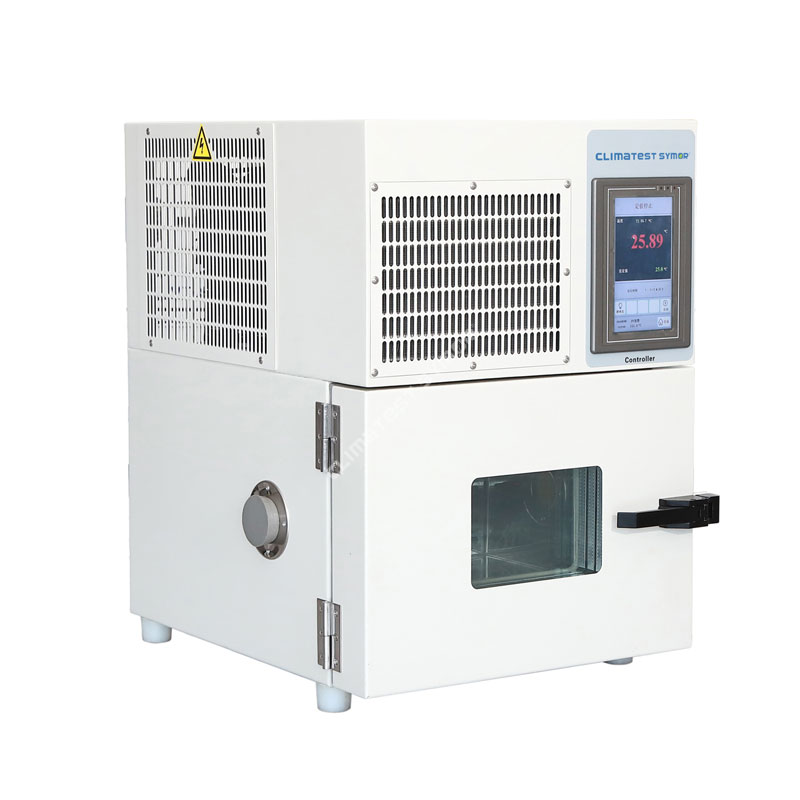

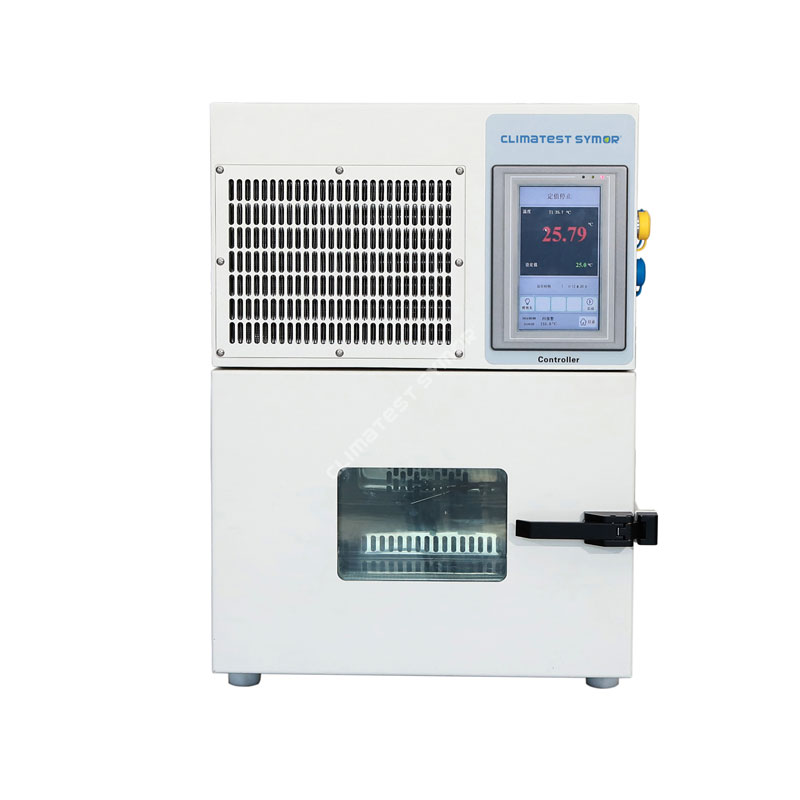

Climatest Symor® temperature chamber benchtop works for the smaller specimen in a limited-space laboratory. This mini temperature test chamber offers the ideal climatic conditions to test specimens' performance against extreme temperatures, and it provides an optimal testing solution with a 16L compact volume. Combining long durability with excellent performance, the benchtop-type temperature test chamber has become the best seller in laboratories and research institutes.
Model: TGDW-107C
Capacity: 16L
Shelf: 1pc
Color: Off-white
Interior dimension: 320×250×200 mm
Exterior dimension: 520×560×660 mm
Description
Climatest Symor® is a Chinese temperature chamber benchtop manufacturer and supplier. The test chamber is a compact, desktop-sized environmental chamber designed for temperature-related reliability testing in the laboratory. It is small enough to be placed on the desktop and provides accurate and precise temperature level PID control. It is simple to install and easy to operate. Users can conduct temperature tests within the range of -40℃~+130℃.
Specification
| Model | TGDW-107C |
| Interior Dimension(W*D*H) | 320×250×200 mm |
| Exterior Dimension(W*D*H) | 520×560×660 mm |
| Temperature Range | -40℃～150℃ |
| Temperature Fluctuation | ≤±0.5°C |
| Temperature Bias | ≤±1.0°C |
| Temperature Uniformity | ≤1.5°C |
| Heating Rate | +25℃～+130℃≤30 minutes(unload) |
| Cooling Rate | +25℃～-40℃≤45 minutes(unload) |
| Interior Material | Anti-corrosion SUS#304 brushed stainless steel |
| Exterior Material | Reinforced Steel plate with electrostatic spraying |
| Insulation | Superfine fiberglass wool/polyurethane foam |
| Controller | 7” Programmable touchscreen controller |
| Circulation System | Low-noise, high-temperature resistant motors, long axis, and stainless steel multi-leaf type centrifuge fan |
| Heating System | NiCr heater, independent system |
| Refrigeration System | France "TECUMSEH" Refrigeration Compressors, air cooling |
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ |
Safety protection:
·Over-temperature protection: An independent shutdown and alarm for thermal protection usage during the test.
·Refrigeration system: Over-heat, over-current, and over-pressure protection of compressor.
·Test chamber: Over-temperature protection, over-heat of fan and motor, phase failure/reverse, and timing.
·Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.
Programmable controller:
▸7-inch programmable touchscreen controller
▸Fixed value mode or program mode settings
▸Temperature set point and real-time temperature profile display
▸Test data can be downloaded through the RS485 interface
Features

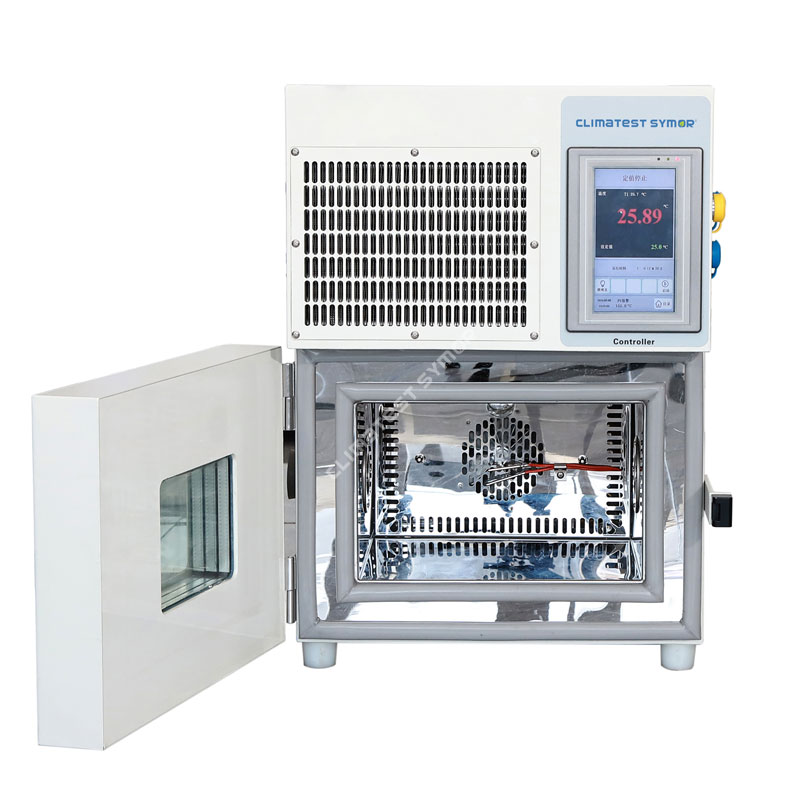

▸The working zone is made of SUS#304 brushed stainless steel
▸Superipr door sealing made of reinforced silicone rubber, high temperature resistant and aging resistant
▸Uniform air circulation system inside the working zone
▸Original imported France "Tecumseh" refrigeration compressors

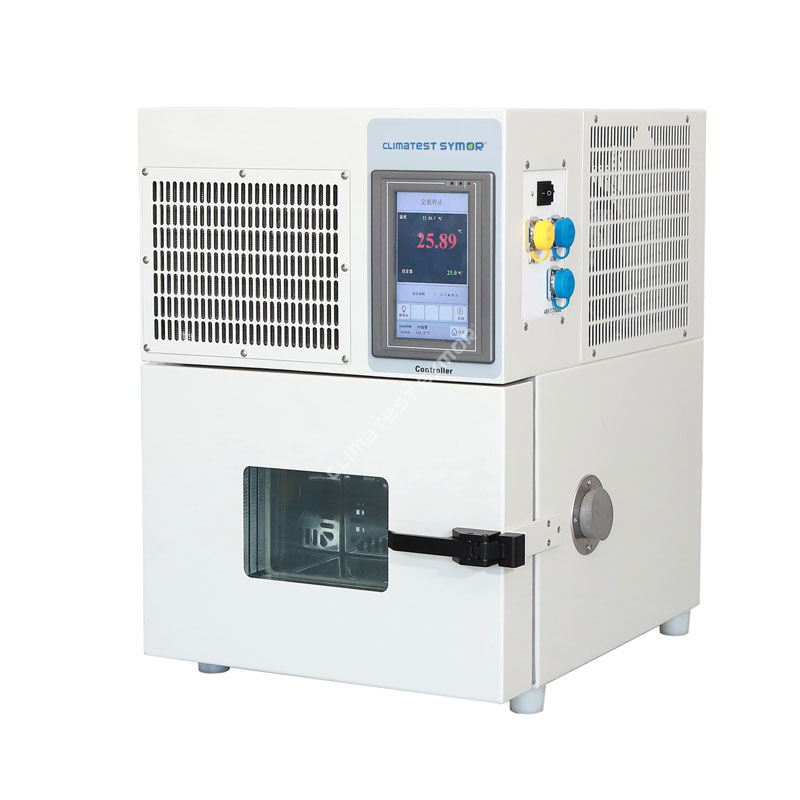

▸25mm diameter cable port locates at the right side
Benefits
·Easy installation
·Precise temperature control in a small chamber
·Desktop type designed for the limited-space laboratory
·Over-temperature protection
·Programmable LCD controller
·Record history data
·Temperature & humidity real-time and history profile display
·RS485 computer interface for data download
Application
As a reliability test equipment for quality control engineering, the temperature chamber benchtop simulates high and low temperature environments to test various products and materials’ performance to withstand continuous harsh climate conditions, the temperature chamber benchtop applies to industries:
▸Electronic& Semiconductor Industry:
The temperature chamber benchtop can evaluate insulation damage, contact sticking, performance changes, and adverse reactions of electronic components. Moreover, if semiconductor devices such as integrated circuits, liquid crystals, and silicon wafers are stored in a high-humidity environment for a long time, the surfaces of the pads and chip pins are easily oxidized, causing faults such as poor contact.
▸Plastics Industry:
Plastic enclosures and containers are everywhere in normal life, including household appliances, instrumentation, construction equipment, the automobile industry, daily hardware, and more. Plastic products have increased rapidly in recent years, and to improve quality and competitiveness, manufacturers now pay more attention to the reliability testing of their plastic products. The temperature chamber benchtop simulates high and low-temperature environments to help manufacturers detect defects in their plastic enclosure in a short time, and it provides them with useful data collection during the R&D stage, greatly improving production efficiency and saving cost.
▸Automobile Industry:
In the automobile industry, a temperature test chamber benchtop is one of the most crucial environment testing equipment, products are like going through a "torture" through environmental testing, automobile parts are tested, problems are explored and initial product design plans are repeatedly revised, to continuously improve products, to achieve maximum adaptation to the working environment during the entire life cycle.
The temperature chamber benchtop is used in the Communication, Pharmaceutical, Military, and Packaging industries, and with different testing requirements, it can efficiently detect the performance changes of products in various environments and plays a vital role in the product research and development stage.
How to set fix value and programs?
▸ Fix value setting: 85°C
▸ Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
Small specimens for TEMPERATURE reliability tests
Climatest Symor® temperature chamber benchtop price is very competitive, this chamber can conduct high low-temperature tests for small samples in the R&D stage, and a temperature range of -70℃ to +180℃ makes it possible to test the resistance of samples against extreme temperature changes. Benchtop temperature test chamber is designed with a compact unit to test small components and to meet various testing needs, the operation is environmental and quiet, benchtop temperature chamber is the best seller in laboratories with limited space.
What are the advantages of Climatest Symor® temperature chamber benchtop?
▸With independent intellectual property rights and design patents of environmental test chamber technology.
▸Provides accurate and consistent temperature control and uniformity, crucial for reliable test results.
▸Built with high-quality materials and components, ensuring long-term durability and consistent performance.
▸Designed to fit on a benchtop, these chambers are ideal for laboratories and facilities with limited space.
▸The chambers undergo rigorous quality control throughout the entire production and commissioning process, ensuring consistent performance and reliability.
Each Climatest Symor® desktop temperature test chamber comes with a calibration certificate from SGS, an ISO 17025 accredited laboratory, ensuring high precision and reliability. so that our customers can use the machine immediately upon receipt.
Packing
Step 1: Wrap thin film onto the temperature chamber benchtop for waterproof and dustproof use.
Step 2: Bind bubble foam on the temperature test chamber tightly, and then cover the machine with a big plastic bag.
Step 3: Put the temperature test chamber into a reinforced plywood case with a pallet at the bottom.
This package is firm enough to withstand bumpy sea and railway transportation, and the product can be delivered to customers smoothly.
Shipping
The temperature test chamber benchtop doesn’t suit air shipment, because there is a refrigerant and compressor inside, and the following is the most common shipment method:
▸To Europe: By sea, China-EU railway, China-EU truck
▸To North America/South America: By sea, Matson
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea
Climatest Symor® arranges booking, and cooperates with customers under different incoterms, such as CIF/FOB/EXW/DAP; Climatest Symor® also provides door-to-door service (incoterm: DDP), which means we handle all export and import procedures, customers just need to sign for receipt.
Commonly Asked Questions and Answers
Q: What is the warranty and support offered?
A: We provide a year warranty with lifetime free technical support, benchtop temperature test chambers work stably and reliably, and it's hard to malfunction except for artificial damage. In case any parts fail, we will ship to you within 24 hours by FedEx/DHL, and we will also provide you with the installation video, as long as you know how to use a screwdriver, you can handle it.
Q: What are the power requirements?
A: The standard power supply of the benchtop temperature chamber is 220V/230V, 50HZ, and if you have other requirements, pls check with our salesman. (Email: sales@climatestsymor.com)
Q: How noisy is the chamber during operation?
A: 65dB
Q: What is the lead time for delivery?
A: 7 working days, we have stock for the standard temperature chambers benchtop.
