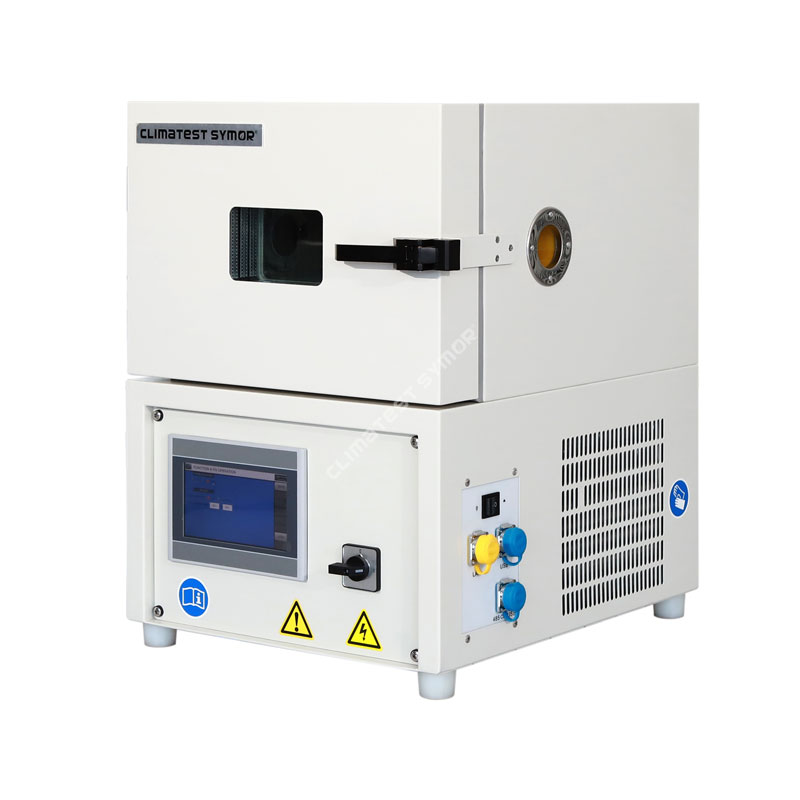

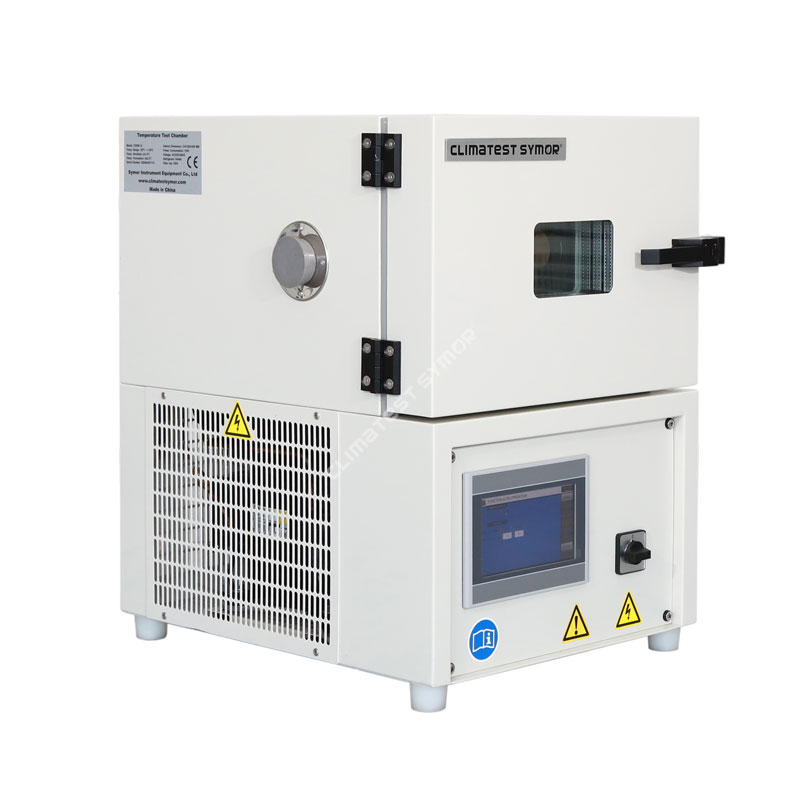

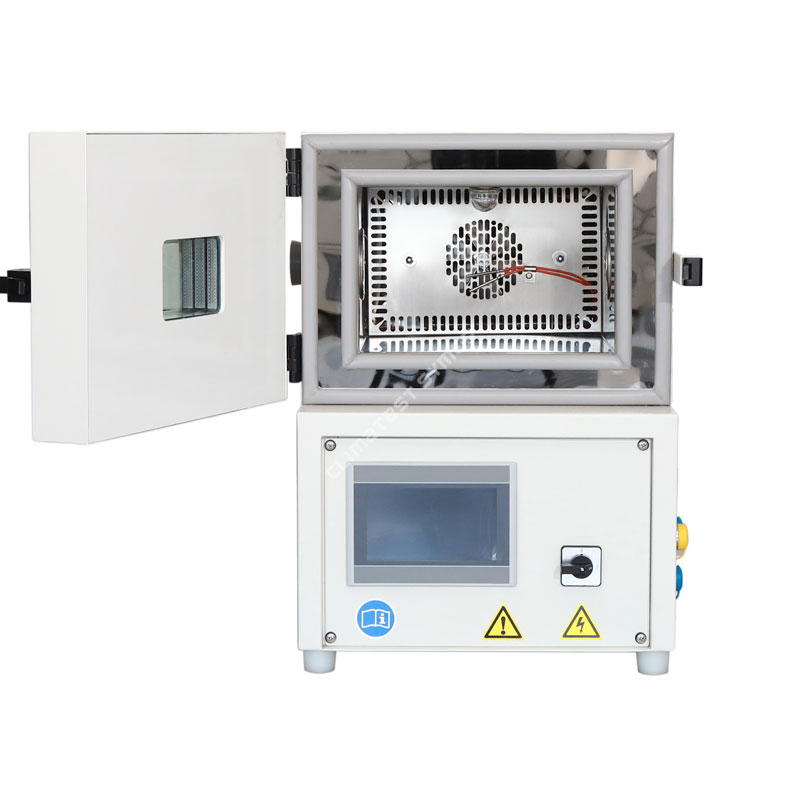

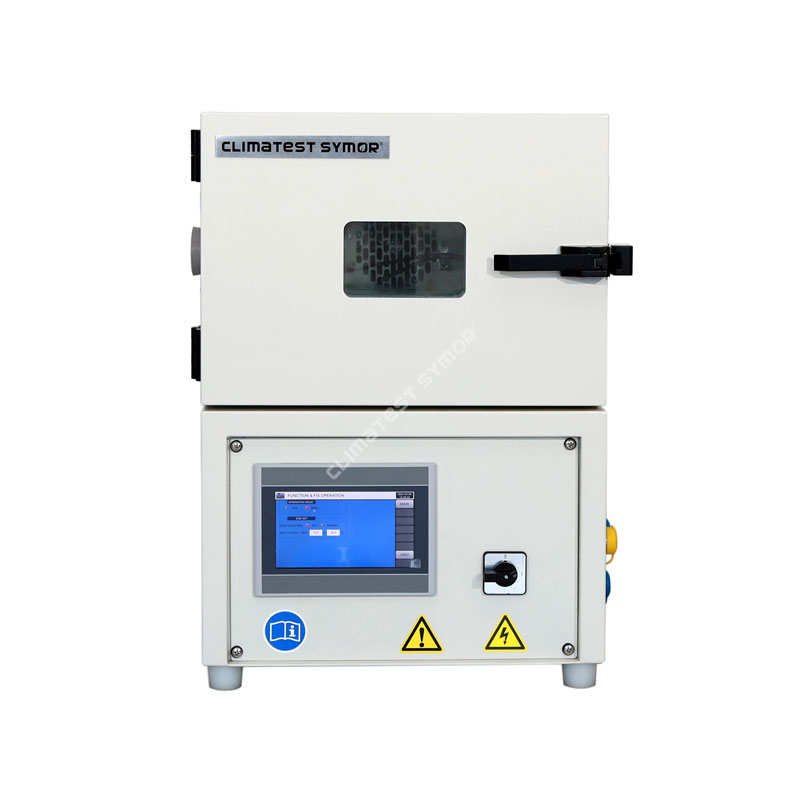

A small temperature controlled chamber, also called a benchtop thermal chamber, or benchtop temperature chamber, is designed to simulate full ranges of temperature conditions. The small footprint makes it optimal for testing small components and products on a benchtop. The small temperature-controlled chamber provides accurate temperature control with PID function. Customers can perform temperature tests with a range of -40°C~+130°C.
Model: TGDW-36
Capacity: 36L
Shelf: 1pc
Color: Off-white
Interior dimension: 400×300×300 mm
Exterior dimension: 640×730×970 mm
Description
Climatest Symor® small temperature controlled chamber is designed to provide precise and stable thermal environments for a variety of applications in research, quality control, and industrial processes. These chambers are compact, making them ideal for laboratories with limited space while still offering the necessary features for accurate temperature regulation.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 320×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤±1.0°C | ||
| Temperature Uniformity | ≤1.5°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤45 minutes (unload) | ||
| Interior Material | SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool/polyurethane foam | ||
| Controller | 7” Programmable touchscreen controller | ||
| Circulation System | Low-noise, high-temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressors, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
·Independent temperature limiter
· Over-heat, over-current and over-pressure protection of compressor.
· Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.
· Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage and overload protection.
Key Features
▸Compact Size: Designed to fit on laboratory benches or small workspaces.
▸Temperature Range: From -40°C to +150°C, with some models offering even broader ranges.
▸Precision and Stability: High precision temperature control with stability often within ±0.1°C or better.
▸Uniformity: Even temperature distribution throughout the chamber.
▸Programmability: Advanced programmable controllers for setting and automating temperature profiles, including ramps, soaks, and cycles.
▸Construction: Typically made from robust and durable materials, such as stainless steel, to ensure longevity and reliability, well-insulated to maintain temperature stability and energy efficiency.
Programmable controller
· 7-inch programmable touchscreen controller
· Temperature settings under fix value mode or programs mode
· Set point and realtime temperature profile display
· Test data can be downloaded through RS485 interface
Benefits
·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited space laboratory
·Over-temperature limiter
·Programmable LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history curve display
·RS485 computer interface for data download
Application
▸Material Testing: Evaluating the thermal properties and durability of materials under various temperature conditions.
▸Electronics Testing: Stress testing of electronic components and circuits to ensure reliability in different thermal environments.
▸Industrial Quality Control: Ensuring products can withstand specified temperature ranges during transportation and use.
▸Environmental Testing: Simulating real-world environmental conditions for product testing and validation.
Do you have the problem of limit space in your laboratory?
Climatest Symor® small temperature controlled chamber is able to conduct high low temperature tests for small samples in early R&D stage, a temperature range of -70℃ to +180℃ makes it possible to test samples’ resistance against extreme temperature changes. small temperature controlled chamber is designed to provide users with a compact unit for testing small components and products, and to meet various testing needs, the operation is environmental and quiet, small temperature controlled chamber is the best seller in laboratories with limited space.
How to set fix value and programs?
▸Fix value setting: 85°C
▸Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
Why choose Climatest Symor® small temperature controlled chamber?
Choosing a Climatest Symor® small temperature-controlled chamber offers several compelling advantages for laboratories, research facilities：
▸Compact and Space-Efficient Design
▸Wide Temperature Range
▸High Precision and Stability
▸Uniform Temperature Distribution
▸User-Friendly Interface
▸Cost-Effectiveness
Packing
Step 1: Wrap thin film onto the whole temperature test chamber for waterproof and dustproof purpose.
Step 2: Bind bubble foam on temperature test chamber tightly, and then cover the machine with a big plastic bag.
Step 3: Put temperature test chamber into a reinforced polywood case with pallet at bottom.
This package is firm enough to withstand bumpy sea and railway transportation, and ensure the product is delivered to customers smoothly.
Shipment
Here are the common shipment methods:
▸To Europe: By sea, China-EU railway, China-EU truck
▸To North America/South America: By sea, Matson
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea
Climatest Symor® arranges booking service, and cooperate with customers under different incoterms, such as CIF/FOB//EXW/DAP; Climatest Symor® also provides door-to-door service (DDP), that means we handle all export and import procedures, customers just need to sign for receipt.
Commonly Asked Questions and Answers
Q: What is the price of the desktop temperature test chamber?
A: If you are interested in our chambers, and wanna get a quotation, kindly advise your shipping address first, we can quote you a door-to-door price, and kindly contact our sales staff for a formal quotation.
Q: How noisy is the chamber during operation?
A: 65dB.
Q: What are the power requirements for the chamber?
A: The standard power is 220V/230V, 50HZ, and if you have other requirements, pls check with our salesman.
Q: What is the typical lead time for delivery?
A: The production lead time of the std desktop temperature chamber is seven working days.
Q: Are there any reviews or testimonials from other users?
A: Yes, we have customers in Europe, the USA, and Southeast Asia with good feedback.
