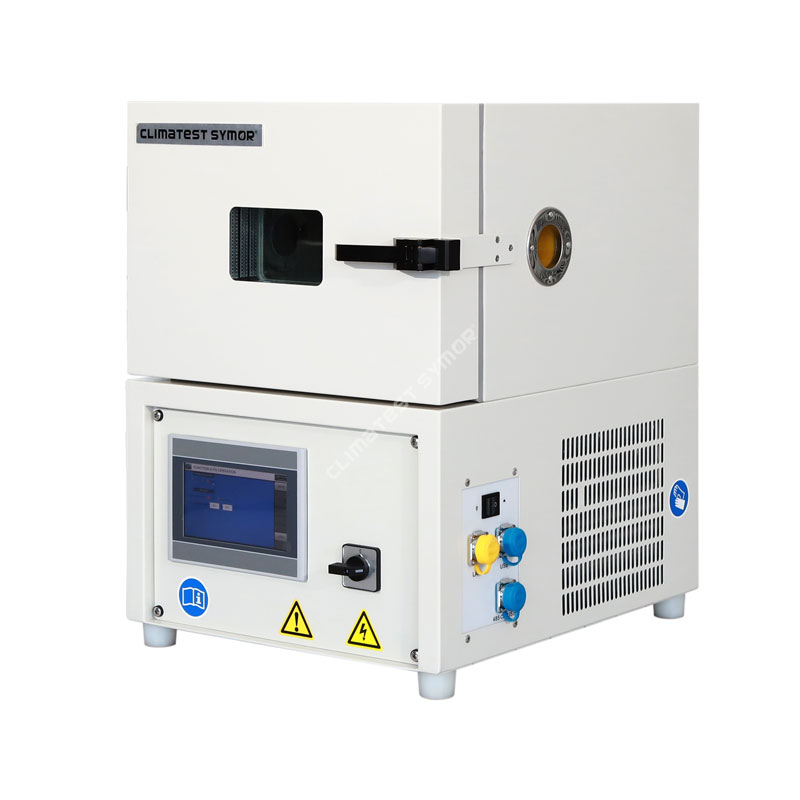

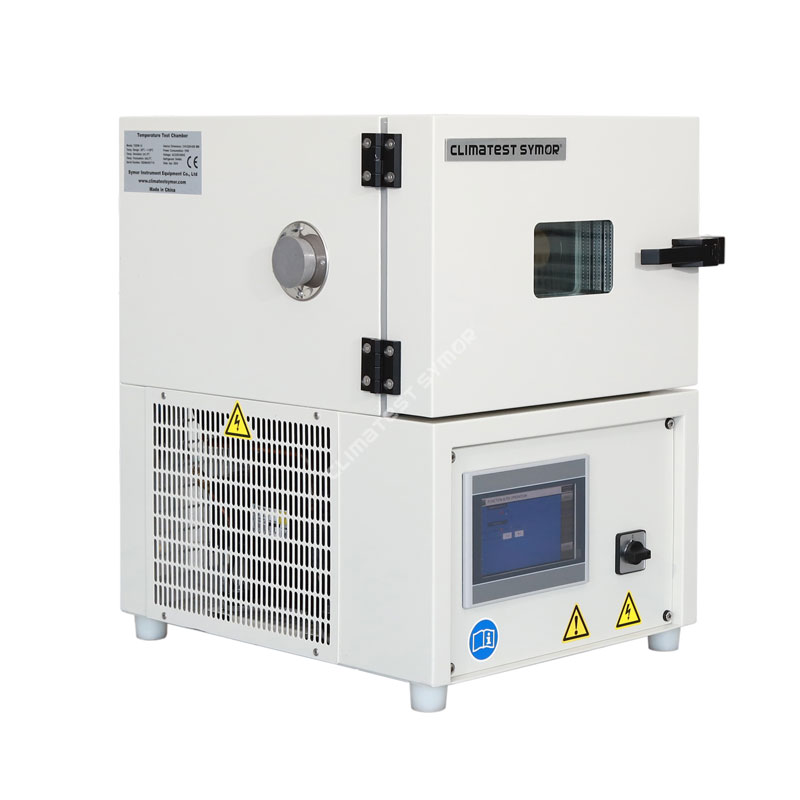

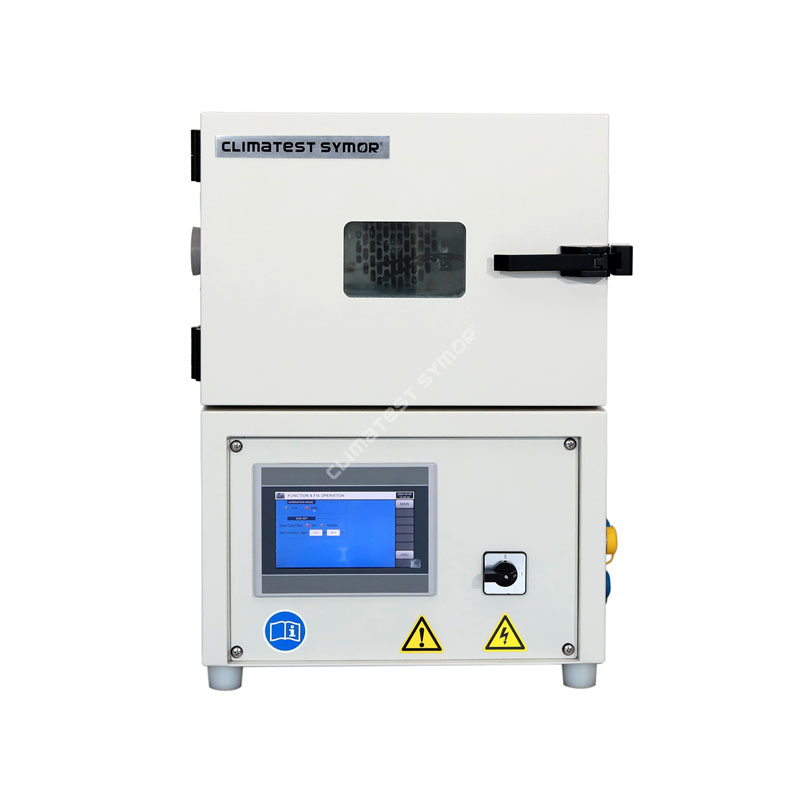

A mini temperature chamber, also called a benchtop thermal chamber, or benchtop temperature chamber, is designed to simulate full ranges of temperature conditions, the small footprint makes it optimal for testing small components and products on a benchtop in a laboratory. Mini temperature chamber provides accurate temperature control with PID function, customer can perform temperature tests with a range of -40°C~+130°C.
Model: TGDW-12
Capacity: 12L
Shelf: 1pc
Color: Off-white
Interior dimension: 310×230×200 mm
Exterior dimension: 500×540×650 mm
Description
Climatest Symor® mini temperature chamber comes in different sizes and temperatures. The chamber can evaluate the physical changes of products under extreme temperature cycling conditions. The mini temperature chamber provides the ideal testing solution for small components and is available in different sizes of 12L, 22L, and 36L.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 320×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤±1.0°C | ||
| Temperature Uniformity | ≤1.5°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤45 minutes (unload) | ||
| Interior Material | SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool/polyurethane foam | ||
| Controller | 7” Programmable touchscreen controller | ||
| Circulation System | Low-noise, high-temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressors, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
·Independent temperature limiter: An independent shutdown and alarm for thermal protection uses.
·Refrigeration system: Over-heat, over-current, and over-pressure protection of compressor.
·Test chamber: Over-temperature protection, overheating of fan and motor, phase failure/reverse, and timing.
·Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.
Programmable controller
▸7-inch programmable touch screen controller
▸Set temperature point under fix value mode or programs mode
▸Temperature set point and realtime temperature profile display
▸Test data can be downloaded through RS485 interface
Features

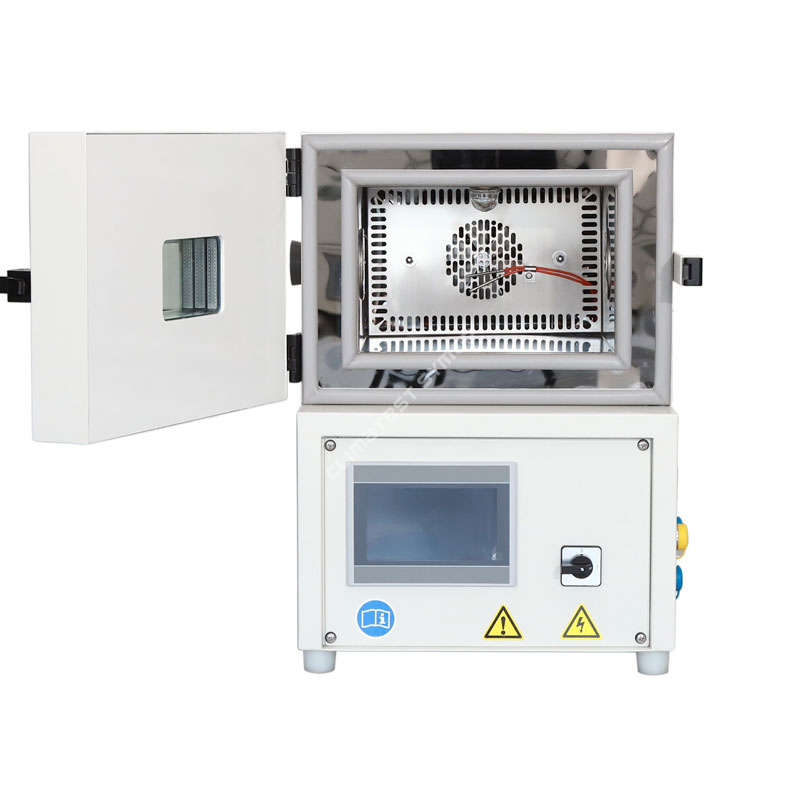

▸The working zone is made of SUS#304 brushed stainless steel.
▸Effective transparent viewing window and lighting inside for easy observation.
▸Superior door sealing made of reinforced silicone rubber, high temperature and aging resistant.
▸Uniform air circulation system inside the working zone.
▸Original imported France "Tecumseh" refrigeration compressors.
▸25mm diameter cable port locates on the right side.
Benefits
·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited-space laboratory
·Over-temperature limiter
·Programmable LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history curve display
·RS485 computer interface for data download
Application
As a reliability testing device, a mini temperature chamber simulates high and low-temperature alternating environments and tests the performance of products under extreme climate conditions. Mini thermostats are suitable for the following industries:
▸Electronic& Semiconductor Industry:
The inherent reliability of electronic components depends on the reliability design scheme. During the manufacturing process, due to fluctuations in human factors or raw materials, process parameters, and equipment conditions, the final product cannot all achieve the expected reliability. In each batch of finished products, there are always hidden defects, which manifest as early failure under certain stress conditions.
Therefore, it is necessary to take measures to eliminate these electronic components with initial failure as much as possible before they are installed on the machine, and for this purpose, the components must be screened, the mini temperature chamber is one of the screening equipments in early quality control process.
▸Plastics Manufacturing Industry:
Plastic enclosures and containers are widely used in our lives, involving household appliances, instrumentation, construction equipment, the automobile industry, daily hardware, and more, these products are increasing rapidly nowadays, and to improve quality and competitiveness, manufacturers begin to pay more attention to the reliability testing of their plastic products.
The benchtop mini temperature chamber simulates harsh environments, like high temperature, low temperature, and high and low temperature alternating, to help manufacturers detect defects shortly The chamber provides data collection during the R&D stage, and greatly improves production efficiency.
▸Automobile Industry:
In automobile industry, the mini deskop temperature chamber is one of the most crucial environment testing equipments, autoparts are tested rigorously, problems are explored and initial product design plans are modified, to continuously improve products quality.What temperature and humidity tests should be done for autoparts?
1) High temperature test
2) Low temperature test
3) Damp heat test
Moreover, the mini temperature test chamber is a commonly used device in the Communication, Pharmaceutical, Military, and Packaging industries, testing requirements are carried out by simulating the natural and accelerated environment, the mini temperature chamber is a common machine for reliability testing, it can efficiently detect the performance changes of products in different environments and plays an vital role in product research and development.
How to set fix value and programs?
▸Fix value setting: 85°C
▸Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
What are advantages of Climatest Symor® mini temperature chamber?
▸The mini benchtop temp chambers undergo strict quality control throughout production and commissioning, ensuring consistent performance and reliability.
▸Designed for benchtop installation, these chambers are ideal for labs and facilities with limited space.
▸Accurate temperature control and temperature uniformity.
▸Easy-to-use interfaces, making it simple to set up and operate tests.
Before shipment, each unit comes with a calibration certificate from SGS, an ISO 17025 accredited laboratory, ensuring high precision and reliability, and guaranteeing that they are ready for immediate use upon receipt.
Packing
First: Wrap thin film onto the temperature chamber benchtop for waterproof and dustproof use.
Second: Bind bubble foam on the temperature test chamber tightly, and then cover the machine with a big plastic bag.
Third: Put the temperature test chamber into a reinforced plywood case with a pallet at the bottom.
This package is firm enough to withstand bumpy sea and railway transportation, and the product can be delivered to customers smoothly.
Shipping
The mini temperature chamber is not suitable for air shipment, because there is refrigerant and compressor inside, currently the following are the common shipment solutions:
▸To Europe: By sea, China-EU railway, China-EU truck
▸To North America/South America: By sea, Matson
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea3
Climatest Symor® arranges booking service, and cooperate with customers under different incoterms, such as CIF/FOB//EXW/DAP; Climatest Symor® also provides door to door service (incoterm: DDP), that means we handle all export and import shipments and papers, customers just sign for receipt.
Commonly Asked Questions and Answers
Q: What is the warranty and support offered?
A: We provide a year warranty with lifetime free technical support, mini temperature chambers work stably and reliably, and it's hard to malfunction except for artificial damage. In case any parts fail, we will ship to you within 24 hours by FedEx/DHL, and we will also provide you with the installation video, as long as you know how to use a screwdriver, you can handle it.
Q: What are the power requirements?
A: The standard power supply of the mini temperature chambers is 220V/230V, 50HZ, and if you have other requirements, pls check with our salesman. (Email: sales@climatestsymor.com)
Q: How noisy is the chamber during operation?
A: 65dB
Q: What is the production lead time for delivery?
A: 7 working days, we have stock for the standard mini temperature chambers.
