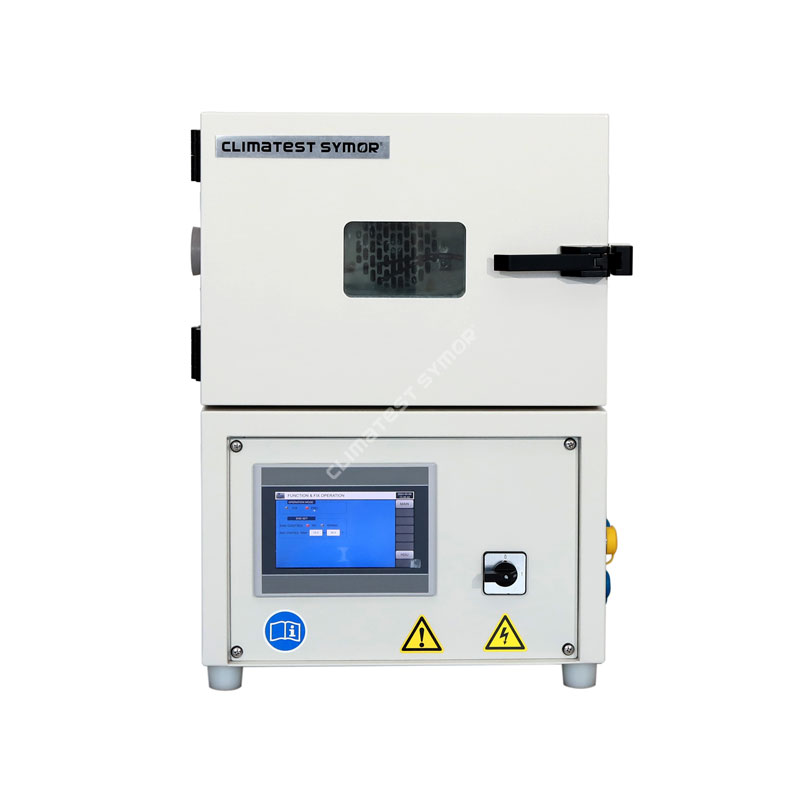

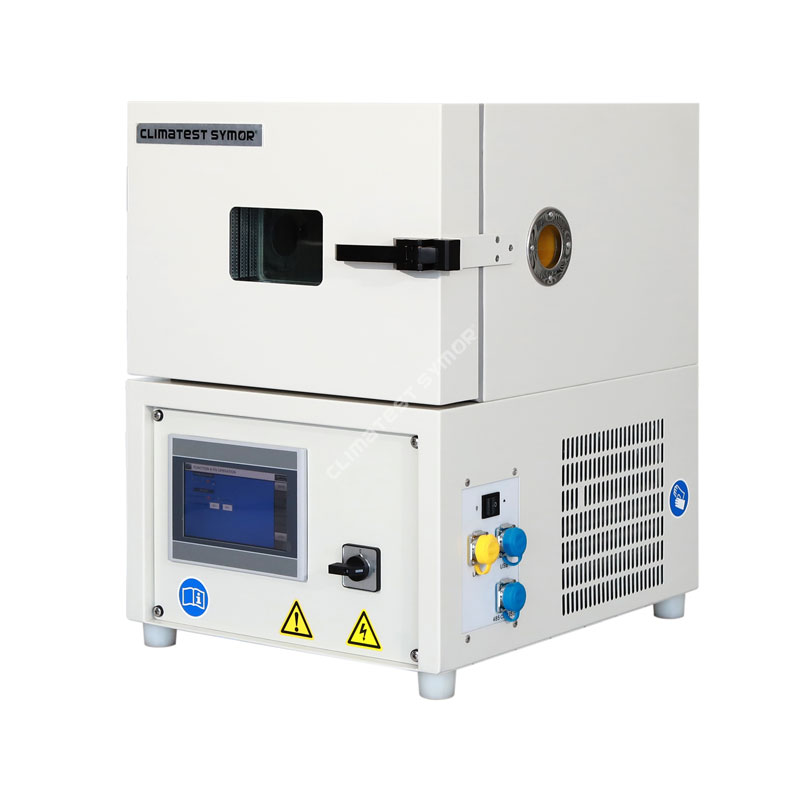

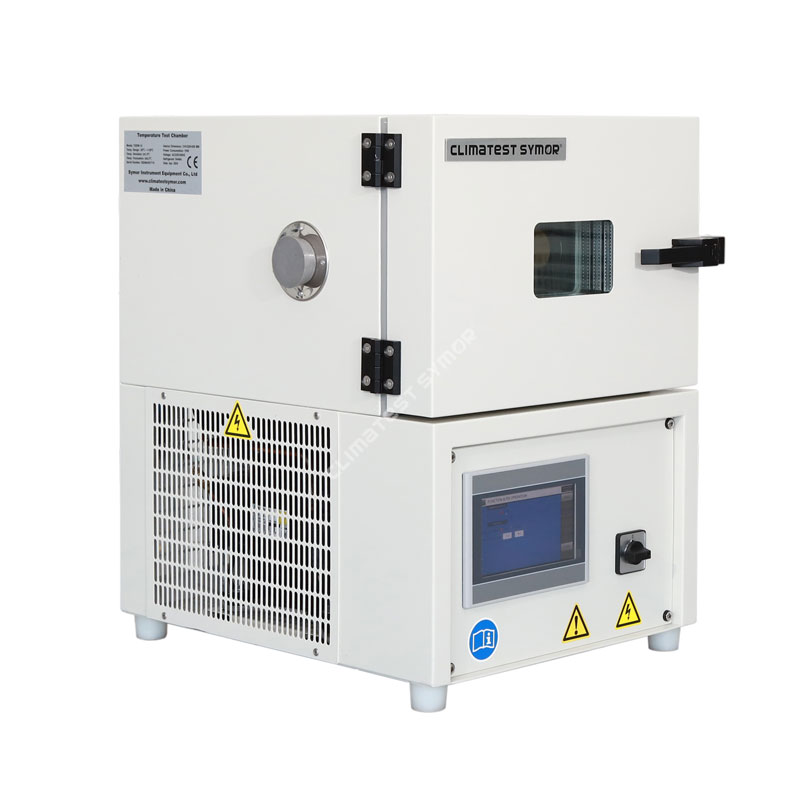

Climatest Symor® is a mini environmental chamber manufacturer and supplier in China, the mini environmental chamber is small enough to be placed on the benchtop in laboratories and research institutes, it provides precise temperature control with an intelligent PID function, a mini environmental chamber is an easy-to-operate machine, the user can perform various temperature tests with a range of -40°C~+130°C.
Model: TGDW-12
Capacity: 12L
Shelf: 1pc
Color: Off-white
Interior dimension: 310×230×200 mm
Exterior dimension: 500×540×650 mm
Description
Climatest Symor® mini environmental chamber is a compact, portable device designed to create specific temperature conditions for testing and research. These chambers are smaller than standard environmental test chambers, making them ideal for applications with limited space or requiring high mobility.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 320×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤±1.0°C | ||
| Temperature Uniformity | ≤1.5°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤45 minutes (unload) | ||

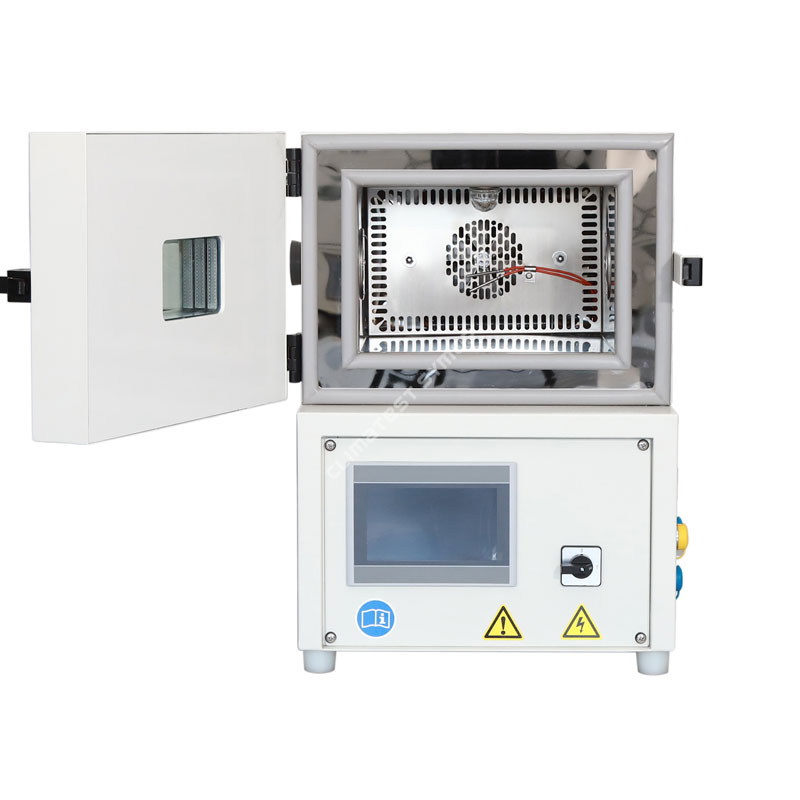

| Interior Material | SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool/polyurethane foam | ||
| Controller | 7” Programmable touchscreen controller | ||
| Circulation System | Low-noise, high-temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressors, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
· Independent temperature limiter
· Over-heat, over-current and over-pressure protection of compressor.
· Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.
· Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage and overload protection.
Key Features
▸Compact and Space-Efficient Design
▸High Precision and Accuracy
▸Uniform Temperature Distribution
▸User-Friendly Interface
▸Cost-Effective
Programable controller
▸7-inch programmable touchscreen controller
▸Fix value mode or program mode settings
▸Realtime temperature profile display
▸PID auto tuning
How to set fix value and programs?
▸Fix value setting: 85°C
▸Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
Application
▸Industrial Applications
Electronics: Testing the durability and functionality of electronic components under various environmental conditions.
Automotive: Testing the reliability of automotive components, such as sensors, autoparts and materials, under simulated weather conditions.
Construction Materials: Evaluating the durability and performance of building materials, such as concrete, wood, and insulation, under various environmental stresses.
▸Aerospace and Defense
Materials Testing: Evaluating the performance of materials used in aerospace and defense applications under extreme temperatures.
Equipment Testing: Ensuring that aerospace and military equipment can withstand the harsh conditions they may encounter in service.
Do you have the problem of limited space in your laboratory?
Climatest Symor® mini environmental chamber can conduct high-low temperature tests for small samples, a temperature range of -40℃ to +150℃ makes it possible to test samples’ resistance against extreme temperature changes. The mini environmental chamber provides users with a compact unit for testing small components. The operation is environmental and quiet, the small test chamber is the best seller in laboratories and universities.
Why choose Climatest Symor® mini environmental chamber?
Choosing a Climatest Symor® mini environmental chamber means opting for precision, reliability, and flexibility, here are our advantages:
▸High Precision and Accuracy
Equipped with advanced control systems that ensure precise temperature control, with temperature uniformity is ≤1.5°C, and temperature bias: ≤±1.0°C
Climatest Symor® strictly controls the performance and quality of the benchtop temperature chambers. Our QC follows up the whole process from production to commissioning. At the same time, we invite SGS lab to calibrate again before shipping, this ensures our customers are satisfied after receiving the machine and can be put into use immediately. Every benchtop temperature test chamber is well calibrated by SGS, the ISO17025 certified laboratory.
▸Cost-Effective Solution
. Affordable Pricing: Climatest Symor® offers a cost-effective benchtop-type thermal test chambers, making advanced testing accessible to more users.
. Low Maintenance: Designed for easy maintenance, these chambers reduce research and maintenance costs.
▸Energy Efficiency
. Low Power Consumption: Energy-efficient, operational costs are saved while maintaining high performance.
. Environmentally Friendly: CFC free, contributing to reduced environmental impact.
Packing
First: Wrap thin film onto the whole temperature test chamber for waterproof and dustproof purpose.
Second: Bind bubble foam on mini temperature test chamber, and then cover the machine with a plastic bag.
Third: Put temperature test chamber into a reinforced polywood case with pallet.
This package is firm enough to withstand bumpy sea and railway transportation, and ensure the product is delivered to customers smoothly.
Shipping
Mini environmental chambers are commonly shipped as follow:
▸To Europe: By sea, China-EU railway
▸To North America/South America: By sea, Matson
▸To Southeast Asia: By sea, by road
▸To New Zealand/Australia: By sea
▸To Africa: By sea
Climatest Symor® arranges booking service, and cooperate with customers under different incoterms, such as CIF/FOB//EXW/DAP; Climatest Symor® also provides door-to-door service (incoterm: DDP), that means we handle all export and import procedures, customers just sign for receipt.
Frequently Asked Questions and Answers
Q: How do I maintain a mini temperature test chamber?
A: The chamber is low maintenance, the regular maintenance includes the cleaning of the working area after each test, and plugging off the power supply if idle for a long time, details pls refer to our user manual.
Q: What is the cost of a mini temperature test chamber?
A: Costs differ depending on the parameters, volumes, and destinations, pls contact our sales staff for a formal quotation by emailing sales@climatechambers.com.
Q: Can I get customized desktop temperature test chambers?
A: Yes, we can customize as per your technical parameters, and the lead time is 30 days, pls check with our sales staff by emailing sales@climatechambers.com.
Q: Are desktop temperature test chambers noisy during operation?
A: The noise is 65 dB.
