Climatest Symor® manufactures benchtop environmental test chambers in China. The benchtop environmental test chamber is tailor-made for smaller specimens in a limited space laboratory, and it offers the ideal conditions to test specimens' performance against high-low temperature changes and provides an optimal testing solution with a compact volume of 12L, 22L, and 36L. It combines high durability with excellent working performance. The benchtop temperature test chamber has become the best seller in laboratories and research institutes.

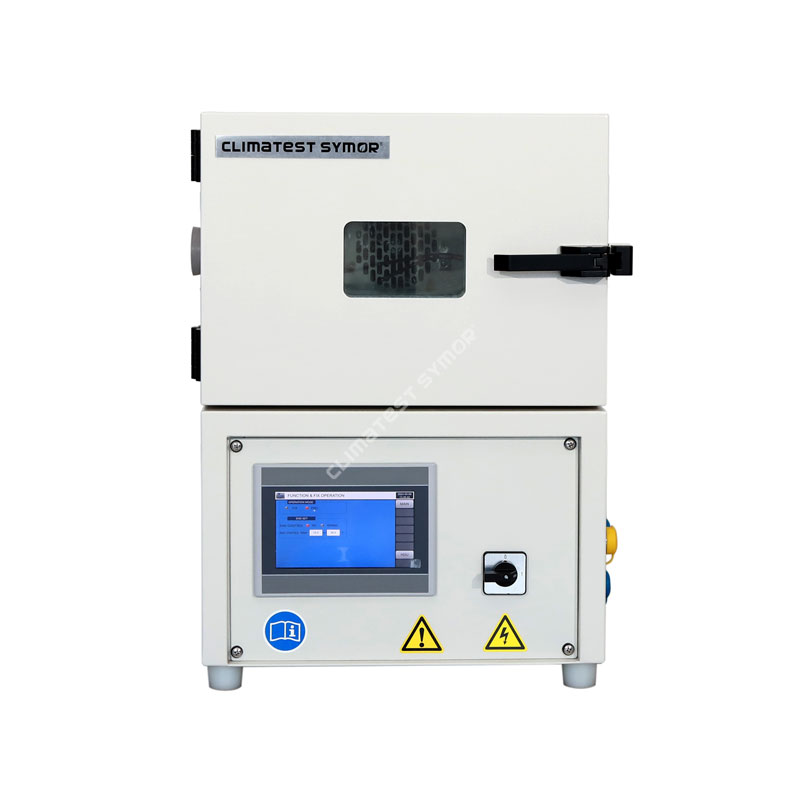

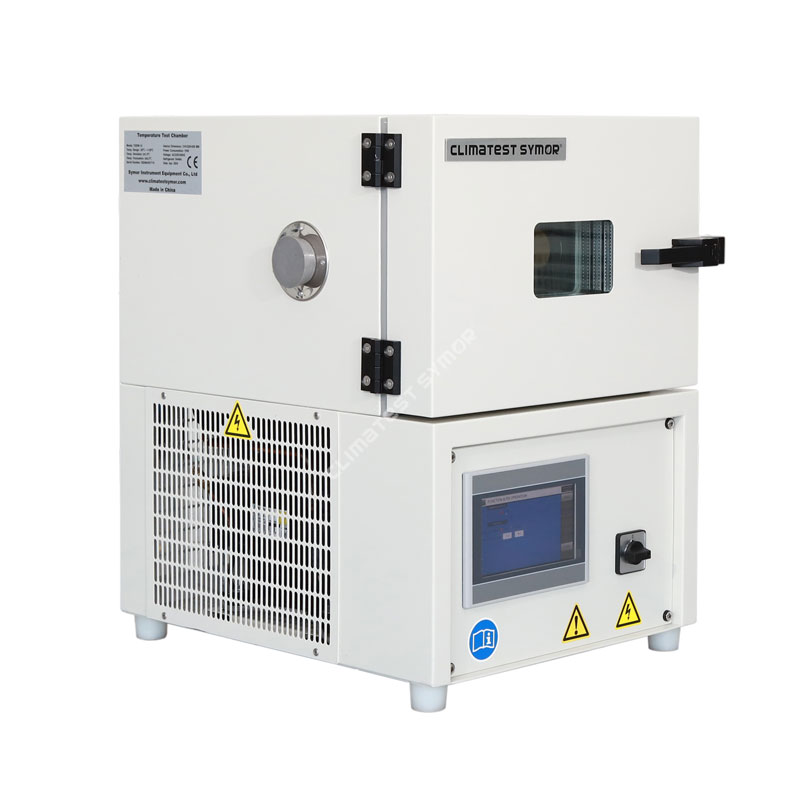

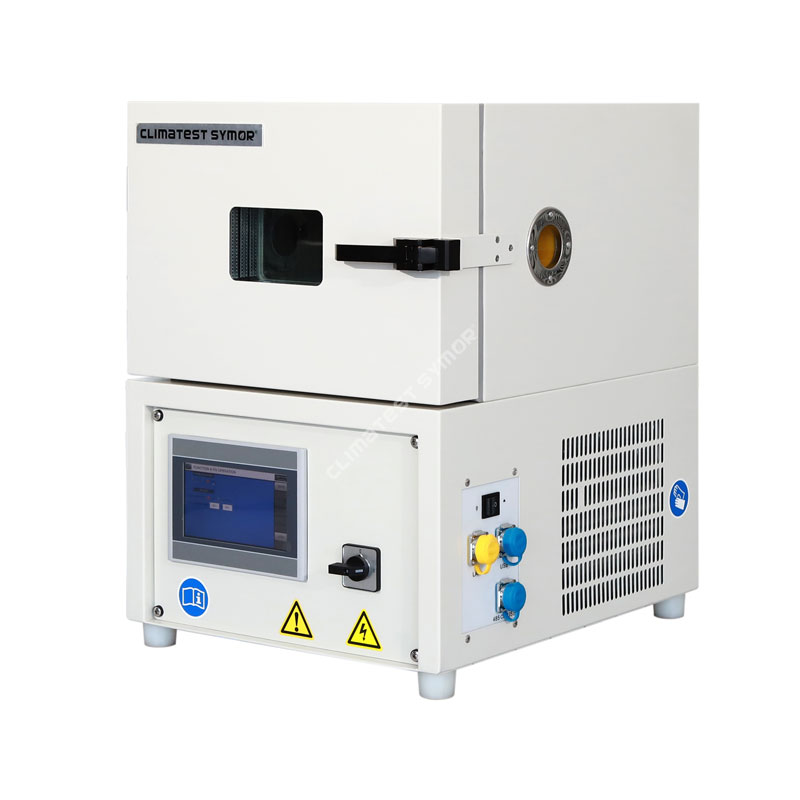

Model: TGDW-22
Capacity: 22L
Shelf: 1pc
Color: Off-white
Interior dimension: 320×250×250 mm
Exterior dimension: 520×560×730 mm
Description
Climatest Symor® is an outstanding benchtop environmental test chamber manufacturer and supplier in China, the test chamber is small enough to be placed on the benchtop, and it provides accurate, precise PID control of temperature levels, with easy installation and convenient operation. The user can perform temperature tests with a temperature range of -40°C~+130°C.
Specification
| Model | TGDW-12 | TGDW-22 | TGDW-36 |
| Interior Dimension(W*D*H) | 310×230×200 mm | 320×250×250 mm | 400×300×300 mm |
| Exterior Dimension(W*D*H) | 500×540×650 mm | 520×560×730 mm | 640×730×970 mm |
| Temperature Range | Model A :-20°C~+130°C Model B: -40°C~+130°C | ||
| Temperature Fluctuation | ≤±0.5°C | ||
| Temperature Bias | ≤±1.0°C | ||
| Temperature Uniformity | ≤1.5°C | ||
| Heating Rate | +25℃～+130℃≤30 minutes (unload) | ||
| Cooling Rate | +25℃～-40℃≤45 minutes (unload) | ||

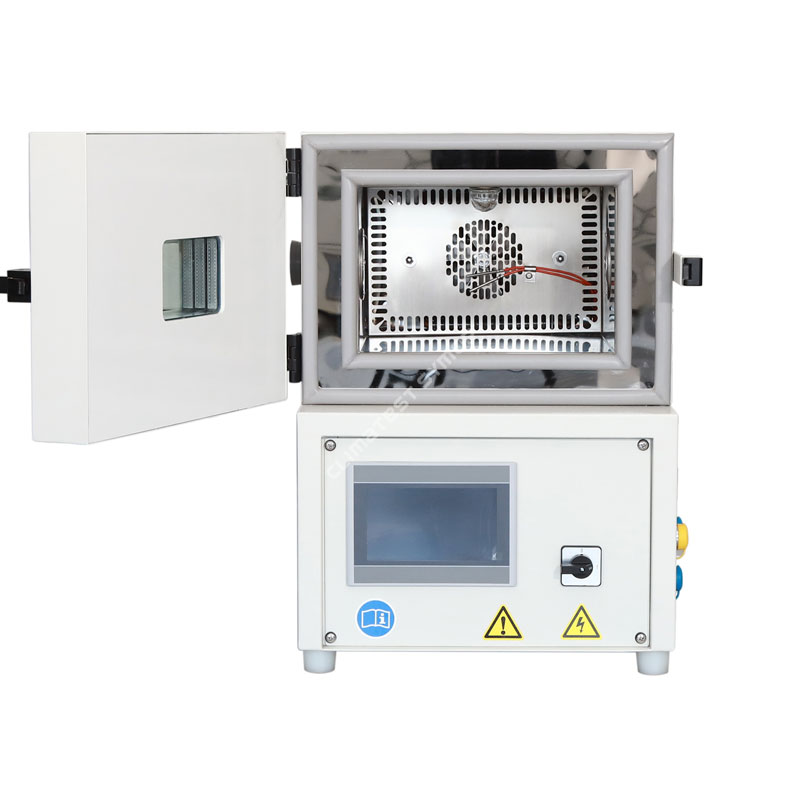

| Interior Material | SUS#304 brushed stainless steel | ||
| Exterior Material | Reinforced Steel plate with electrostatic spraying | ||
| Insulation | Superfine fiberglass wool / polyurethane foam | ||
| Controller | 7” Programmable touchscreen controller | ||
| Circulation System | Low-noise, high temperature resistant motors, long axis and stainless steel multi-leaf type centrifuge fan | ||
| Heating System | NiCr heater, independent system | ||
| Refrigeration System | France "TECUMSEH" Refrigeration Compressors, air cooling | ||
| Power Supply | AC110V/220V/AC230V·50HZ/60HZ | ||
Safety protection:
· Independent temperature limiter
· Over-heat, over-current and over-pressure protection of compressor.
· Over-temperature protection, overheat of fan and motor, phase failure/reverse, and timing.
· Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage, and overload protection
Key Features
▸Compact Design: Designed to fit on a benchtop, making it ideal for laboratories and facilities with limited space.
▸Temperature Range: Typically can simulate temperatures from -40°C to 150°C (-40°F to 302°F).
▸Programmable Controls: Advanced models feature programmable controls to set up specific test cycles, durations, and conditions.
▸Data Logging: Equipped with data logging capabilities to monitor and record environmental conditions and test results over time.
▸Safety Features: Includes over-temperature protection, alarms, and other safety mechanisms to ensure safe operation.
Programmable controller
· 7-inch programmable touch screen controller
· Fix value mode or programs mode settings
· Temperature set point and realtime temperature profile display
Benefits
·Easy installation
·Precise temperature control in small chamber
·Desktop type designed for limited space laboratory
·Over-temperature limiter
·Programmable LCD controller
·Record 365 days history data
·Temperature & humidity realtime and history profile display
·RS485 computer interface for data download
How to set fix value and programs?
▸Fix value setting: 85°C
▸Programs setting: Heat up to 85°C, constant 5 hours @85°C, cool down to 30°C, constant 2 hours@30°C, cool down to 0°C, constant 6 hours @0°C, cool down to -20°C, constant 2 hours@-20°C, then take out @23°C.
Application
Climatest Symor® is a supplier of benchtop environmental test chambers. As a reliability test equipment, the desktop temperature test chambers simulate high-low temperature cycling conditions to test the performance of various products and materials withstanding extreme climate conditions. The chamber is suitable for the following industries:
▸Material Testing: Evaluates the durability and performance of materials under extreme temperatures and humidity levels.
▸Electronics Testing: Tests the reliability of electronic components and devices in various environmental conditions to ensure compliance with industry standards.
▸Automotive Testing: Assesses the performance of automotive parts and systems under different environmental conditions.
▸Aerospace Testing: Tests the resilience of aerospace components to ensure they can withstand the harsh conditions of flight and space.
What can you benefit from benchtop environmental test chamber?
As a benchtop environmental test chamber manufacturer, Climatest Symor® offers the following benefits to customers:
▸Efficiency: Compact size and efficient design make it suitable for quick tests and research.
▸Cost-Effective: More affordable than larger environmental chambers, making them accessible for smaller labs and businesses.
▸Flexibility: Suitable for various applications, from electronics to automobiles.
Moreover, Climatest Symor® strictly controls the performance and quality of the benchtop temperature test chambers. Our QC follows up the whole process from production to commissioning. At the same time, we invite SGS lab to calibrate again before shipping, this ensures our customers are satisfied after receiving the machine and can be put into use immediately. Every benchtop temperature chamber is calibrated by SGS, the ISO17025 certified laboratory.
Packing of benchtop environmental test chamber
1. Wrap thin film onto the whole chamber for waterproof and dustproof purpose.
2. Bind bubble foam on temperature test chamber tightly, and then cover the machine with a big plastic bag.
3. Put it into a reinforced polywood case with pallet.
This package is firm enough to withstand bumpy sea and railway transportation, and ensure the product is delivered to customers smoothly.
Frequently Asked Questions and Answers
Q: How to maintain the benchtop environmental test chamber?
A: The test chamber is low maintenance, regular maintenance includes cleaning the work area after each test and turning off the power if left idle for an extended period of time, see our user manual for details.
Q: How much does a benchtop environmental test chamber?
A: Costs vary based on parameters, quantity and destination, please contact our sales staff via email at sales@climatechambers.com for a formal quote.
Q: What is the general delivery time?
A: The production cycle is seven working days.
Q: Is the benchtop environmental test chamber noisy when running?
A: The noise is 65 decibels.
Q: How often does a benchtop environmental test chamber need calibrating?
A: We calibrate before shippping, and we recommend recalibrating once every year.
