Silicone curing ovens can reach and maintain temperatures of up to 400°C. These ovens are designed for process applications that require elevated temperatures for processes, such as heat treatment, curing, annealing, hardening, and aging.
Model: TBPG-9050A
Capacity: 50L
Interior Dimension: 350*350*400 mm
Exterior dimension: 695*635*635 mm
Description
Climatest Symor® silicone curing ovens have four chamber dimensions, with maximum operating temperatures of 400°C, custom options are available at competitive prices. Air circulation and specially designed air duct ensure good temperature uniformity in the chamber. Hot air is generated by long-life sheathed heating elements, and recirculated within the chamber through a blower.
Specification
| Model | TBPG-9030A | TBPG-9050A | TBPG-9100A | TBPG-9200A |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 |
| Temperature Range | 50°C ~ 400°C | |||
| Temperature Fluctuation | ± 1.0°C | |||
| Temperature Resolution | 0.1°C | |||
| Temperature Uniformity | ± 1.5% | |||
| Shelves | 2 PCS | |||
| Timing | 0~ 9999 min | |||
| Power Supply | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | |||
Feature
High temperature up to 400°C, 500°C ,600°C
PID microprocessor temperature controller
Over temperature protection controller
Uniform temperature distribution
Interior oven made of SS304/SS316
Optimized insulation minimizes heat loss
Silicone curing oven
The temperature of the silicone curing ovens is designed to be the temperature range between the traditional drying oven limit and the operating temperature of the furnace. Choose the ovens that best meet your requirements, from 400°C , 500°C to 600°C , and the right size at our specifications.

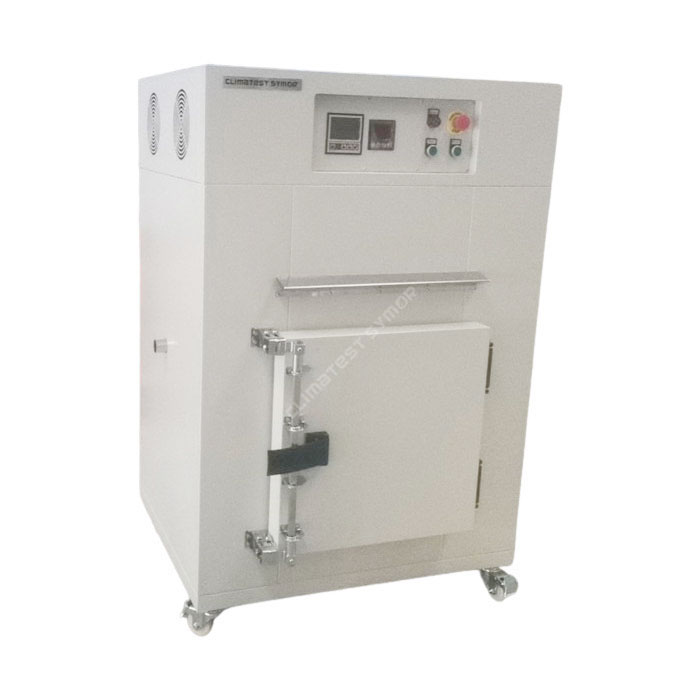

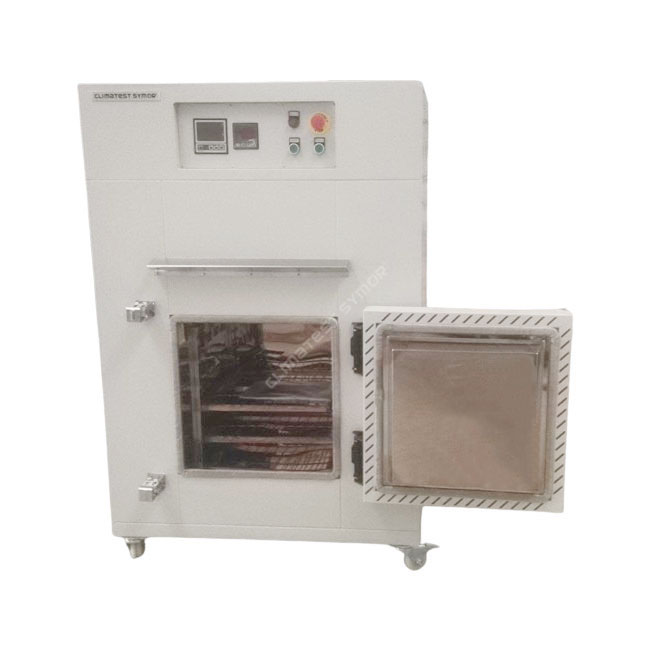

Each oven comes with a single hinged door and an explosion proof handle. The walls and doors are well insulated to reduce heat loss. The entire interior chamber/heating element/shelves are made of stainless steel 304. The adjustable air inlet and outlet circulation ports are provided. The heat resistant seal provides a tightly sealed chamber.
The oven is provided with two perforated shelves, slots are located at both sides, the height is adjustable. The exterior oven is fabricated from galvanized steel with powder coated finish. The control panel is on the top of the oven.
Our standard controller is digital display, programmable controller is optional, it has auto-tuning and settable ramp rate function, this feature provides precise and stable control from the power-on moment.
For operation on 380VAC, 50/60HZ, 400V or 415V, 480V are also available.
Benefits
Optimized Heating Efficiency: Silicone curing ovens are designed to minimize heat loss, and maximize heating efficiency, resulting in faster heating time and lower energy consumption. This helps improve productivity, save time, and lower operating costs, making them a cost-effective heating solution.
Compliance with Standards:Silicone curing ovens help ensure compliance with industry standards, specifications, and regulatory requirements for heating processes.
Improved Product Quality: Silicone curing ovens help improve the quality and consistency of heated materials. This is particularly important for temperature-sensitive materials, which require careful handling and precise heating conditions.
Application
Climatest Symor® is committed to becoming an excellent manufacturer of silicone curing ovens in China, our ovens find application in various industries for a wide range of processes. Here are some common applications:
Paints
Silicone curing ovens can be used to cure solvent-based or water-based paints applied to surfaces such as metal, wood, plastic, or glass. The oven provides controlled heating to evaporate the solvent and facilitate the curing process, resulting in a durable and protective finish.
Powder Coatings
Powder coatings are applied as dry powder to surfaces and then cured to form a durable and protective coating. Silicone curing ovens are commonly used in powder coating operations to melt and fuse the powder particles, resulting in a seamless and uniform finish with excellent adhesion and durability.
Chemicals
In the chemical industry, silicone curing ovens are used for drying solvents, catalysts, polymers, resins, and other chemical compounds. They are employed in various chemical processes such as polymerization, crystallization, evaporation, and solid-state reactions.
Annealing and Heat-Treating
In materials science research, silicone curing ovens are used for annealing and heat-treating metals and alloys, to improve their mechanical properties, hardness, and strength.
Climatest Symor® designs and manufactures all kinds of curing ovens, to meet the diverse requirements of various industries, such as automotive, chemical, electronics manufacturing and more, welcome for possible collaboration!
