Resin curing ovens are used to heat and cure various types of resins, including epoxy, polyester, acrylic, silicone, and polyurethane resins. These ovens provide controlled heating environments to accelerate the curing process of resins, allowing them to harden and achieve their desired properties.
Model: TBPG-9100A
Capacity: 90L
Interior Dimension: 450*450*450 mm
Exterior dimension: 795*730*690 mm
Description
Climatest Symor® resin curing ovens have four chamber dimensions for your selection, with maximum operating temperatures of 400°C, custom options are available at competitive prices. Air circulation and specially designed air duct ensure good temperature uniformity in the chamber. Hot air is generated by long-life sheathed heating elements, and recirculated within the chamber.
Specification
Model | TBPG-9030A | TBPG-9050A | TBPG-9100A | TBPG-9200A |
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 |
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 |
Temperature Range | 50°C ~ 400°C | |||
Temperature Fluctuation | ± 1.0°C | |||
Temperature Resolution | 0.1°C | |||
Temperature Uniformity | ± 1.5% | |||
Shelves | 2 PCS | |||
Timing | 0~ 9999 min | |||
Power Supply | AC380V 400V 415V 480V 50HZ/60HZ | |||
Ambient Temperature | +5°C~ 40°C |
Feature
High temperature up to 400°C, 500°C ,600°C
PID microprocessor temperature controller
Over temperature protection controller
Uniform temperature distribution
Interior oven made of SS304/SS316
Optimized insulation minimizes heat loss
Resin curing oven
The temperature of the resin curing ovens is designed to be the temperature range between the traditional drying oven limit and the operating temperature of the furnace. Choose the ovens that best meet your requirements, from 400°C , 500°C to 600°C , and the right size at our specifications.

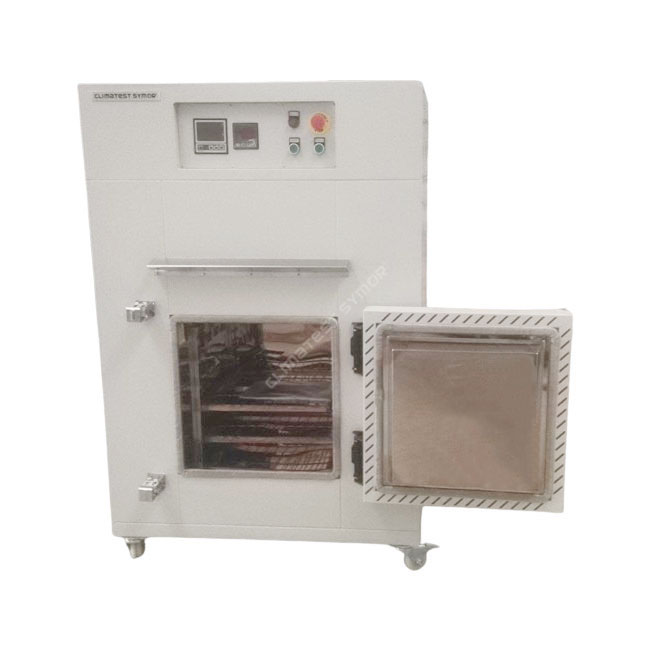

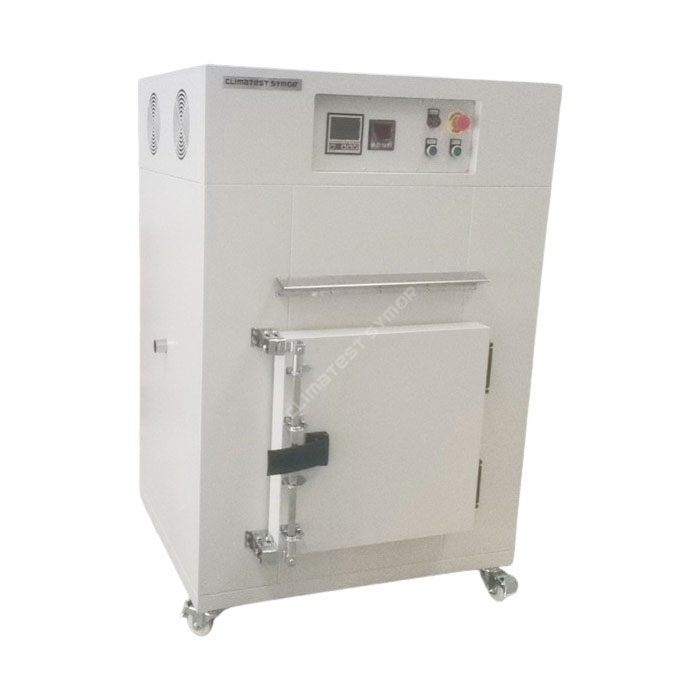

Each oven comes with a single hinged door and an explosion proof handle. The walls and doors are well insulated to reduce heat loss. The entire interior chamber/heating element/shelves are made of stainless steel 304. The adjustable air inlet and outlet circulation ports are provided. The heat resistant seal provides a tightly sealed chamber.
The oven is provided with two perforated shelves, slots are located at both sides, the height is adjustable. The exterior oven is fabricated from galvanized steel with powder coated finish. The control panel is on the top of the oven.
Our standard controller is digital display, programmable controller is optional, it has auto-tuning and settable ramp rate function, this feature provides precise and stable control from the power-on moment.
For operation on 380VAC, 50/60HZ, 400V or 415V, 480V are also available.
Benefits
Optimized Heating Efficiency: Resin curing ovens are designed to minimize heat loss, and maximize heating efficiency, resulting in faster heating time and lower energy consumption. This helps improve productivity, save time, and lower operating costs, making them a cost-effective heating solution.
Compliance with Standards: Resin curing ovens help ensure compliance with industry standards, specifications, and regulatory requirements for heating processes.
Improved Product Quality: Resin curing ovens help improve the quality and consistency of heated materials. This is particularly important for temperature-sensitive materials, which require careful handling and precise heating conditions.
Application
Climatest Symor® is dedicated to becoming an excellent manufacturer of curing ovens in China, our ovens find application in various industries. Here are some common applications:
Coating and Surface Finishing
Resin curing ovens are utilized for curing resin-based coatings, sealants, and finishes applied to surfaces for protective, decorative, or functional purposes. They ensure proper curing and adhesion of coatings, resulting in smooth, durable, and aesthetically pleasing finishes.
Chemicals
In the chemical industry, silicone curing ovens are used for drying solvents, catalysts, polymers, resins, and other chemical compounds. They are employed in various chemical processes such as polymerization, crystallization, evaporation, and solid-state reactions.
Casting and Molding
Resin curing ovens are employed in casting and molding processes for curing resin materials used to fabricate molds, patterns, prototypes, and finished parts. These ovens help produce precise and stable molds for casting, molding, and forming operations in various industries.
Annealing and Heat-Treating
In materials science research, silicone curing ovens are used for annealing and heat-treating metals and alloys, to improve their mechanical properties, hardness, and strength.
Climatest Symor® designs and manufactures all kinds of industrial curing ovens, to meet the diverse requirements of various industries, such as automotive, chemical, electronics manufacturing and more, welcome for possible collaboration!
