400°C high-temperature ovens are capable of reaching and maintaining temperatures up to 400°C. These ovens are designed for applications that require elevated temperatures for processes, such as pre-heating, curing, annealing, hardening, and aging.
Model: TBPG-9030A
Capacity: 30L
Interior Dimension: 320*320*300 mm
Exterior dimension: 665*600*555 mm
Description
Climatest Symor® high temperature ovens are manufactured in 4 standard chamber sizes with maximum operating temperatures of 400°C, customized options are available at competitive prices. The air circulation and specially designed air duct ensure excellent temperature uniformity within the chamber. Hot air is produced by long-lifespan sheathed heating elements, and recirculated within the chamber by a blower.
Specification
| Model | TBPG-9030A | TBPG-9050A | TBPG-9100A | TBPG-9200A |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 |
| Temperature Range | 50°C ~ 400°C | |||
| Temperature Fluctuation | ± 1.0°C | |||
| Temperature Resolution | 0.1°C | |||
| Temperature Uniformity | ± 1.5% | |||
| Shelves | 2 PCS | |||
| Timing | 0~ 9999 min | |||
| Power Supply | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | |||
Feature
High temperature up to 400°C, 500°C ,600°C
PID microprocessor temperature controller
Over temperature protection controller
Uniform temperature distribution
Interior oven made of SS304/SS316
Optimized insulation minimizes heat loss
400°C high-temperature oven
400 deg C high-temperature ovens are designed for the temperature range between the traditional drying oven limit and the furnace operating temperature. Select the oven that best meets your requirements from 400°C, 500°C to 600°C, and suitable sizes in our specification.

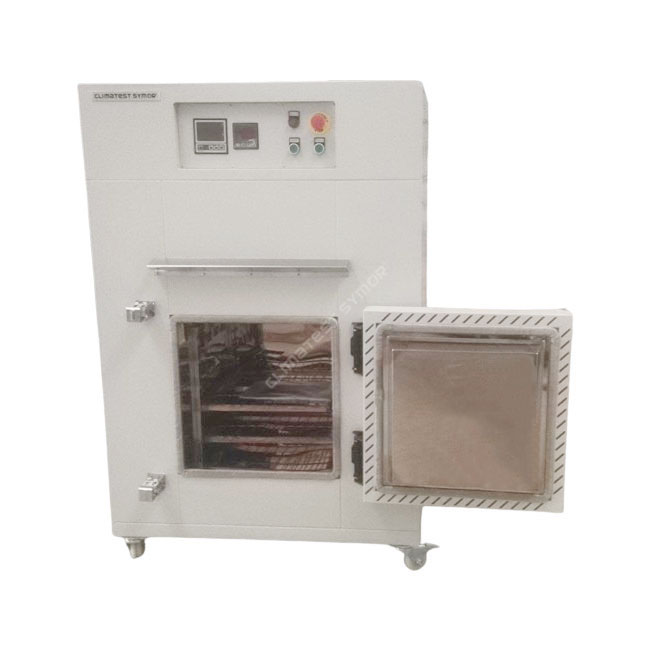

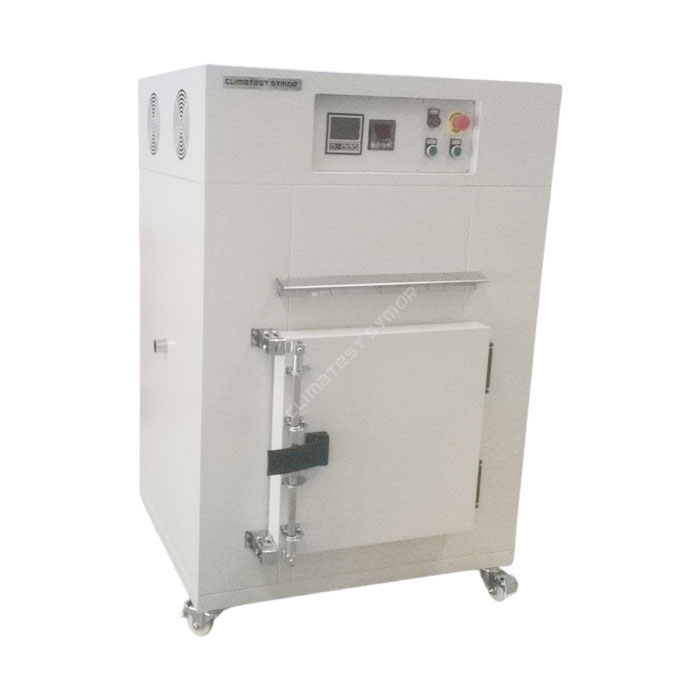

The 400 deg C high-temperature oven comes with a single-hinge door and an explosion proof handle. The oven walls and doors are well insulated to minimize heat loss. The whole interior chamber/heating element/shelves are made of stainless steel 304. The adjustable air inlet and outlet circulation ports are provided. The high temperature resistant seal provides a tightly sealed chamber.
The oven is provided with two perforated shelves, slots are located at both sides, so the height is adjustable. The exterior oven is fabricated from galvanized steel with powder coated finish. The control panel is on the top of the oven. A Type K thermocouple is used to provide the oven control reference.
Our standard controller is digital display, programmable controller is optional, it has auto-tuning and settable ramp rate function, this feature provides precise and stable control from the power-on moment.
400 deg C high-temperature ovens are built with high-quality materials to ensure reliability, durability, and energy efficiency, and ideal for both large-scale and smaller-scale drying applications.
For operation on 220VAC, 50/60HZ, 110V or 230V, 240V are also available.
Benefits
Optimized Heating Efficiency: High-temperature ovens are designed to minimize heat loss, and maximize heating efficiency, resulting in faster heating time and lower energy consumption. This helps improve productivity, save time, and lower operating costs, making them a cost-effective heating solution.
Compliance with Standards: High-temperature ovens help ensure compliance with industry standards, specifications, and regulatory requirements for heating processes.
Improved Product Quality: High-temperature ovens help improve the quality and consistency of heated materials. This is particularly important for temperature-sensitive materials, which require careful handling and precise heating conditions.
Application
Climatest Symor® is committed to becoming an excellent manufacturer of high-temperature ovens in China, our ovens find application in various industries for a wide range of processes. Here are some common applications:
Electronics Manufacturing
High-temperature ovens are employed in electronics & semiconductor manufacturing processes for heating and curing coatings, adhesives, and encapsulants used in electronic components and assemblies. They ensure proper adhesion, insulation, and protection of electronic devices.
Chemicals
In the chemical industry, high-temperature ovens are used for drying solvents, catalysts, polymers, resins, and other chemical compounds. They are employed in various chemical processes such as polymerization, crystallization, evaporation, and solid-state reactions.
Annealing and Heat-Treating
In materials science research, high-temperature ovens are used for annealing and heat-treating metals and alloys, to improve their mechanical properties, hardness, and strength.
Climatest Symor® designs and manufactures all kinds of high temperature ovens, to meet the diverse requirements of various industries, such as automotive, chemical, electronics manufacturing and more, welcome for possible collaboration!
