Electronic dry box - Manufacturers, Suppliers, Factory From China

Electronic Dry Cabinet, Dessicator Cabinet, Low Humidity Storage Cabinet, Dry Box with N2 Purging.

Model: TDU1436BFD-4
Capacity: 1436L
Humidity: <3%RH Automatic
Shelves: 5pcs
Color: Dark Blue, ESD safe
Interior dimension: W1198*D672*H1723 MM
Exterior dimension: W1200*D710*H1910 MM

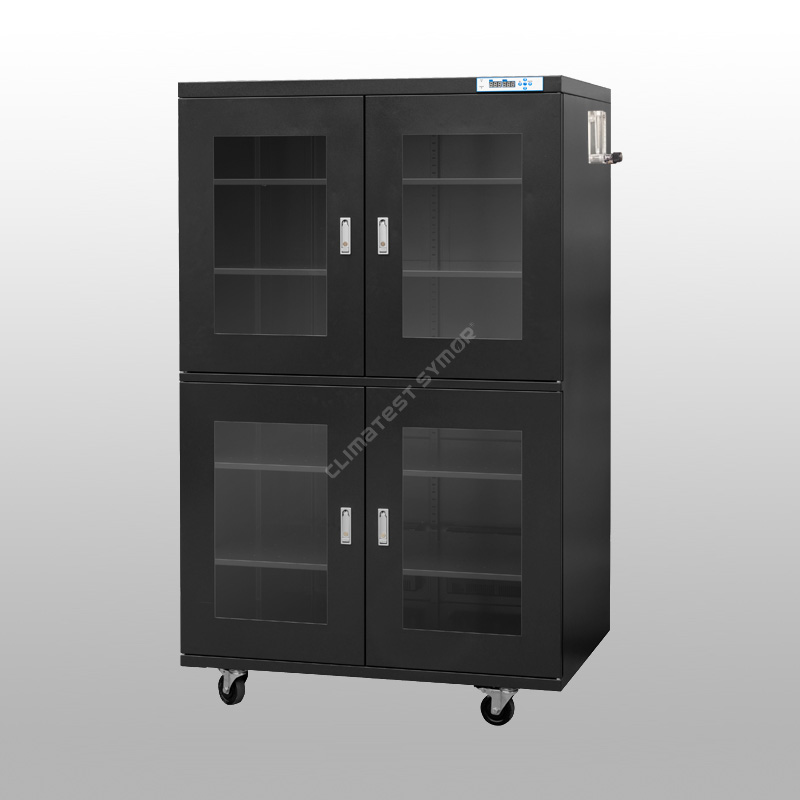

Nitrogen dry box storage provides low humidity storage environment for moisture sensitive electronic/semiconductor components, such as IC packages, PCB, SMT, silicon wafers, the nitrogen dry box storage is with automatic humidity control, the humidity level can be down to 1%RH through filling nitrogen gas.

Model: TDN1436F-4
Capacity: 1436L
Humidity: 1%-60%RH adjustable
Recovery time: Max. 15 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)
Shelves: 5pcs, height adjustable
Color: Dark blue, ESD safe
Interior dimension: W1198*D682*H1723 MM
Exterior dimension: W1200*D710*H1910 MM

Salt fog chamber is designed to test the corrosion resistance of materials such as steel, aluminum, and chrome plating. The chamber consists of a temperature and humidity controlled environment that is filled with salt mist. The materials to be tested is placed in the chamber and exposed to the salt fog for a period of time. After the test is completed, the material is inspected for signs of corrosion.

Model: TQ-016
Capacity: 815L
Interior Dimension: 1600*850*600 mm
Exterior Dimension: 2400*1150*1500 mm

Dry cabinet for moisture sensitive devices, provides ultra-low humidity storage environment for electronic manufacturing industry, the auto dry cabinet is not only for drying storage, but also fast moisture removal, dust proof and anti-static (ESD) protection for your electronic components.

Model: TDA435F
Capacity: 435L
Humidity: 20%-60%RH adjustable
Recovery time: Max. 30 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)
Shelves: 3pcs, height adjustable
Color: Dark blue, ESD safe
Interior dimension: W898*D572*H848 MM
Exterior dimension: W900*D600*H1010 MM

Dry box for electronics is humidity controlled drying and storage cabinet, that provides low humidity control environment for moisture sensitive devices, the dry box for electronics is not only for drying storage, but also fast moisture removal, dust proof and anti-static (ESD) protection for your electronic components.

Model: TDA540F
Capacity: 540L
Humidity: 20%-60%RH adjustable
Recovery time: Max. 30 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)
Shelves: 3pcs, height adjustable
Color: Dark blue, ESD safe
Interior dimension: W898*D572*H848 MM
Exterior dimension: W900*D600*H1010 MM

Climatest Symor® provides ESD safe dry cabinets for MSL components, the cutting-edge manufacturing process, together with the patented dehumidifying technology , helps us win numerous customers worldwide, Climatest Symor® delivers high-end ESD safe dry cabinets with competitive price, each ESD safe dry cabinet comes with two years warranty.

Model: TDC240F
Capacity: 240L
Humidity: <10%RH Automatic
Recovery time: Max. 30 min after open door 30 seconds then closed. (Ambient 25℃ 60%RH)
Shelves: 3pcs
Color: Dark Blue, ESD safe
Interior dimension: W596*D372*H1148 MM
Exterior dimension: W598*D400*H1310 MM
