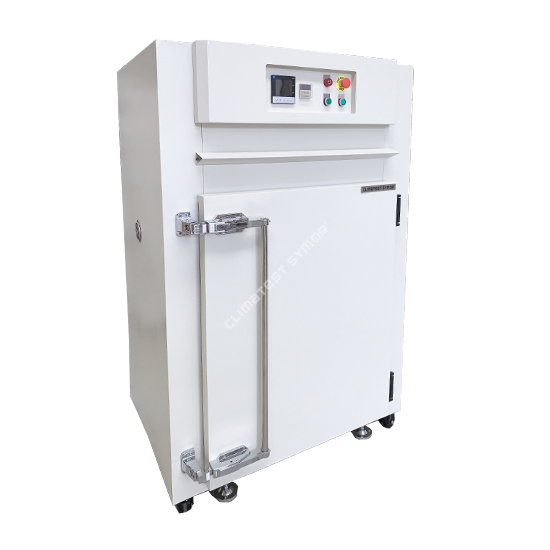

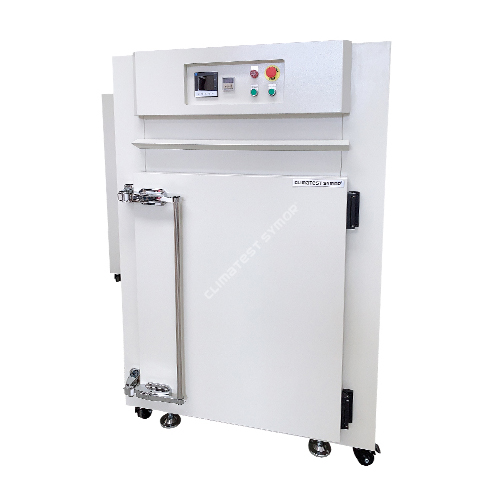

A sealant curing oven is a specialized type of oven used in manufacturing processes to cure sealants and adhesives. These ovens provide controlled temperature environments to accelerate the curing process of sealants, ensuring proper bonding and sealing of materials. These ovens are equipped with precise temperature control systems, that allow users to set and maintain temperature range within 50°C ~ 250°C.
Model: TBPG-9050A
Capacity: 50L
Interior Dimension: 350*350*400 mm
Exterior dimension: 695*635*635 mm
Description
Sealant curing ovens typically utilize forced air convection systems to ensure uniform heat distribution throughout the chamber. This helps to prevent hot spots and ensures consistent curing of sealants across all sealed surfaces.
Specification
| Model | TBPB-9030A | TBPB-9050A | TBPB-9100A | TBPB-9200A | |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 | |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 | |
| Temperature Range | 50°C ~ 200°C | ||||
| Temperature Fluctuation | ± 1.0°C | ||||
| Temperature Resolution | 0.1°C | ||||
| Temperature Uniformity | ± 1.5% | ||||
| Shelves | 2 PCS | ||||
| Timing | 0~ 9999 min | ||||
| Power Supply | AC220V 230V 240V 50HZ/60HZ | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | ||||
Features:
• Precise temperature control system
• Uniform temperature distribution
• PID microcomputer digital display controller
• Forced air convection
General operation steps:
Here are operation procedures in a sealant curing oven :
• Place the materials onto shelves, and keep some distance between them
• Preheat the oven to the required temperature.
• Set temperature and baking time on the digital display.
• Monitor the temperature during the baking process.
• Once the curing time is complete, the oven stops working automatically, please only open the door when the interior temperature cools down to the ambient temperature.
It's important to note that some materials are sensitive to high temperature, so it's essential to follow the recommended baking temperature and time. Additionally, baked materials should be stored in a dry environment to prevent moisture from re-entering the drying process.
Application
Sealant curing ovens are widely applied in electronic manufacturing industry, due to its ability to provide accurate temperature control, uniform heat distribution, and reliable performance. Here are common applications of these ovens:
Bonding of Components
Sealant curing ovens are commonly used to bond components together using adhesives in manufacturing processes. This includes bonding of metal, plastic, composite, or ceramic parts in industries such as automotive, aerospace, electronics, and construction.
In the aerospace and marine industries, composite materials are also operated in these ovens, such as carbon fiber, fiberglass, and epoxy resin laminates. These materials are bonded together to create lightweight and high-strength structures.
Electronic Assembly
Sealant curing ovens are utilized in electronics manufacturing processes to cure adhesives used for bonding components on printed circuit boards (PCBs) or in semiconductor packaging applications.
Coating Curing
Sealant curing ovens may also be used to cure adhesive coatings applied to various substrates for protective or decorative purposes. These coatings may include paint, varnish, powder coatings, or UV-curable adhesives.
Overall, these ovens accelerate the curing process of adhesives, ensuring proper bonding and adhesion of materials, by providing controlled temperature environments.
