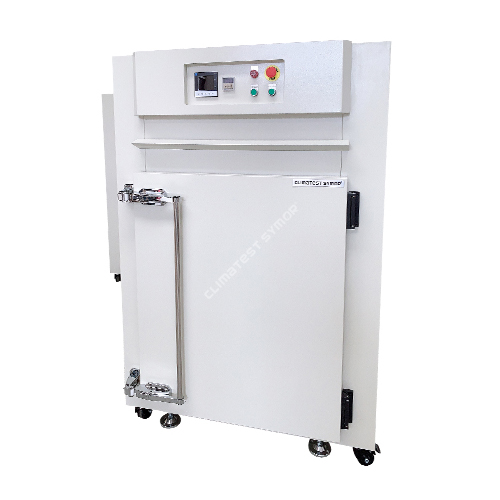

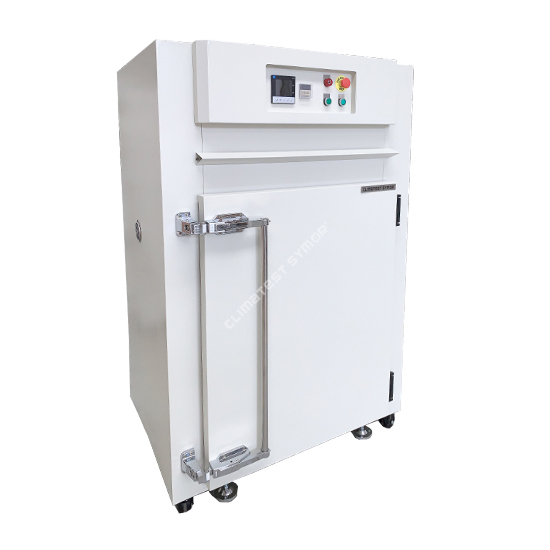

An industrial drying oven is used in various industries for drying, curing, heating, or processing materials or products. The oven provides controlled temperature environments to remove moisture, solvents, or other volatile substances from a wide range of materials.
These ovens are equipped with precise temperature control systems, that allow users to set and maintain temperature range within 50°C ~ 250°C.
Model: TBPG-9100A
Capacity: 90L
Interior Dimension: 450*450*450 mm
Exterior dimension: 795*730*690 mm
Description
Industrial drying ovens utilize forced air convection systems to ensure consistent heat distribution throughout the chamber, and feature digital controls allowing users to create custom drying cycles tailored to the specific requirements, there are adjustable shelves or racks where materials or products can be placed.
Specification
| Model | TBPB-9030A | TBPB-9050A | TBPB-9100A | TBPB-9200A | |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 | |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 | |
| Temperature Range | 50°C ~ 200°C | ||||
| Temperature Fluctuation | ± 1.0°C | ||||
| Temperature Resolution | 0.1°C | ||||
| Temperature Uniformity | ± 1.5% | ||||
| Shelves | 2 PCS | ||||
| Timing | 0~ 9999 min | ||||
| Power Supply | AC220V 230V 240V 50HZ/60HZ | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | ||||
Features:
• Precise temperature control system
• Uniform temperature distribution
• PID microcomputer digital display controller
• Forced air convection
General operation steps:
Here are operation procedures in an industrial drying oven :
• Place the materials onto shelves, and keep some distance between them
• Preheat the oven to the required temperature.
• Set temperature and baking time on the digital display.
• Monitor the temperature during the baking process.
• Once the curing time is complete, the oven stops working automatically, please only open the door when the interior temperature cools down to the ambient temperature.
It's important to note that some materials are sensitive to high temperature, so it's essential to follow the recommended baking temperature and time. Additionally, baked materials should be stored in a dry environment to prevent moisture from re-entering the drying process.
Application
Climatest Symor® strives to be an outstanding industrial drying oven manufacturer in China, our drying ovens find application in various industries for a wide range of processes. Here are some common applications of industrial drying ovens:
Electronic Assembly
Industrial drying ovens are utilized in electronics manufacturing processes to cure adhesives used for bonding components on printed circuit boards (PCBs) or in semiconductor packaging applications. This includes drying coatings, adhesives, ceramics, plastics, and composites.
Pharmaceuticals
Industrial drying ovens are utilized in pharmaceutical manufacturing processes for drying and processing pharmaceutical ingredients, granules, powders, and tablets.
Heat Treatment
Industrial drying ovens are used for various heat treatment processes, including annealing, tempering, stress relieving, and aging studies of materials.
Chemicals
In the chemical industry, industrial drying ovens are used for drying solvents, catalysts, polymers, resins, and other chemical compounds.
Industrial drying ovens play a crucial role in manufacturing processes, where drying, curing, or processing of materials or products is required. By providing controlled temperature environments, these ovens help to remove moisture or other volatile substances, greatly improving production efficiency.
