Dry Storage Cabinets for Automotive Parts

Description

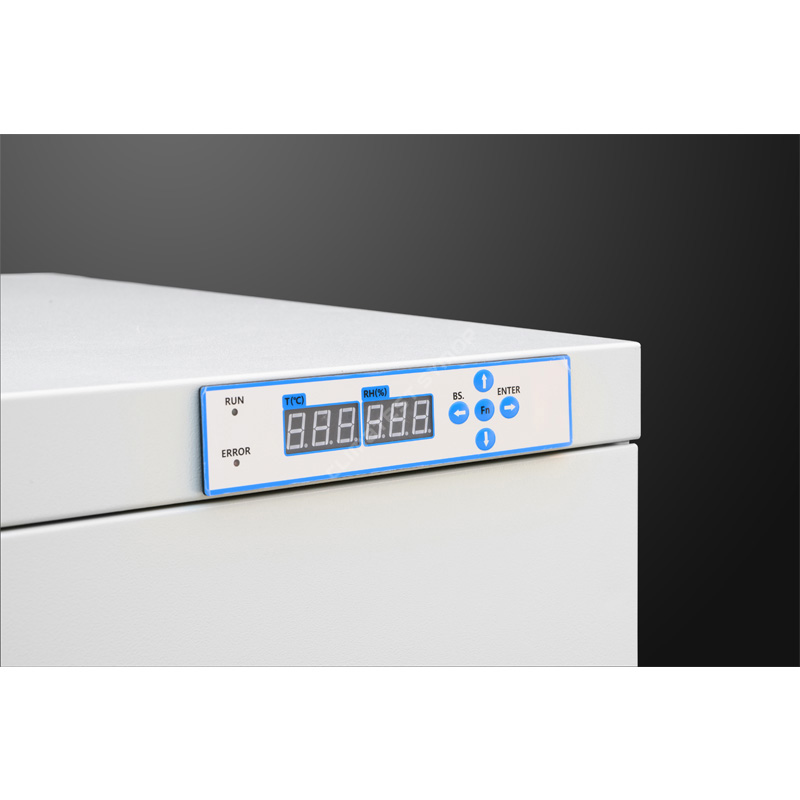

Climatest Symor® Dry Storage Cabinets for Automotive Parts are compact design with excellent performance, it suits different application, like laboratory, automotive parts, and any application requires low humidity storage, the system automatically absorbs moisture and discharges to outside, and rapidly return RH to the user’s setting value on LED controller, the whole process is silent and energy-saving.

Dry Storage Cabinets for Automotive Parts Specification

Mode# with F: ESD function, Dark Blue color.
Mode# without F: No ESD function, off white color

Dry Storage Cabinets for Automotive Parts Feature

·Adopts Switzerland original imported humidity & temperature sensor.

-This ensures high accuracy in use, the dry storage cabinets have memory function, no need to re-set after power failure.

·Made by 1.2mm thickness galvanized steel, with USA DuPont ESD painting.

-Reinforced structure design, excellent load-bearing, surface treatment with 18 painting processes, the static resistance value meets 10⁶ -10⁸Ω, also with strong corrosion resistance.

·3.2mm high intensity tempered glass window for better observation.

- Flat press zinc alloy lock, with perfect air tightness and anti-theft function, this dry storage cabinet sealing performance is excellent.

·With memory function, no need to re-set after power failure.

-The dry storage cabinet can automatically memorize the last setting value after power off, no need set again.

·Powerful dry unit with +15 years projected lifespan.

- The dry storage cabinet adopt 4A molecular sieve dry unit, the most advanced technique, it can be regenerated automatically, no need replacement.

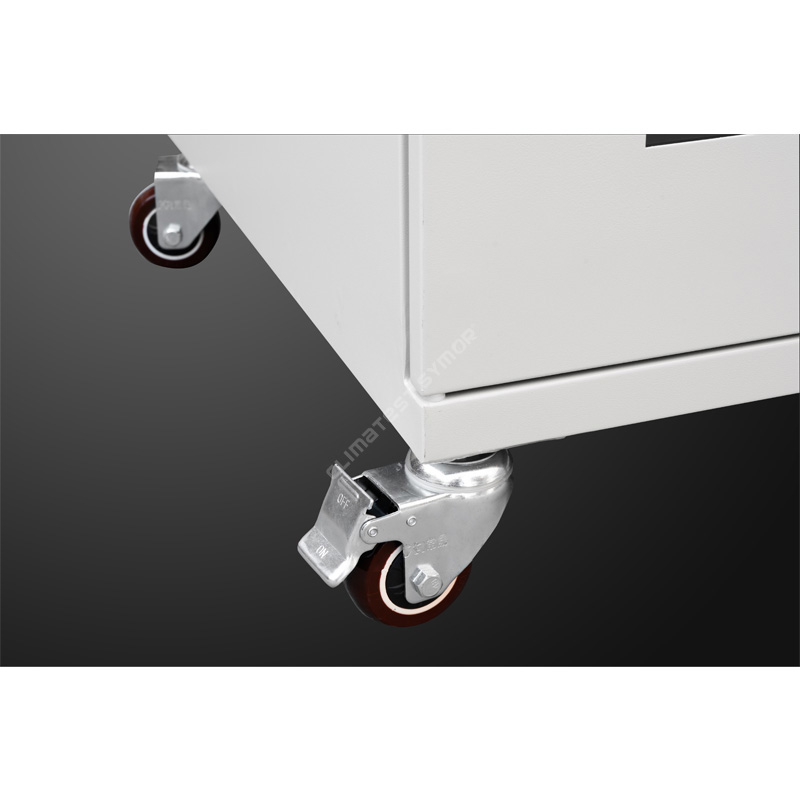

·Universal castors installed at bottom, ESD safe.

- Reinforced PU castors are installed at the bottom of dry storage cabinet, front two with brakes for easy move and stop.

Climatest Symor® dry storage cabinets for automotive parts

Climatest Symor® dry storage cabinet, is an enclosure with electronic humidity control that automatically maintains low relative humidity (RH) value, the dry storage cabinet comes in different sizes and shapes, it maintains <5%RH low humidity environment reliably, with precise RH control.
The dry unit is the core of the dry storage cabinet, it is made by synthetic desiccant, which is self generating, auto-dehumidifying, and maintenance free, this synthetic desiccant lifespan is + 15 years without replacement, there is no cooling drops, no desiccant bags, users just connect it to the power supply, and set RH value, it will automatically proceed dehumidify cycles, absorb and discharge RH intelligently, the whole process is safe and environmental.

Climatest Symor® dry storage cabinets use high accuracy Switzerland imported RH sensor, the sensor automatically controls the refreshing and recycling of the synthetic desiccant, the sensor deviation is +/- 2%RH, see below specification:

The dry storage cabinet just displays the real-time temperature inside for monitoring purpose,it uses high accuracy Switzerland imported temp. sensor, the sensor deviation is +/- 0.3 degree C, see below specification:

Dry storage cabinets application

Dry storage cabinet is the OPTIMAL storage solution for:
※ Automotive parts, like engine components, bearings, springs, plungers.
※ Pharmaceutical materials, like herbal medicine, pills, capsules, raw material.
※ Military weapons, precision instruments, museum, photos & lens.
※ Moisture-absorbing materials, such as epoxy, resins, adhesive

<5%RH Series dehumidifying speed:

Open door 30 seconds and then closed, the humidity will recover to <5%RH within 30 minutes,see below curve: (Ambient 25 degree C, humidity 60%RH)

WHAT ARE THE COMMON METHODS TO STORE HUMIDITY SENSITIVE COMPONENTS?

1.Desiccant bags
❊Method: The moisture sensitive components are packed in a enclosure, the traditional desiccant bags are also put inside the enclosure, it can absorb the moisture inside to keep a dry environment.
❊Disadvantage: Desiccant bag= consumables, RH control performance is bad, short time.

2.Nitrogen cabinets
❊Method: The moisture sensitive components are stored in nitrogen purge cabinets or compressed air to meet low humidity storage.
❊Disadvantage: Nitrogen filling = continuous N2 consumption, high cost.

3.Dry storage cabinets
❊Method: The moisture sensitive components are placed in a dry storage cabinet, just plug in, the machine will automatically work, and reach the setting value.
❊ Advantages: No consumables, no manual work, no nitrogen consumption, environmental, only a little bit of electricity needed.
From above comparison, dry storage cabinet brings you higher efficiency and lower cost, it is the most cost-effective choice in the long term.

We provide dry storage cabinets solutions to below industries:

Advantages of dry storage cabinets for automotive parts

For more details about dry storage cabinets for automotive parts, pls visit our website www.climatestsymor.com or directly send emails to sales@climatestsymor.com, we will get you back at quickest time, welcome for possible collaboration.
