The 500 deg C high temperature oven is an electric drying oven for industrial applications, with temperatures up to 500°C. The exterior oven is made of zinc steel, with an easy clean powder coated finish, the interior oven on all sizes are made of high grade, rust resistant stainless steel, the middle layer is fitted with high density thermal insulation to minimize heat loss and offer efficient running costs.
Model: TBPG-9030A
Capacity: 30L
Interior Dimension: 320*320*300 mm
Exterior dimension: 665*600*555 mm
Description
The 500 deg C high temperature oven adopts advanced heating technology and airflow system, this ensures uniform heat distribution throughout the oven chamber. The drying/baking ovens feature user-friendly digital control interfaces with programmable temperature cycles settings. This allows users to create custom heating cycles tailored to the specific requirements of their processes.
Specification
| Model | TBPW-9030A | TBPW-9050A | TBPW-9100A | TBPW-9200A |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 |
| Temperature Range | 100°C ~ 500°C | |||
| Temperature Fluctuation | ± 1.0°C | |||
| Temperature Resolution | 0.1°C | |||
| Temperature Uniformity | ± 1.5% | |||
| Shelves | 2 PCS | |||
| Timing | 0~ 9999 min | |||
| Power Supply | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | |||
Feature
►High temperature up to 400°C, 500°C, 600°C
►PID microprocessor based temperature controller
►Over temperature protection controller
►Uniform temperature distribution
►Optimized insulation minimizes heat loss
►Sheathed heating element
►Emergency mushroom button
Option
►Programmable temperature controller
►Nitrogen purging system
►Over temperature buzzer alarm
►Three-color flashing light alarm
►Communication with RS485 interface
500 deg C high temperature oven
The temperature of 500 deg C high temperature oven is between the traditional drying oven limit and the operating temperature of the furnace. Choose the ovens that best meet your requirements, from 400°C , 500°C to 600°C , and with right size at our specifications.

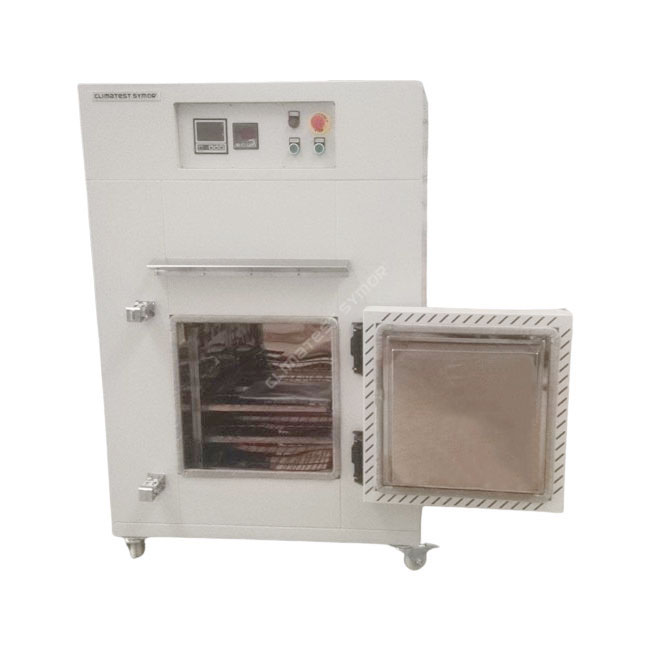

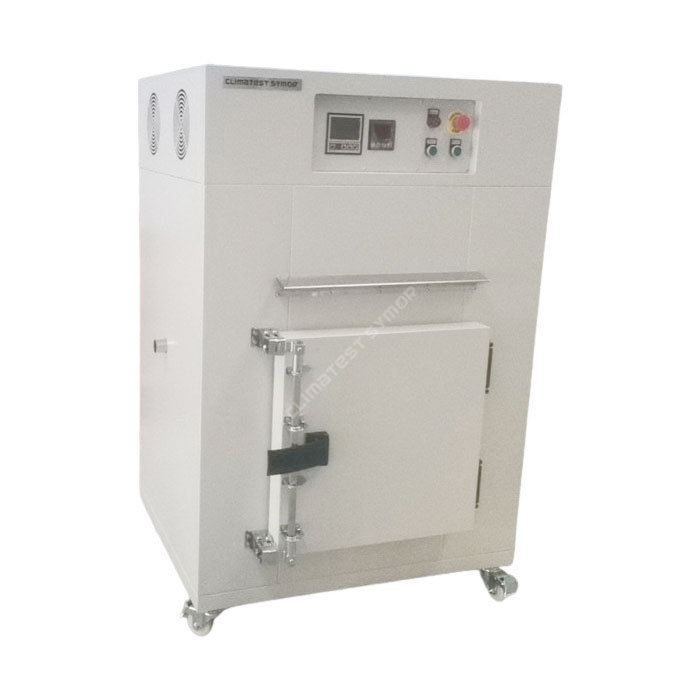

Each oven comes with a single hinged door and an explosion proof handle. The walls and doors are well insulated to reduce heat loss. The entire interior chamber/heating element/shelves are made of stainless steel 304. The adjustable air inlet and outlet circulation ports are provided.
The oven is provided with two perforated shelves, slots are located at both sides, the height is adjustable. The exterior oven is fabricated from galvanized steel with powder coated finish. The control panel is on the top of the oven.
Our standard controller is digital display, programmable controller is optional, it has auto-tuning and settable ramp rate function, this feature provides precise and stable control from the power-on moment.
For operation on 380VAC, 50/60HZ, 400V or 415V, 480V are also available.
Benefits
Improved Efficiency: High temperature ovens accelerate processing times for heat treatment, drying, curing, and other thermal processes. Their ability to reach and maintain high temperatures reduces processing time, thereby improving production efficiency and research workflows.
Quality Assurance: High temperature ovens ensure the quality and reliability of manufactured products, the ovens enable precise control over critical thermal processes. This quality assurance is essential in industries where material properties and product performance are paramount, such as aerospace, automotive, and electronics.
Cost Savings: By optimizing processing parameters and reducing cycle times, high-temperature ovens contribute to cost savings in production processes. Improved efficiency, enhanced material properties, and reduced energy consumption translate into lower manufacturing costs and higher profitability.
Application
Climatest Symor® is dedicated to becoming an excellent manufacturer of industrial high temperature ovens in China, our ovens find application in various industries. Here are some common applications:
Drying and Curing
Industries involved in coatings, paints, adhesives, and other surface treatments require high-temperature ovens for drying and curing processes. These ovens accelerate the evaporation of solvents and promote cross-linking reactions, ensuring proper adhesion and finish of the applied coatings.
Chemical Synthesis
In chemical industries and research laboratories, high temperature ovens are utilized for synthesizing chemical compounds, catalyst activation, and thermal decomposition reactions. These ovens provide the necessary conditions for driving chemical reactions at elevated temperatures.
Laboratory Research
High temperature ovens are indispensable instruments in scientific research laboratories. They are used for various experiments and analysis requiring controlled high temperatures, such as studying material properties, conducting thermal decomposition studies, and synthesizing new materials.
500°C high temperature oven span across various industries, including metallurgy, ceramics, polymers, chemicals, electronics, and research, where precise temperature control is essential for material processing, synthesis, and experimentation.
