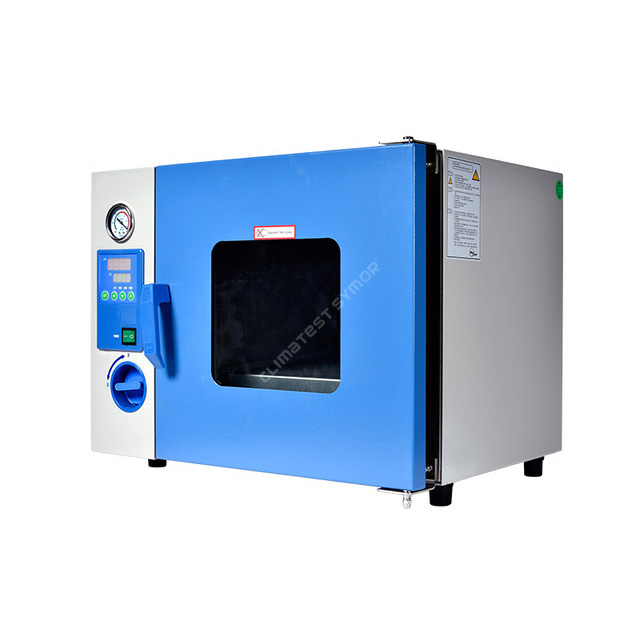

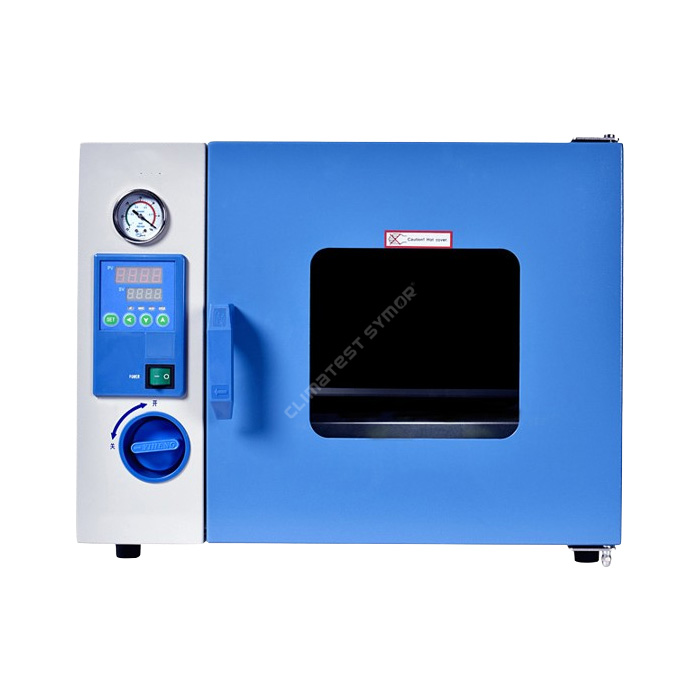

Climatest Symor® vacuum drying oven is used for drying, curing, annealing, and de-gassing of materials under controlled vacuum conditions. The vacuum oven usually consists of a vacuum chamber, heating elements, temperature controller, and a vacuum pump. It is designed to take up less space and more portability, making it suitable for smaller laboratories and research institutions.
Model: TZF-6050
Capacity: 50L
Interior Dimension: 415*370*345 mm
Exterior dimension: 720*515*535 mm
Description
The vacuum drying oven is designed to dry heat sensitive, easy to decompose, easy to oxidize substances, suitable for heat treatment under vacuum conditions, such as desoaming, dehydration, curing and drying electronic products. This oven offers maximum temperature to 200°C and a vacuum control to 133 Pa, and available in five different sizes with volumes ranging from 20 to 250 liters.
Specification
| Model | TZF-6020 | TZF-6030 | TZF-6050 | TZF-6090 | TZF-6250 |
| Power Consumption | 500W | 800W | 1400W | 2400W | 4000W |
| Capacity | 20L | 30L | 50L | 90L | 250L |
| Interior Dim.(W*D*H)mm | 300*300*275 | 320*320*300 | 415*370*345 | 450*450*450 | 700*600*600 |
| Exterior Dim.(W*D*H)mm | 610*445*470 | 630*460*500 | 720*515*535 | 755*595*720 | 1225*765*890 |
| Temperature Range | RT+10°C ~ 200°C | ||||
| Temperature Fluctuation | ± 0.5°C | ||||
| Temperature Resolution | 0.1°C | ||||
| Vacuum Degree | 133 Pa | ||||
| Vacuum Gauge | Mechanical needle | ||||
| Shelves | 1PC | 2PCS | 3PCS | ||
| Power Supply | AC220V 50HZ | AC380V 50HZ | |||
| Ambient Temperature | +5°C~ 40°C | ||||
Options
. Programmable temperature controller
. Inert gas valve
. Vacuum pump 2XZ-2/2XZ-4
. Dry filter
Features
►Stainless Steel Inner Chamber
The inner chamber is made of stainless steel SUS304, providing durability and easy cleaning with good thermal resistance. The height-adjustable shelves enable more effective contact area and high heat conductivity, it’s 40% higher heat transfer efficiency than traditional methods.
►Jacketed Heating Technology
The vacuum curing oven is heated using a 4-sided jacket radiant technology, the heat is radiated into the inner chamber through the wall to realize uniform temperature distribution.
►Temperature control system
Intelligent PID temperature controller, constant temperature control mode, auto-tuning. Temperature output power is calculated by micro computer to achieve high efficiency and high precision. Equipped with over-temperature alarm protection function to ensure the operation safety.
►Inert Gas Intake Valve (opional)
The diameter 8mm hose and labor-saving electromagnetic valve allow the safe introduction of inert gas or ambient air into the chamber to meet the requirements of inert gas drying, anti-oxidization, cleaning interior moisture, or discharging vacuum.
What is the main benefit of using vacuum drying instead of oven drying?
Reduced Oxidation: Vacuum drying is the ideal method for drying thermal and/or oxygen sensitive materials, due to the advantage of removing moisture at low temperatures and minimizing the possibility of oxidation reactions.
Faster Drying Times: Vacuum drying can accelerate the drying process by lowering the boiling point of water or solvents, effectively speeding up evaporation. This leads to shorter drying times and increased productivity, making it particularly advantageous for industries where rapid processing is essential.
Reduced Risk of Contamination: Vacuum drying minimizes the risk of contamination by removing air and other gases from the drying chamber. This is particularly important in industries where product purity is critical, such as pharmaceuticals, where contamination can compromise product safety and efficacy.
Why choose vacuum drying oven from Climatest Symor®?
Climatest Symor® new generation vacuum drying oven breaks through the traditional technology and creatively solves the "bottleneck" in thermal conduction process, and finds the perfect heat conduction method.
Climatest Symor® adopts advanced facilities to manufacture industrial ovens, such as AMADA sheet metal machine, CNC bending machine, CNC cutting machine, high precision plate cutting machine; Japan imported gas welding, and argon arc welding machine.
Climatest Symor® vacuum drying ovens have competitive prices, we concentrate on temperature control technology, we are familiar with various applications in electronics, automotive and chemical industries, we’ve been recognized by well-known customers worldwide, such as DuPont, Chemours, Foxconn, Wistron, IMI, SCHMID, and more. Our senior technical engineers can provide you with the best technical solutions to solve the temperature-related manufacturing processes.
Climatest Symor® vacuum drying oven uses
Application
Climatest Symor® is committed to becoming an excellent manufacturer and supplier of industrial vacuum drying ovens in China, and our oven can be widely used in the following industries:
Electronics Manufacturing: Vacuum drying oven plays a crucial role in the electronics industry for drying electronic components, circuit boards, and assemblies after cleaning processes to prevent corrosion and ensure product reliability. The controlled drying conditions help minimize the risk of damage to sensitive electronic materials.
Chemical Processing: vacuum drying oven is used for accelerating the curing process of various materials such as adhesives, resins, silicon gel, and coatings.
Materials Science: Vacuum drying oven is utilized in materials science research and manufacturing for drying polymers, composites, ceramics, and other advanced materials. The uniform drying and gentle processing conditions are beneficial for preserving the structural and mechanical properties of these materials.
De-gassing: Removing trapped gases from materials, which is crucial in processes like casting and polymerization.
Climatest Symor® vacuum drying oven offers a versatile and efficient solution for various industries requiring gentle and controlled drying processes for sensitive materials.
