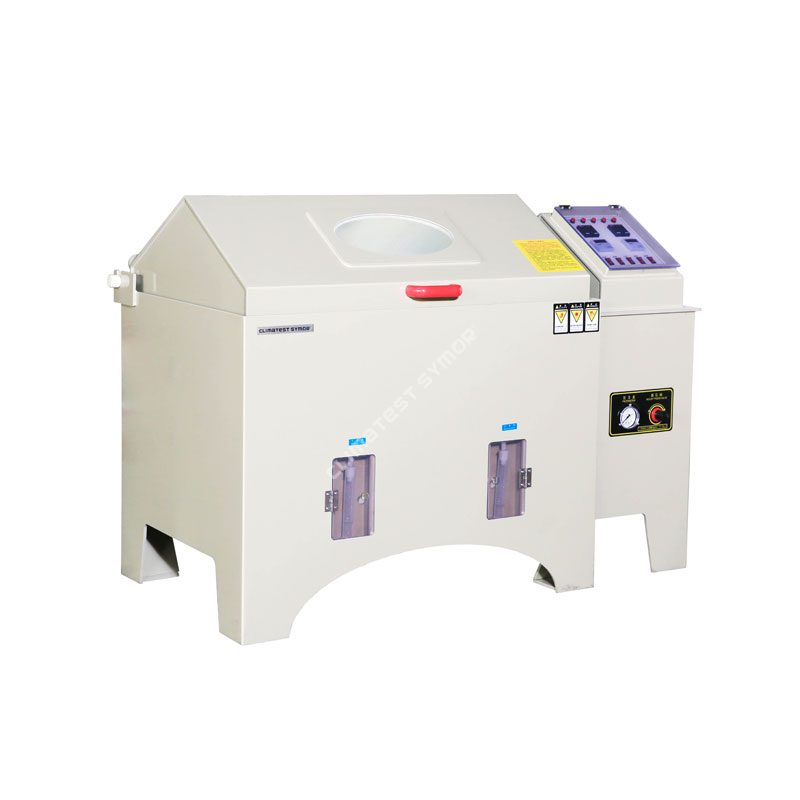

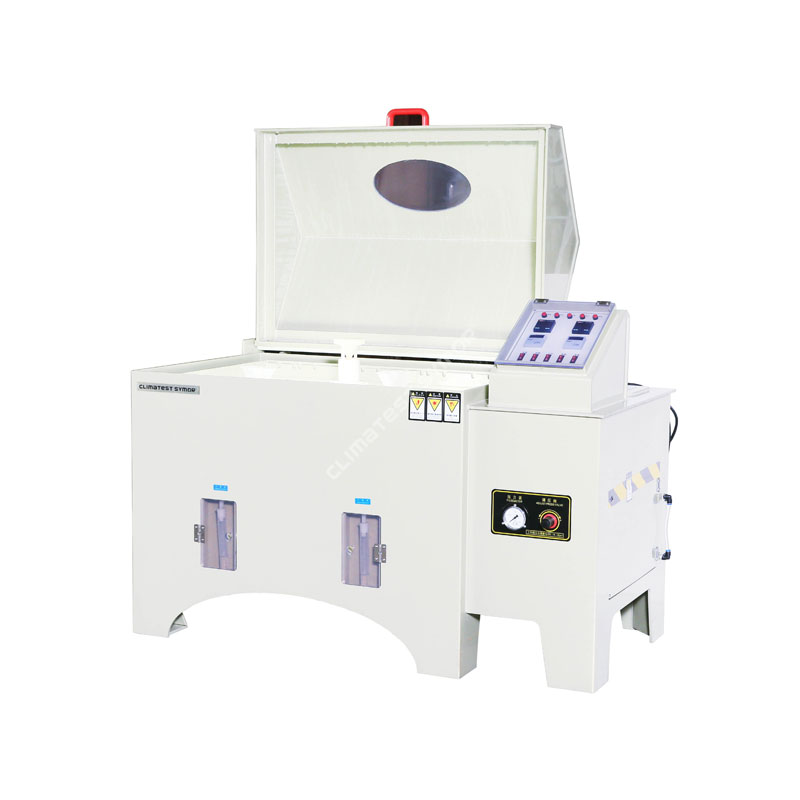

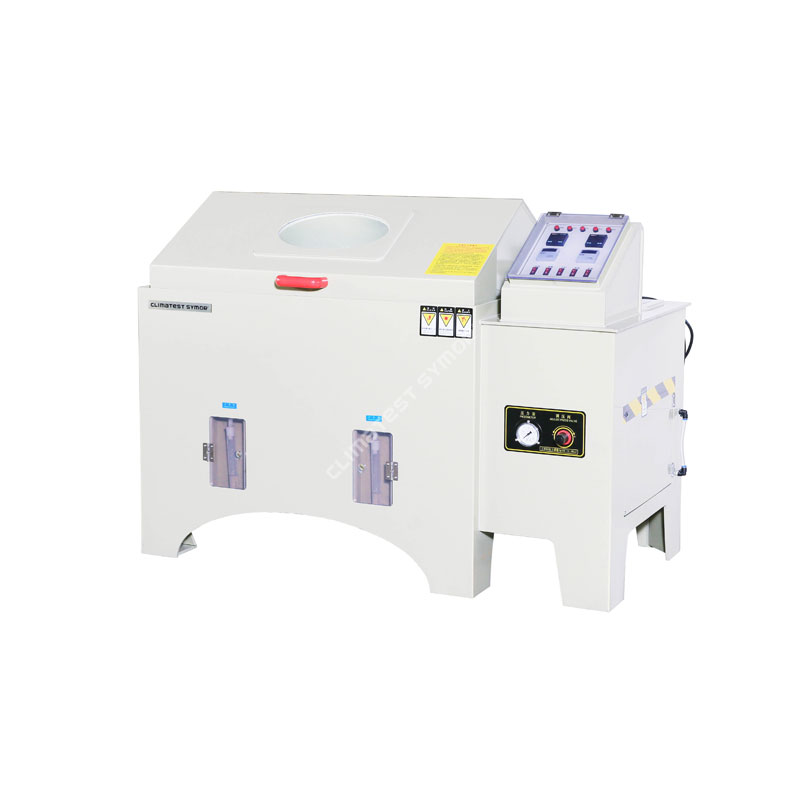

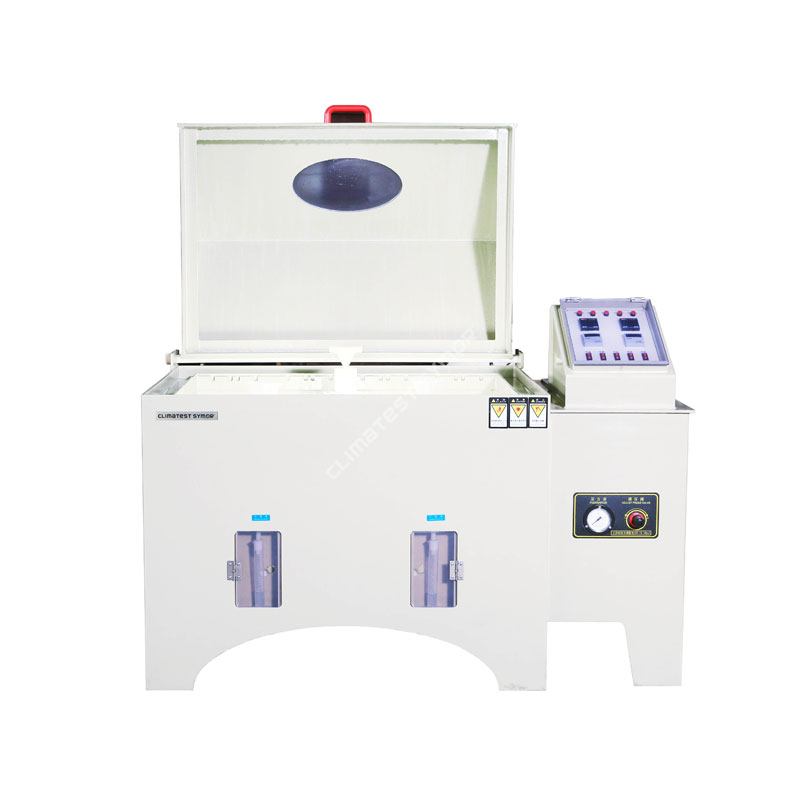

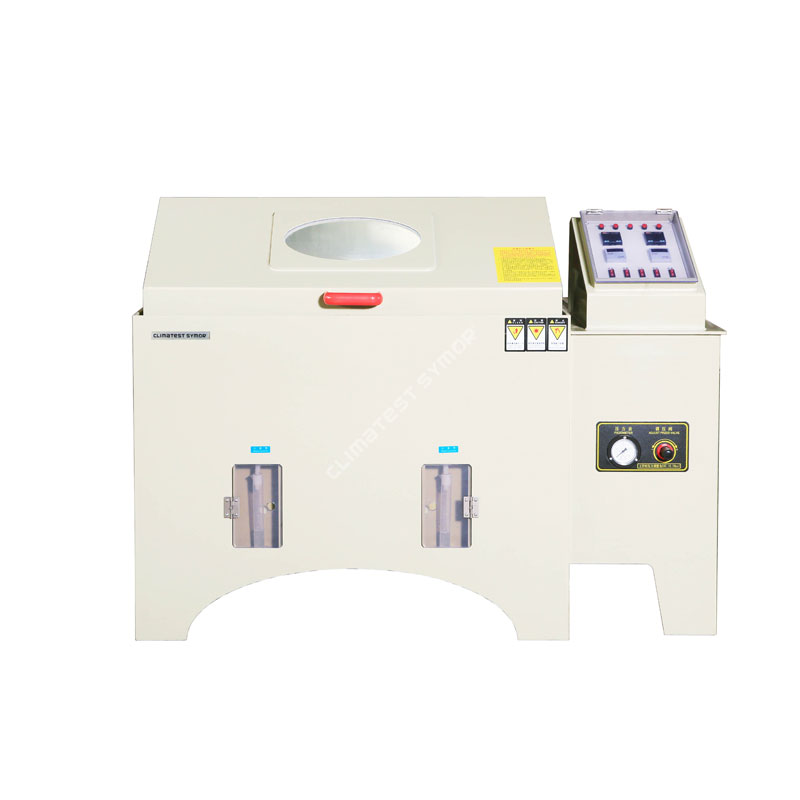

Salt Spray Machine

Climatest Symor® salt spray machine, or salt fog test machine, is used to simulate and evaluate the corrosion resistance of materials and coatings. By exposing specimen to a controlled environment of salt mist or salt fog, the chamber accelerates the corrosion process and allows for the assessment of the samples’ performance in corrosive environments.

Model: TQ-250
Capacity: 250L
Interior Dimension: 900600500 mm
Exterior Dimension: 14008501200 mm

Send Inquiry

Product Description

Salt spray test machine is able to test the corrosion resistance of materials and coatings. The test is performed by exposing the samples to a salt spraying environment. The results of the test are then used to assess the corrosion resistance and durability of the materials or coatings.

Specification

Model	TQ-150	TQ-250	TQ -750	TQ-010	TQ-016	TQ-020
Interior Dimension (WDH, MM)	600450400	900600500	1100750500	1300850600	1600850600	2000900600
Exterior Dimension (WDH, MM)	11505601100	14008501200	16509501300	200011001400	240011501500	280012001500
Capacity	108L	270L	495L	663L	816L	1080L
Temperature Range	NSS, ACSS: 35°C±1.0°C / CASS: 50°C±1.0°C
Satuation Barrel Temp.	NSS, ACSS: 47°C±1.0°C / CASS: 63°C±1.0°C
Salt Solution Temp.	35°C±1.0°C
Temp. Uniformity	≤2°C
Temp. Fluctuation	± 0.5°C
Salt Mist Deposition	1~2 ml / 80cm2
Spraying Mode	Continuous,periodic (Alternative)
Timing	1~9999(H,M,S), adjustable
Spraying System	Tower-type spraying device, non crystallization nozzles Nozzle made by special glass to spread mist evenly, continuous use of 4000 hours without crystallization.
Controller	LED controller
Interiorl Material	Reinforced high-intensity PP plates, corrosion resistant, high temperature resistant, aging resistant
Exterior Material	Reinforced high-intensity PP plates, corrosion resistant, high temperature resistant, aging resistant
Tank Cover Material	High-intensity PVC or PP plate, corrosion resistant
Sealing	Watertight sealing structure without salt mist overflow
Safety Devices	Over-temperature, default phase protection, water shortage protection
Std Configuraton	Spraying tower, V-shaped specimen shelf, round bar, funnel, measuring cup
Supply Voltage	AC220V·50HZ/380V·50HZ
Ambient Condition	+5～30℃

Meeting standards: IEC 60068, ISO 9227, ASTM B287, ASTM G85 A1, ASTM B368, JISZ 2371, DIN 50021, not limited to.

Complied Tests:

Neutral Salt Spray Test (NSS)

Acetic Acid Salt Spray Test (AASS)

Copper Accelerated Acetic Acid Salt Spray Test (CASS)

Climatest Symor® salt spray test machines feature:

Salt spray test machine is designed to provide a controlled and repeatable environment, for testing corrosion resistance of components or materials. The cabinet provides accurate temperature & humidity control, as well as uniform spray of saline solution. It also comes with a range of features, including:

• Digital display: To monitor and control temperature, humidity, and salt spray output.

• Corrosion-resistant structure: Salt Spray Machine is typically constructed from corrosion resistant materials, such as PP or PVC.

• Tower-type spraying nozzle: A special glass nozzle dispenses a fine mist of salt solution onto the test specimens, 4000 hours continuous spraying withour crystallization.

• Safety protection: Salt Spray Machine has safety devices, such as over-temperature protection, automatic shut-off systems to ensure safe and reliable operation.

What does salt spray test machine do?

A salt spray test machine can simulate the corrosive effects of salt water on materials. Specimen are exposed to a mist of salty water, which is then allowed to dry and form a salty film on the surface. The specimen is then placed in a humidity-controlled environment to allow the salt to continue to corrode the surface of the specimen and to observe the effects of the corrosion. This type of testing is able to evaluate the corrosion resistance of materials in a marine environment.

The test helps to determine the ability of materials to resist corrosion in different environments. It is also used for evaluating the effectiveness of protective coatings and finishes applied to materials. It is a very important test in industries where corrosion protection is essential.

How to use salt spray test machine?

To use salt spray testing, the sample material is first mounted on a specimen holder in a salt spray chamber. The chamber is then filled with a salt solution and the sample is exposed to the salt solution for a certain period of time. During this exposure, the sample is tested for the appearance of corrosion or other signs of degradation. If corrosion occurs, the severity and type of corrosion can be determined. The results of the salt spray test can then be used to evaluate the effectiveness of a corrosion protection system.

Benefits from Climatest Symor® salt spray test machine

The benefits that you can get from Climatest Symor® salt spray test machine include:

1. Ensuring product reliability: This type of testing allows manufacturers to ensure that their products can withstand extreme temperatures, which can help ensure the quality and reliability of their products.

2. Improving product safety: Temperature shock testing can help to reduce the risk of product failure due to sudden temperature changes, which can lead to improved safety for both users and the environment.

3. Cost saving: By testing products in a temperature shock chamber, manufacturers can save money on product testing, as they can test many products at once and use fewer resources in the process.

4. Increasing customer satisfaction: By ensuring that their products meet quality and reliability standards, manufacturers can increase customer satisfaction, leading to increased sales and profit.
