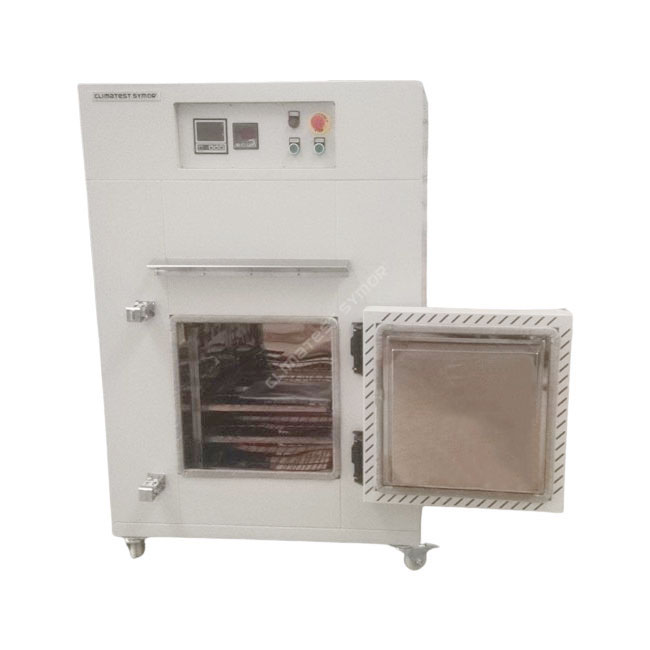

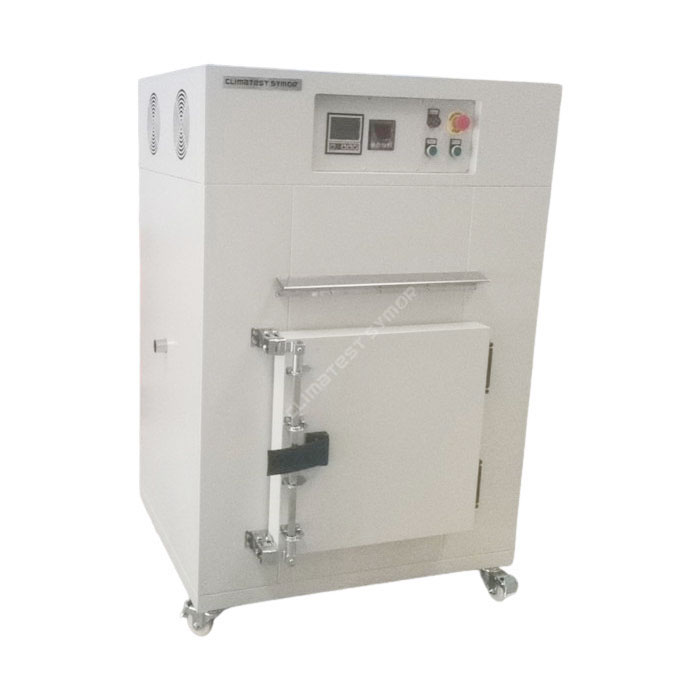

High temperature forced convection oven is mainly used for drying, baking, sintering, thermal curing, heat treatment, quenching and high temperature test in semiconductor, electronic manufacturing, coating, universities, scientific research and other fields. The oven is produced in 4 standard sizes, with the maximum temperature to 600°C.
Model: TBPZ-9050A
Capacity: 50L
Interior Dimension: 350*350*400 mm
Exterior dimension: 695*635*635 mm
Description
High temperature forced convection oven is a new type of industrial drying oven, using long shaft, high temperature resistance, high power flow fan, stainless steel turbine blade and NiCr heater, combined with the unique air duct design, in intelligent PID temperature controller and SSR solid state relay control, forming an uniform high temperature hot air.
Specification
| Model | TBPZ-9030A | TBPZ-9050A | TBPZ-9100A | TBPZ-9200A |
|
Interior Dimension (W*D*H) mm |
320*320*300 | 350*350*400 | 450*450*450 | 600*600*600 |
|
Exterior Dimension (W*D*H) mm |
665*600*555 | 695*635*635 | 795*730*690 | 950*885*840 |
| Temperature Range | 100°C ~ 600°C | |||
| Temperature Fluctuation | ± 1.0°C | |||
| Temperature Resolution | 0.1°C | |||
| Temperature Uniformity | ± 1.5% | |||
| Shelves | 2 PCS | |||
| Timing | 0~ 9999 min | |||
| Power Supply | AC380V 400V 415V 480V 50HZ/60HZ | |||
| Ambient Temperature | +5°C~ 40°C | |||
Main Parameters
1. Structure
1.1 Interior oven: Stainless steel argon arc welding, pollution prevention, easy to clean.
1.2 Exterior oven: Powder-coated cold rolled steel, rust resistant.
1.3 Thermal insulation: 100K advanced insulation glass fiber, good insulation performance.
1.4 Racks: Stainless steel, height is adjustable according to your products dimension, space-saving.
2. Temperature control system: Intelligent temperature controller, constant temperature control mode, PID automatic calculation, with sensor cable break alarm function, with over-temperature alarm protection function, to ensure the operation safety.
3. Hot air circulation
3.1 Air supply mode: Vertical or horizontal
3.2 Air duct design: High density punching air plate is used on the air duct, to ensure the temperature uniformity inside the oven.
3.3 Air supply device: Using high-power, high-temperature resistant, long shaft silent motor + stainless steel turbine blade, the turbine is treated by horizontal correction to ensure smooth air transport.
3.4 Safety protection of air supply device: with over temperature, overload and over current protection functions to ensure the service life and safety performance of motor and fan.
4. Heating system: Stainless steel dust-free NiCr heating elements, no leakage, safe and no dust.
5. Protection devices
5.1 Over temperature protection
5.2 Internal electrical protection
5.3 Phase sequence protection
5.4 Motor over-current protection
5.5 Fuses protection
Options
►Programmable temperature controller
►Nitrogen purging system
►Lead hole Φ50mm
►PLC control
►Three-color flashing light alarm
Benefits
Quality Assurance: High temperature forced convection ovens ensure the quality and reliability of manufactured products, the ovens enable precise control over critical thermal processes. This quality assurance is essential in industries where material properties and product performance are paramount, such as aerospace, automotive, and electronics.
Improved Efficiency: High temperature forced convection ovens accelerate processing times for heat treatment, drying, curing, and other thermal processes. Their ability to reach and maintain high temperatures reduces processing time, thereby improving production efficiency and research workflows.
Cost Savings: By optimizing processing parameters and reducing cycle times, high temperature forced convection ovens contribute to cost savings in production processes. Improved efficiency, enhanced material properties, and reduced energy consumption translate into lower manufacturing costs and higher profitability.
Why choose high temperature forced convection oven from Climatest Symor®?
Climatest Symor® is a high temperature forced convection ovens manufacturer in China, we are good at design, manufacture and serve industrial ovens at competitive prices, the ovens offer fast responsive 600°C continuously operating chambers, and available in 4 different standard sizes, we can customize them for your products application.
Climatest Symor® focuses on temperature control technology, we are familiar with electronics, automotive, chemical and various industrial applications, we wins the recognition of many big customers in the world, such as DuPont, Chemours, Foxconn, Wistron, IMI, SCHMID, and more. Our senior technical engineers provide you optimal solutions to solve temperature related problems in different process stages of drying & heat treatment.
Climatest Symor®adopts advanced facilities to manufacture high temperature industrial ovens, such as AMADA sheet metal equipment, CNC bending machine, CNC cutting machine, high precision plate cutting machine; Japan imported gas welding, and argon arc welding machine.
Climatest Symor® makes timely delivery of drying ovens, electronic dry cabinets and environmental test chambers to worldwide customers, for products within the warranty period, we offer a free replacement parts service within 24 hours. Climatest Symor® has built long-term partnership with our distributors in Malaysia, Singapore, Vietnam, India, Israel, Brazil and Africa, and also many end users in Europe, North Amercia, we provide them lifetime technical support for free even after warranty period, welcome to reach us for possible collabration.
Application
Climatest Symor® makes efforts to become an outstanding manufacturer of high temperature forced air convection ovens in China, there are a variety of applications in the following industries.
Drying and Curing
Industries involved in coatings, paints, adhesives, and other surface treatments require high temperature forced air convection ovens for the drying and curing processes. These ovens accelerate evaporation of solvents, facilitate cross-linking reactions, and ensure proper adhesion and coating.
Chemical Synthesis
In chemical industries and research laboratories, industrial high temperature forced air convection ovens are used to synthesize chemical compounds, catalyst activation, and thermal decomposition reactions. These ovens provide the necessary conditions to drive the chemical reactions at high temperatures.
Laboratory Research
High temperature forced air convection ovens are indispensable instruments in scientific research laboratories. They are used in various experiments and analysis required to control high temperatures, such as studying material properties, conducting thermal decomposition studies, and synthesizing new materials.
600°C Industrial high temperature forced air convection ovens are widely applied in various industries, including metallurgy, ceramics, polymers, chemicals, electronics, and research, in which precise temperature control is essential for material processing, synthesis, and experimentation.
