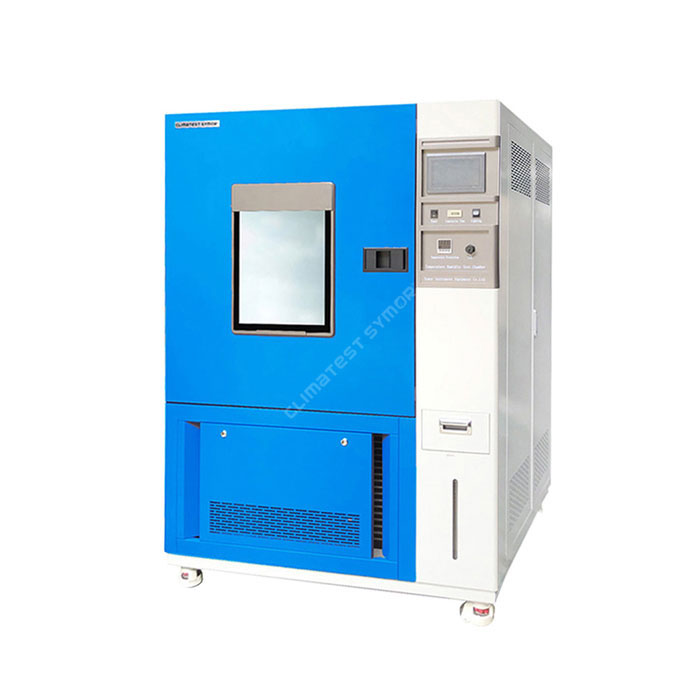

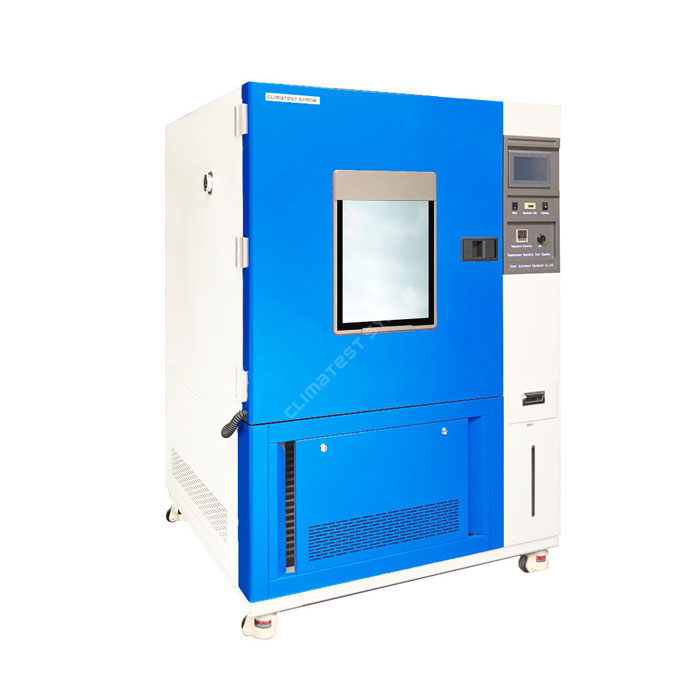

Climate Chamber Humidity Temperature

The temperature and humidity conditions inside the chamber are precisely controlled and maintained, allowing the user to simulate a range of environmental conditions, such as high humidity, extreme temperatures, and other conditions that may affect the performance and reliability of the product being tested. You can click below video to learn details:

Specification

Safety protection:

·Independent temperature limiter: An independent shutdown and alarm for thermal protection purpose during the test.

·Refrigeration system: Over-heat, over-current and over-pressure protection of compressor.

·Test chamber: Over-temperature protection, overheat of fan and motor, phase failure/reverse, timing of the entire equipment.

·Others: Leakage and outage protection, overload fusing protection, audio signal alarm, power leakage protection, and overload protection.

Temperature and humidity curve:

What is the structure of climate chamber humidity temperature for environmental testing

The structure of a climate chamber humidity temperature varies depending on the manufacturer and model, but typically consists of the following main components:

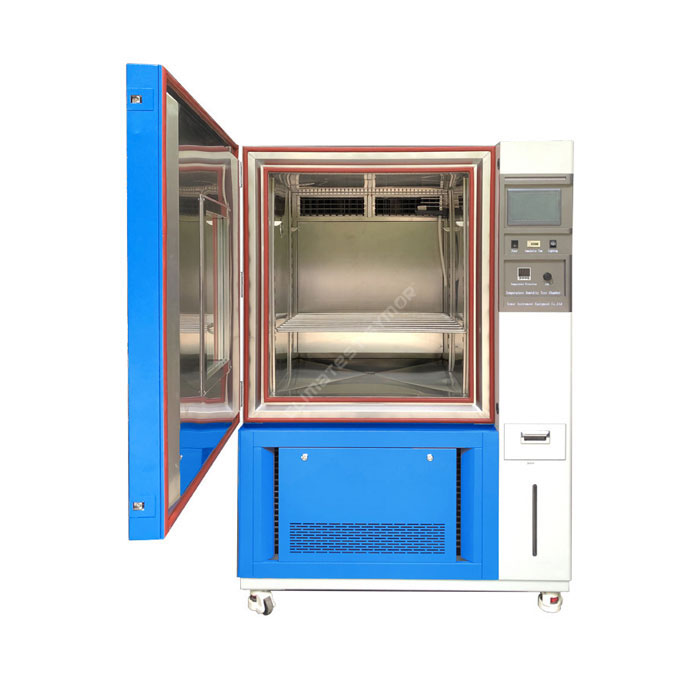

1. Working Chamber: This part is used to create a controlled environment for testing. The chamber is typically made of stainless steel SUS#304 that are durable enough to withstand the extreme temperature and humidity conditions inside.

2. Insulation: To maintain temperature and humidity levels, the chamber is typically insulated with materials such as fiberglass or polyurethane.

3. Heating and cooling system: This system adopts forced air convection to perform heating and cooling tests. To realize temperature humidity control, the test chamber should be able to carry out two functions: heating and cooling, uniform temperature also must be evenly distributed inside the working chamber, Climatest Symor® makes it possible to achieve a high degree of temperature uniformity in the whole testing area.

Climate chamber humidity temperature adopts mechanical cooling system and mechanical heating system to conduct testings on products:
Mechanical heating system consists of electric heating elements positioned near the ventilation system, so that the heated hot air is delivered into the testing zone from air inlet, then come out from air outlet, meanwhile, there are centrifugal fans located at the back of the air inlet, so as to blast the hot air to reach better uniformity.

Mechanical cooling system consists of a closed circuit system, with the following main components:

·Control valve

·Condensor

·Evaporator

·Compressor

The refrigeration system in a thermal test chamber is classified to be single stage and double stage, the single stage is adopted with temperature -40℃ and above, and double stage (also called cascade system) is with temperature below 40℃.

4.Humidity control system: The humidity control system is used to control the humidity inside the chamber. This system can include humidifying and dehumidifying systems.

5. Control panel: The control panel is used to operate the test chamber. It typically includes a display for temperature and humidity readings, as well as buttons or knobs for adjusting the temperature and humidity levels.

Programmable LCD touch screen controller:

·7 inch Japan programmable touch screen controller

·Set temperature point under fix value mode or programs mode

·Temperature set point and realtime temperature curve display ·100 groups program with 999 segment memory; each segment 99Hour59Min

·Test data can be downloaded as required through RS232 interface

6. Sample holders: Sample holders are used to securely hold the products or materials being tested inside the chamber. These can be shelves, trays, or other types of holders, depending on the size and type of the products being tested.

7. Door: The door of the test chamber is used to access the interior. The door should be sturdy, airtight, and able to withstand the temperature and humidity conditions inside the chamber.

These are the main components of a constant temperature and humidity test chamber. The exact design and structure of the chamber can vary depending on the manufacturer and model, but these components are typically present in most models.

What is the price of a climate chamber humidity temperature?
Climate chamber humidity temperature can vary widely depending on several factors, such as the size of the chamber, the type of controls and features, and the manufacturer. It's important to consider not only the purchase price of the chamber, but also the long-term costs of operating and maintaining the chamber, including electrical usage, replacement parts, and servicing.
Ultimately, the cost of a constant temperature and humidity climatic test chamber will depend on the specific requirements of your application, and it's essential to carefully evaluate your needs and budget to determine the right chamber for your needs.

What is the application of a climate chamber humidity temperature?

Climate chambers with controlled temperature and humidity are widely used for testing and evaluating the performance of materials, components, and products in various industries, including:
1.Electronics: Climate chambers are used to test the reliability of electronic components, such as semiconductors, circuit boards, and displays, under various temperature and humidity conditions.
2.Automotive: Climate chambers are used to test the durability and reliability of automotive components, such as engines, transmissions, and braking systems, under various temperature and humidity conditions.
3.Aerospace: Climate chambers are used to test the performance and reliability of aerospace components, such as engines, avionics, and landing gear, under extreme temperature and humidity conditions.
3.Medical Devices: Climate chambers are used to test the performance and reliability of medical devices, such as implantable devices, diagnostic equipment, and disposable products, under harsh temperature and humidity conditions.
4.Materials Science: Climate chambers are used to test the performance and reliability of materials, such as plastics, metals, and composites, under different temperature and humidity conditions.
In these industries, the use of climate chambers helps to ensure that products will perform reliably and consistently under different environmental conditions, and helps identify any potential problems before the product is released to the market.
In addition to product testing, climate chambers are also used for environmental stress screening, accelerated aging, and failure analysis. These chambers play an important role in ensuring product quality and reliability in many industries, and are an essential tool for product development and testing.

Packaging & shipment of a climate chamber humidity temperature

The packaging and shipment of a constant temperature and humidity test chamber can impact its safety and performance. Proper packaging and shipment are important to prevent damage during transportation and ensure that the chamber arrives at its destination in good condition. Here are Climatest Symor® general guidelines for packaging and shipping a constant temperature and humidity test chamber:
1.Packaging materials: Use high-quality, shock-absorbing materials, such as foam or bubble wrap, to protect the chamber during transportation. You may also want to use a sturdy shipping crate to further protect the chamber.
2.Handling: The chamber is handled with care to prevent damage. It's important to use the right equipment, such as a forklift or pallet jack, to lift and move the chamber.
3.Labeling: Clearly label the chamber with "Fragile" and "This Side Up" stickers to ensure that it is handled with care during transportation.
4.Shipping method: The chamber is shipped by sea, Climatest Symor® team makes vessel booking in advance according to the size, weight, and destination of the chamber, the local transport is normally a truck.
It's important to work with a reliable and experienced shipping company to ensure that the constant temperature and humidity test chamber is packaged and shipped properly. Proper packaging and shipment can help ensure that the chamber arrives at its destination in good condition and is ready for use.

How to install a climate chamber humidity temperature?

Installing a temperature and humidity controlled climate chamber requires a few steps to ensure proper operation and safety.
Here is a general outline of the process:
•Choose a location: Select a room that can accommodate the size of the climate chamber and that has access to electrical power and ventilation.
•Prepare the floor: Make sure the floor can support the weight of the climate chamber and is level to prevent tipping.
• Assemble the chamber: Follow the manufacturer's instructions to assemble the climate chamber, including connecting any electrical components.
• Install the power supply: Connect the climate chamber to a power source that can handle the electrical requirements of the chamber. Make sure to use a properly rated circuit breaker and power cord.
•Connect the ventilation: Make sure the climate chamber has proper ventilation to remove excess heat and moisture.
•Install temperature and humidity controls: Connect the temperature and humidity controls to the climate chamber and calibrate them according to the manufacturer's instructions.
•Test the system: Turn on the climate chamber and check that it is functioning properly. Monitor the temperature and humidity levels and make any necessary adjustments.
A: ≥60cm B: ≥60cm C: ≥120cm
Attention: inclination should not exceed 15°C
